66 12 515 Replace antenna for remote radio control: Notes

Remove trim panel from trunk floor, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF)

Remove antenna cable from control unit. Unfasten adhesive strips and remove antenna cable.

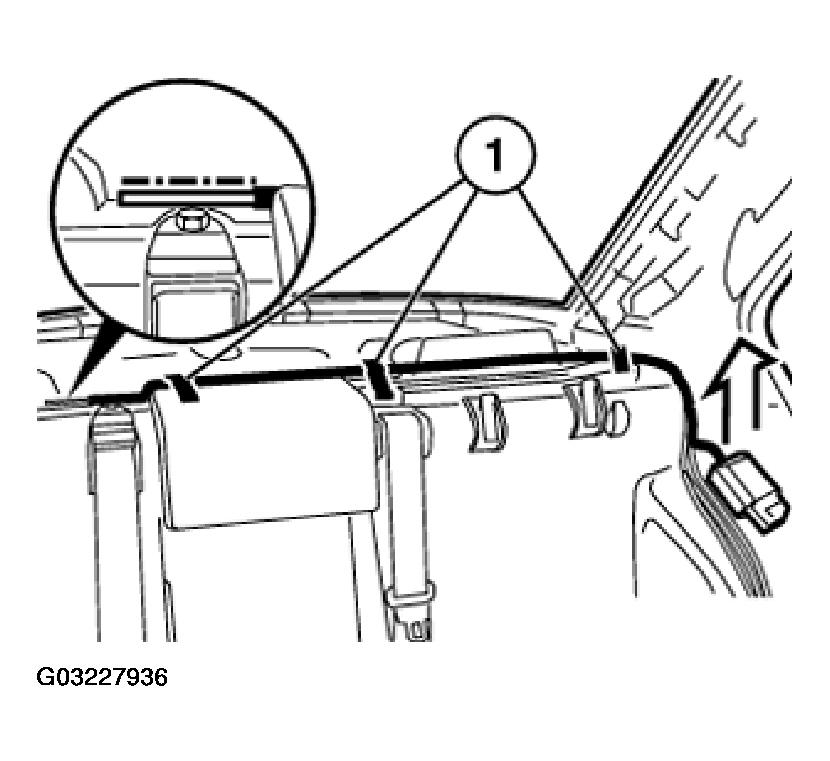

Fig 1: Removing Antenna Cable From Control Unit
G03227936
