65 12 070 Removing and installing/replacing amplifier (HiFi system)

If necessary, remove video module, refer to 65 50 510 REMOVING AND INSTALLING/REPLACING VIDEO MODULE FOR ON-BOARD MONITOR (SALOON)  .

If necessary, remove CD changer, refer to 65 11 070 REMOVING AND INSTALLING/REPLACING CD CHANGER  .

If necessary, remove holder for video module and CD changer.

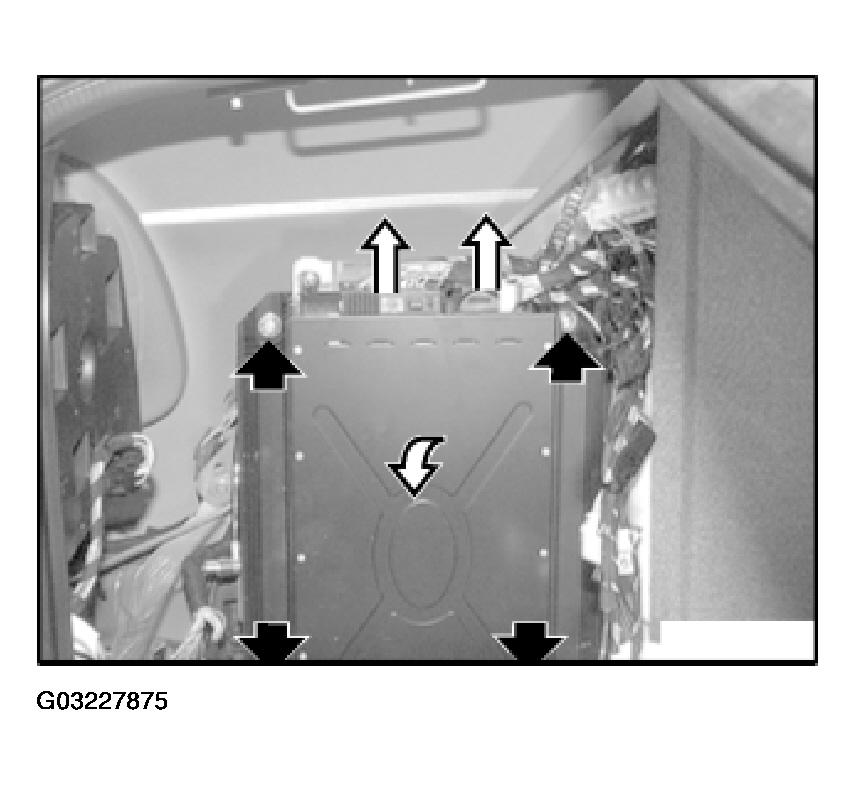

Pull off connectors. Release screws and remove amplifier.

Fig 1: Pulling Off Connectors

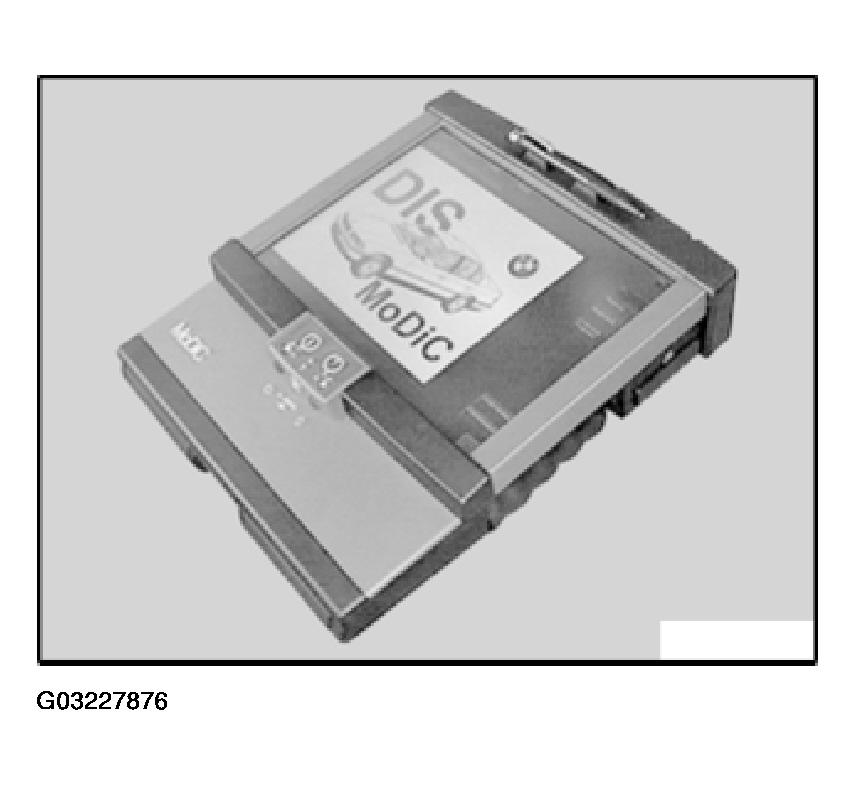

The amplifier must be recoded after being replaced, refer to Diagnosis and Information System (DIS).

Fig 2: Recoding Amplifier
