35 41 010 Removing and installing or replacing accelerator pedal: Notes

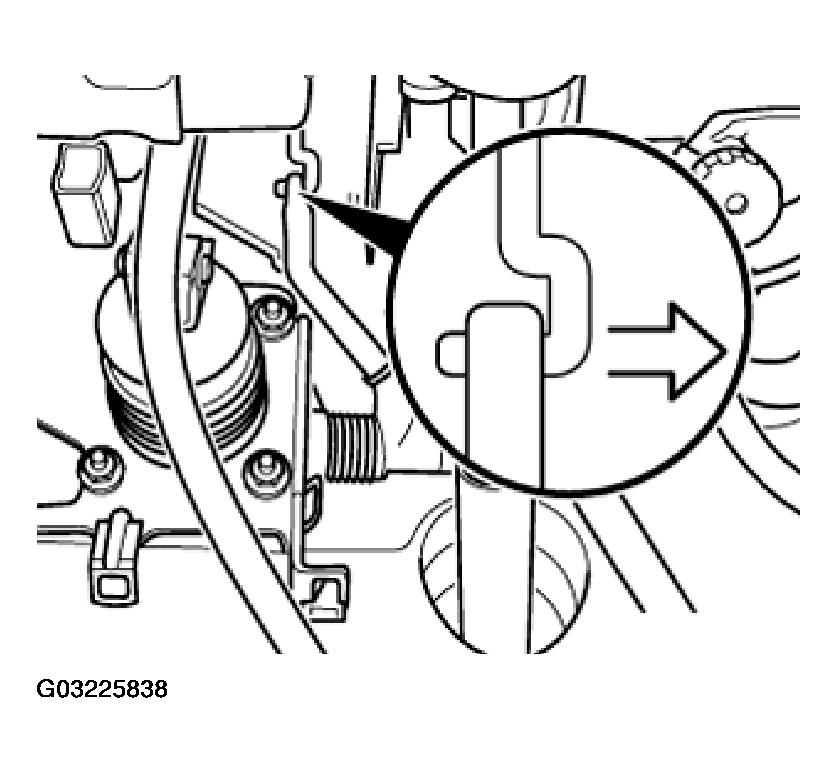

Remove lower left trim from instrument panel. Disconnect accelerator cable.

Fig 1: Disconnecting Accelerator Cable

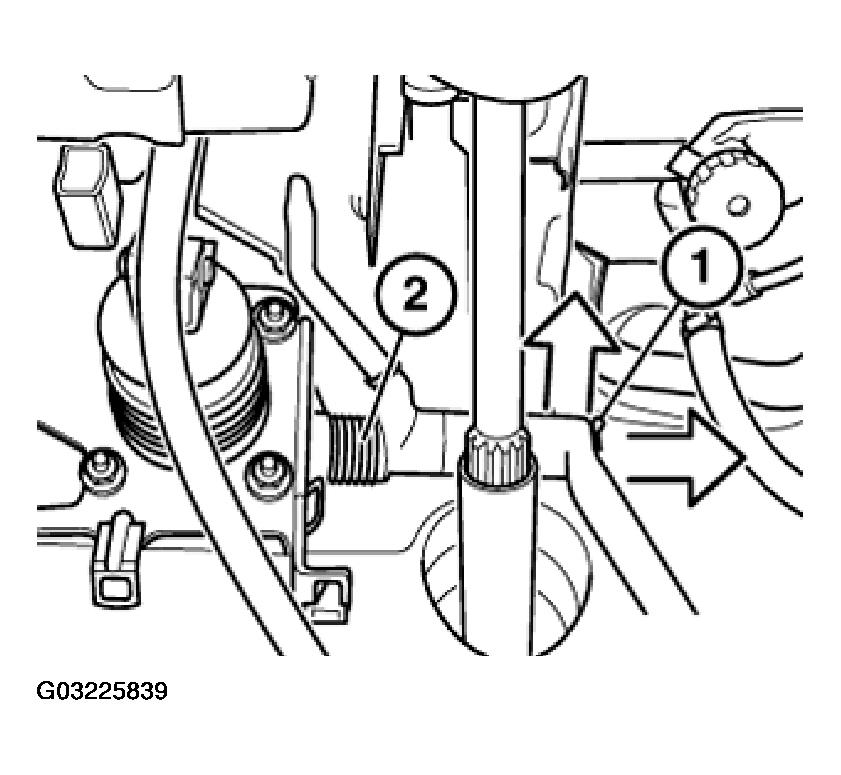

Remove retainer (1).

Disconnect spring (2).

Fig 2: Disconnecting Spring

Remove acclerator pedal.

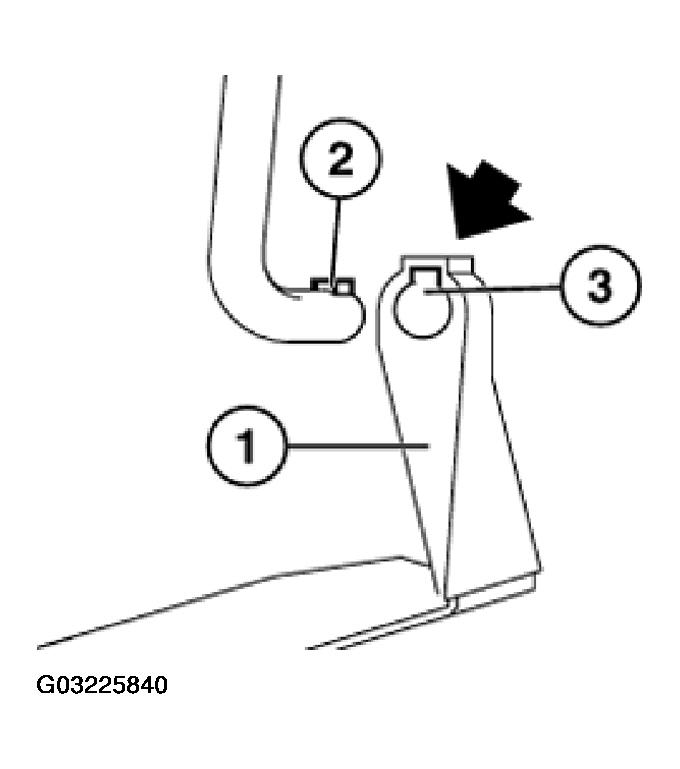

Twist accelerator pedal until linkage lug (2) locates in recess (3) of accelerator pedal (1).

Fig 3: Twisting Accelerator Pedal Until Linkage Lug Locates In Recess Of Accelerator Pedal
