35 40 503 Replacing adapter plate
WARNING:
Always replace disassembled adapter plate with a new part. Retaining clips of old part can be damaged and adapter plate can slide out of steel plate. This means there is a risk of accident!
Remove accelerator pedal module.

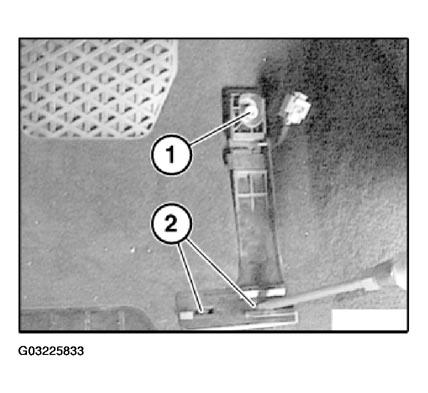

Release screw (1).
Installation:
Tightening torque (9 N.m).
Bend retaining clips (2 and 3) to one side and pull out adapter plate towards top.
