35 51 030 Removing and installing or replacing front bowden cable for parking brake

CAUTION: Adjust parking brake after assembly, refer to 34 41 006 ADJUSTING PARKING BRAKE .

Remove exhaust system, refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M52, M60, M62) .

Remove heat shield.

Disconnect front Bowden cable from connector.

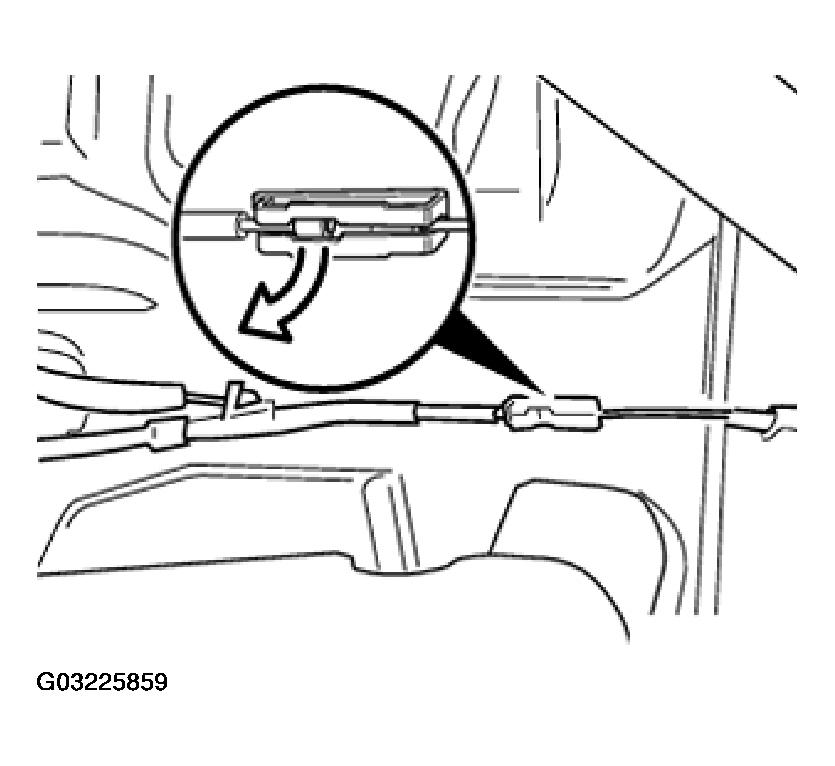

Fig 1: Disconnect Front Bowden Cable From Connector

Remove lower left trim from instrument panel. Remove trim from left A pillar.

Fold back carpet.

Withdraw Bowden cable from guide tube.

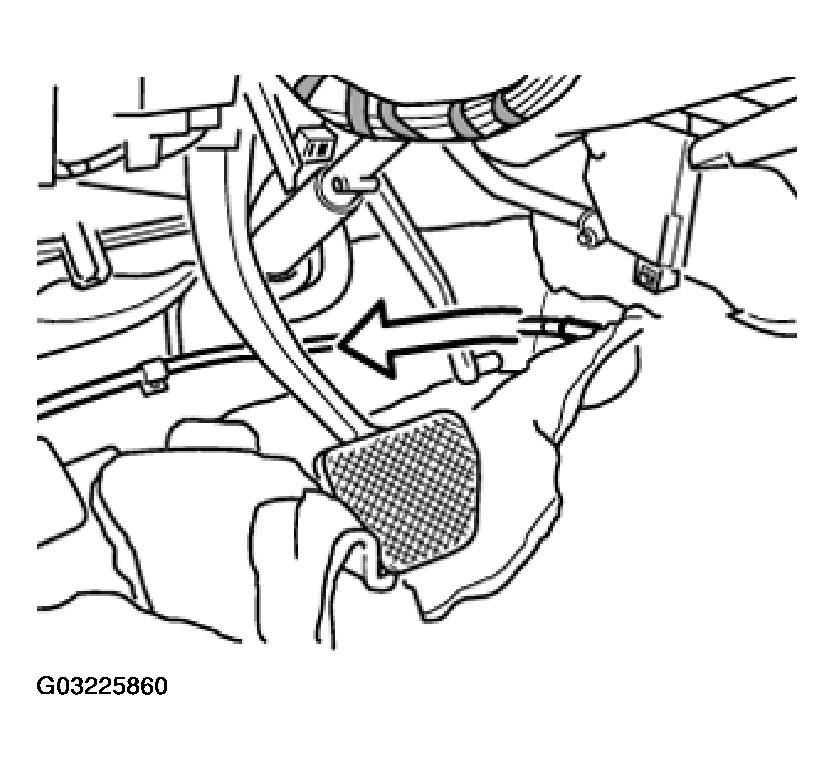

Fig 2: Withdrawing Bowden Cable From Guide Tube

Remove retainer (1).

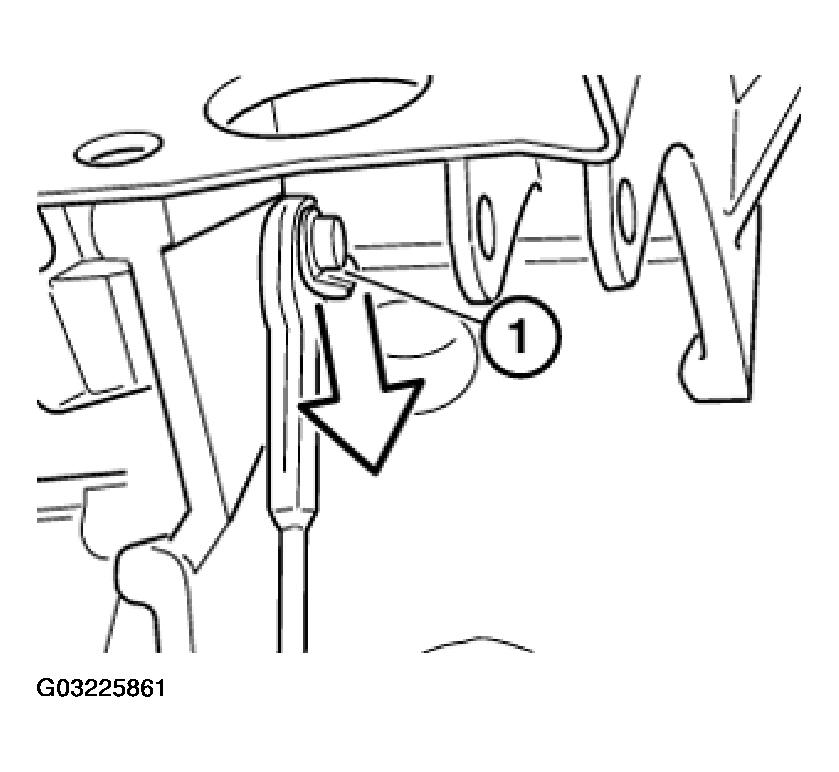

Fig 3: Removing Retainer

Disconnect Bowden cable and remove.
