35 51 003 Removing and installing damper for footbrake lever: Installation:

Replace retaining pin (1).

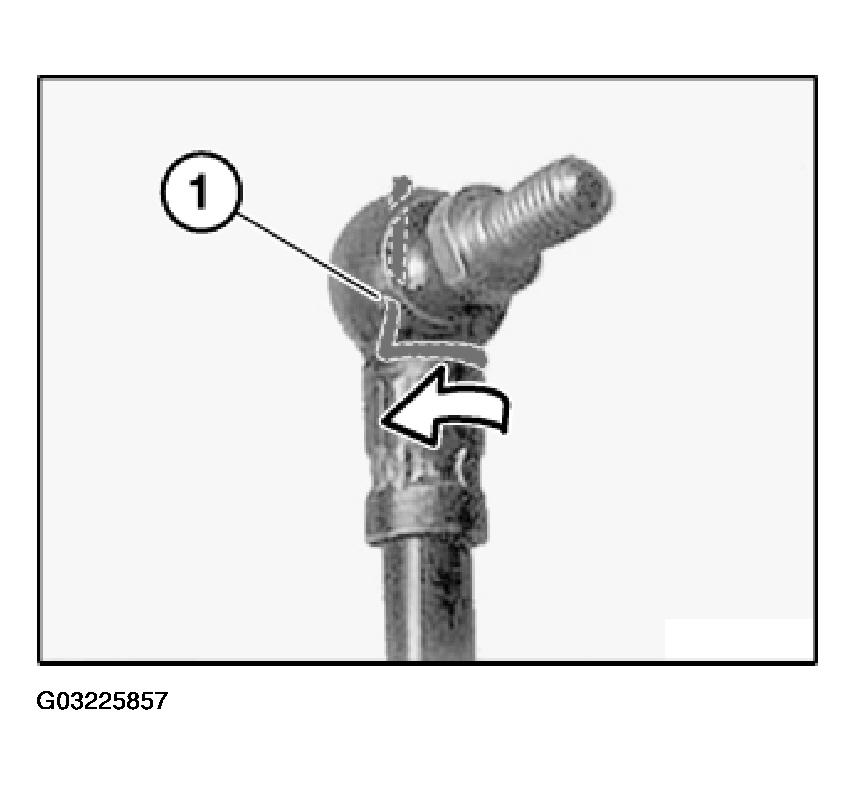

Fig 1: Replacing Retaining Pin

Press gas strut off mount and press off footbrake lever.

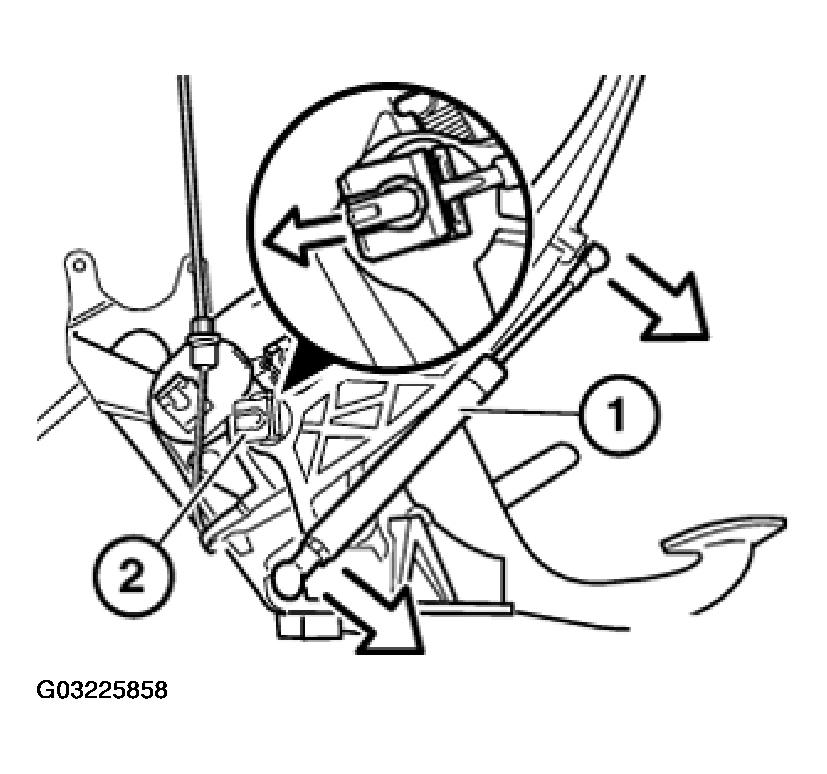

Fig 2: Pressing Gas Strut Off Mount
