GEAR SHIFT MECHANISM - REPAIR INSTRUCTIONS - 740i & 740iL - E38
>>
Center shift Automatic Transmission
>>
25 16 061 Replacing handle for selector lever
>>
Notes
25 16 061 Replacing handle for selector lever: Notes
NOTE:
Do not twist handle during removal as this would cause the turning lock in the knob to shear off.
Tug firmly to remove knob.

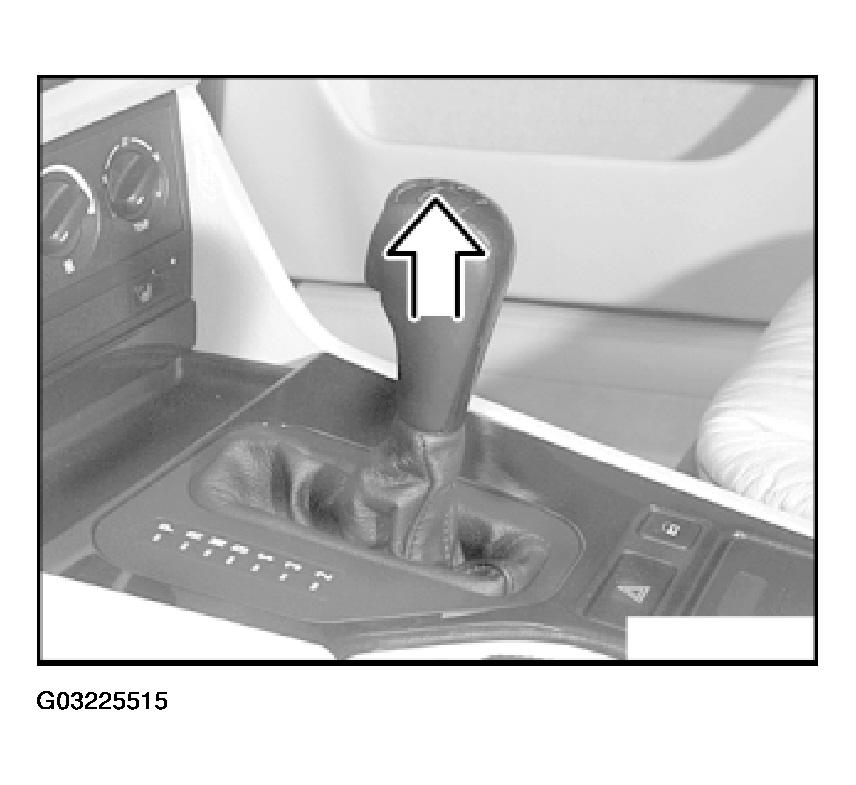

Fig 1: Removing Knob
