25 16 061 Replacing handle for selector lever: Installation:

Fit knob on selector lever, align and press on until it snaps noticeably into place.



Push rubber gaiter (1) down until groove (2) is fully exposed.

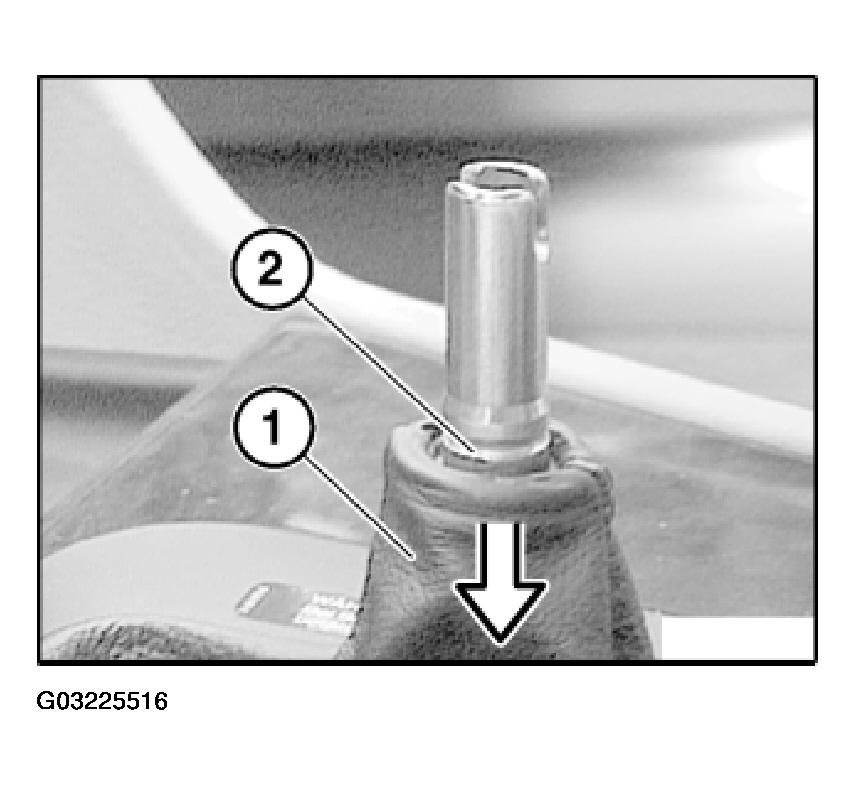

Fig 1: Pushing Rubber Gaiter Down
G03225516
