25 16 056 Removing and installing/replacing shift tower (Steptronic): Installation

Adjust selector lever

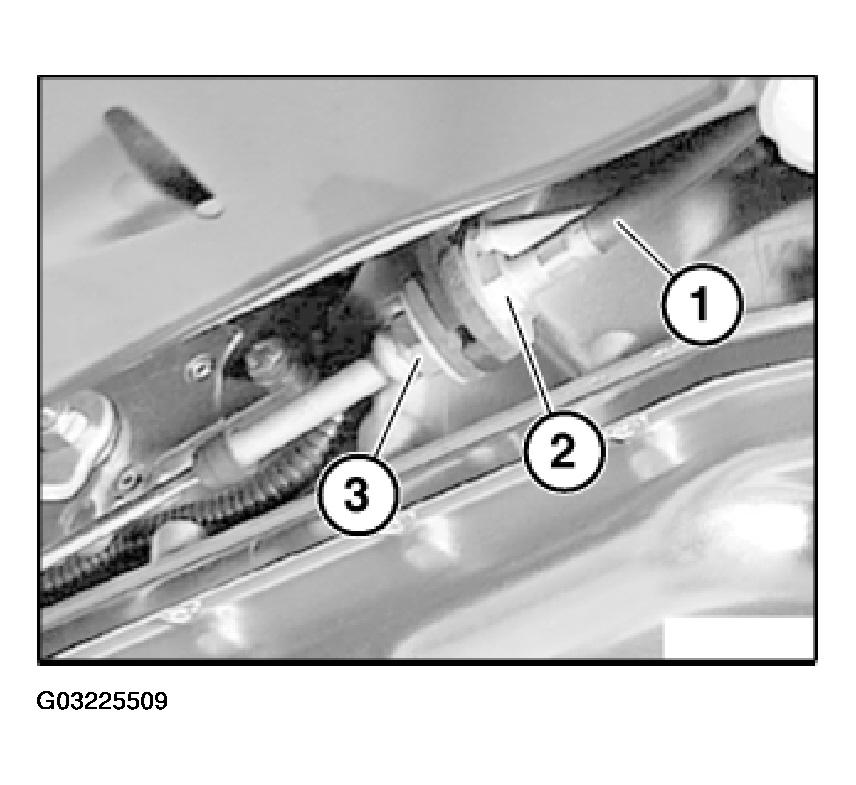

Grip cable (1) at hexagon head (2).

Unscrew nut (3).

Pull cable (1) out of holder.

Installation:

Tightening torque, refer to 25 16 1AZ 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .

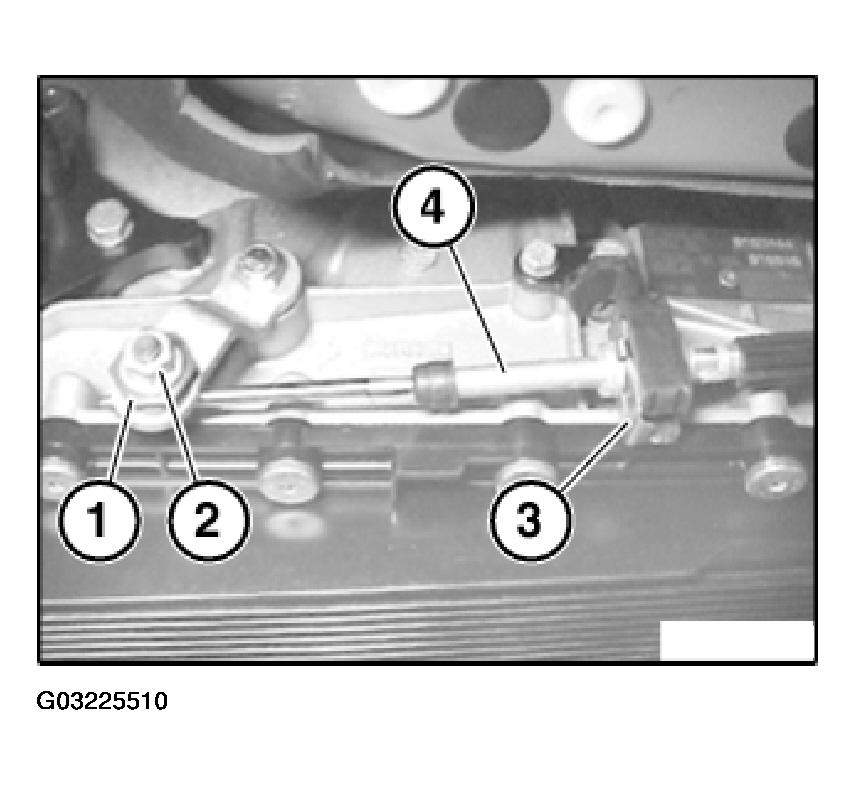

Lever out retainer (3) downwards using a screwdriver.

Release screw (1) on interlock cable.

Tightening torque, refer to 25 16 5AZ 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .

Pull plug connector (2) out of bracket and disconnect.

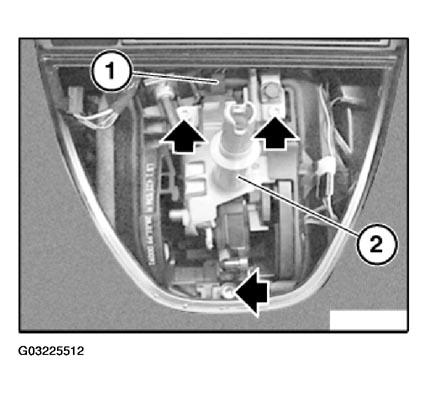

Disconnect plug connector (1).

Release screws and lift out shift tower (2) a little.

Tightening torque, refer to 25 16 3AZ 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .

Unhook interlock cable.

Remove shift bracket with cable.
