25 16 051 Removing and installing or replacing shift lever bracket: Installation:

Adjust shift lever.

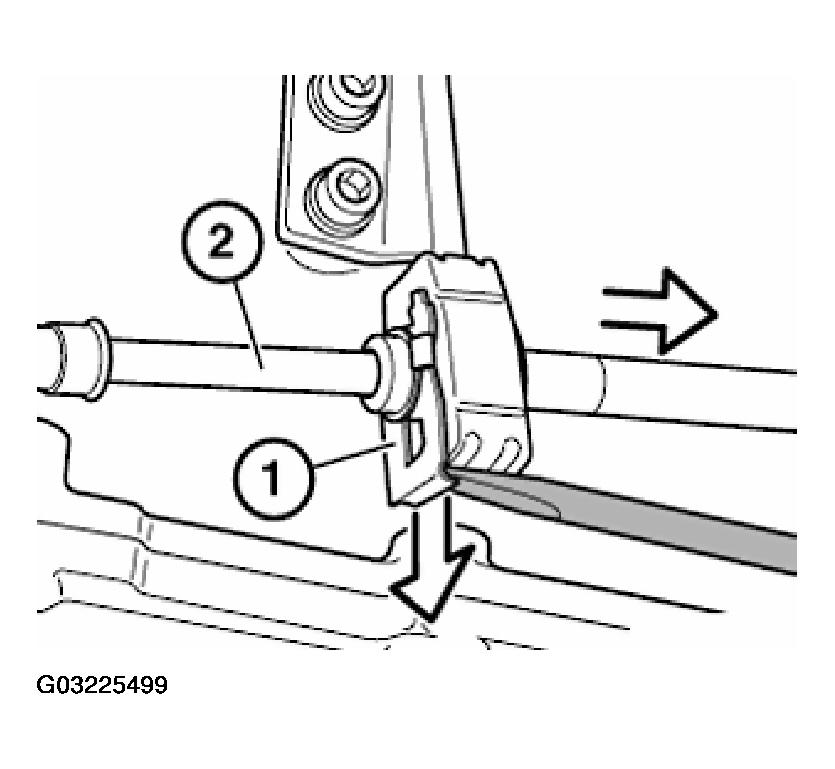

Lift out retaining plate (1) with a screwdriver. Remove cable (2).

Fig 1: Lifting Retaining Plate And Removing Cable

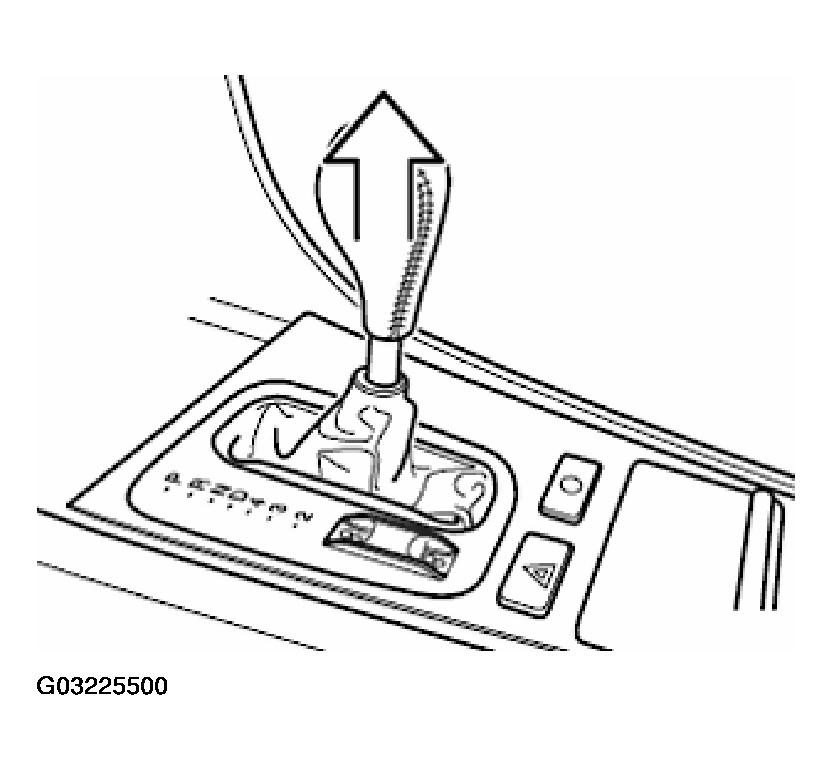

Pull handle off with one firm movement.

Fig 2: Removing Handle

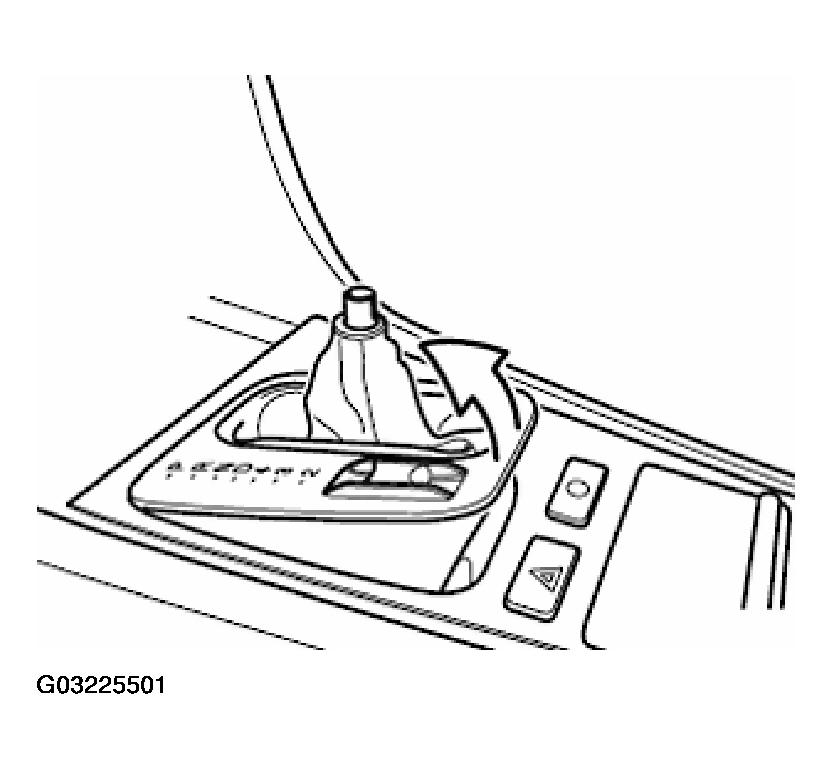

Lift out cover plate.

Fig 3: Lifting Cover Plate

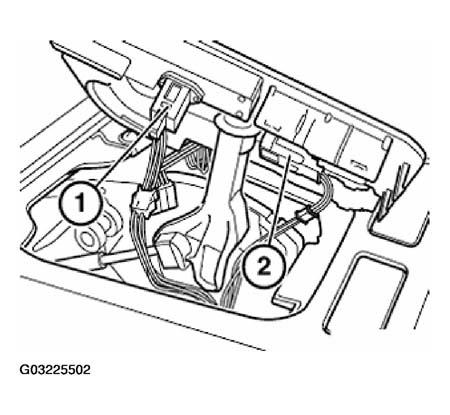

Remove cable connectors (1 and 2).

Fig 4: Removing Cable Connectors

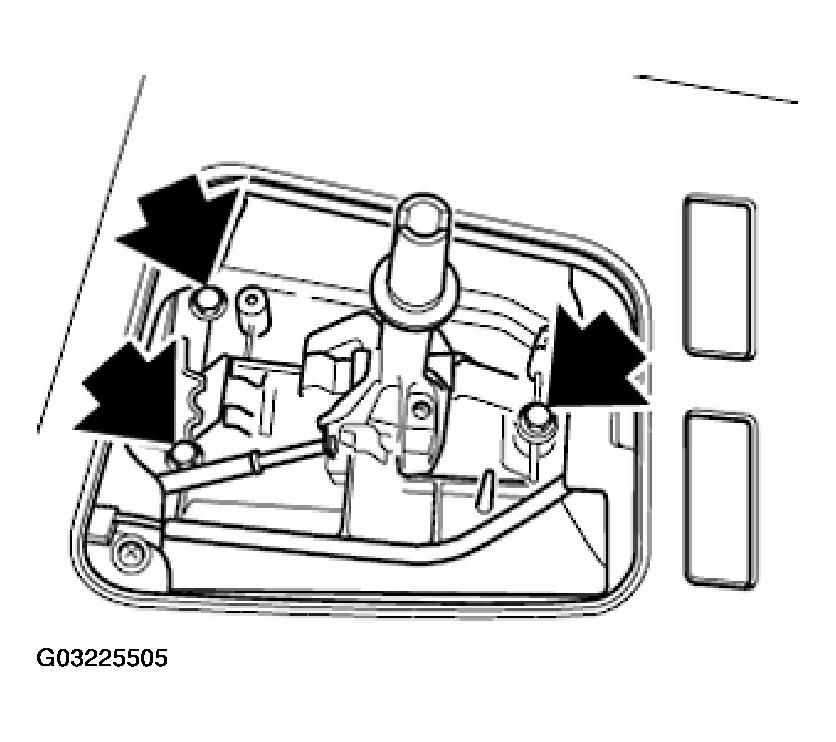

Unfasten screws.

Remove position switch.

Fig 5: Removing Position Switch

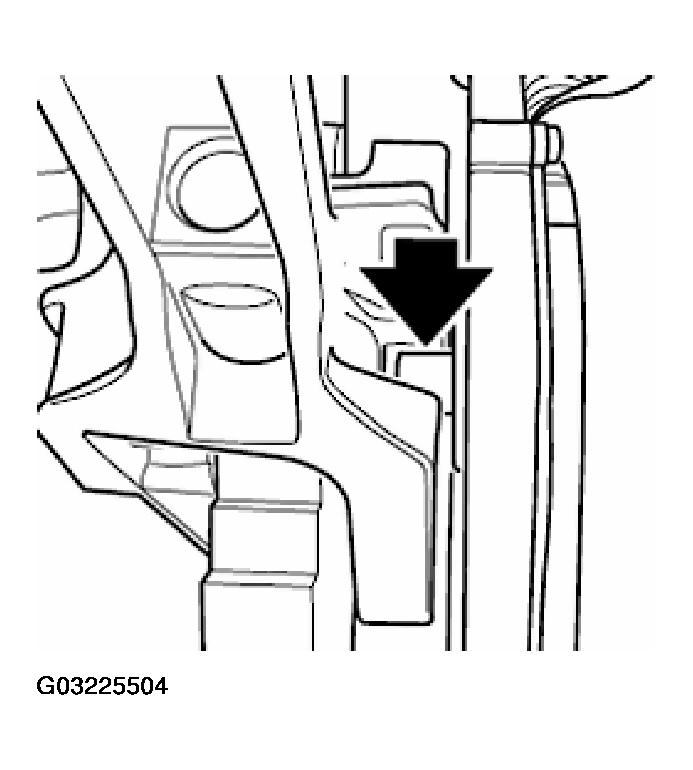

Pin in switch must locate in recess on selector lever.

Fig 1: Identifying Switch Position On Selector Lever

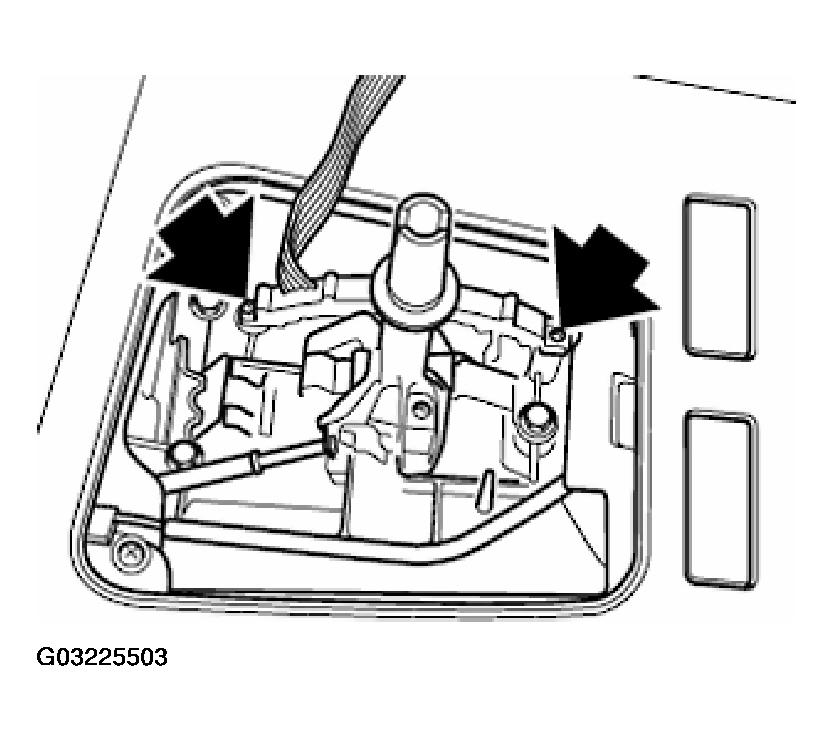

Unfasten screws.

Fig 2: Removing Screws

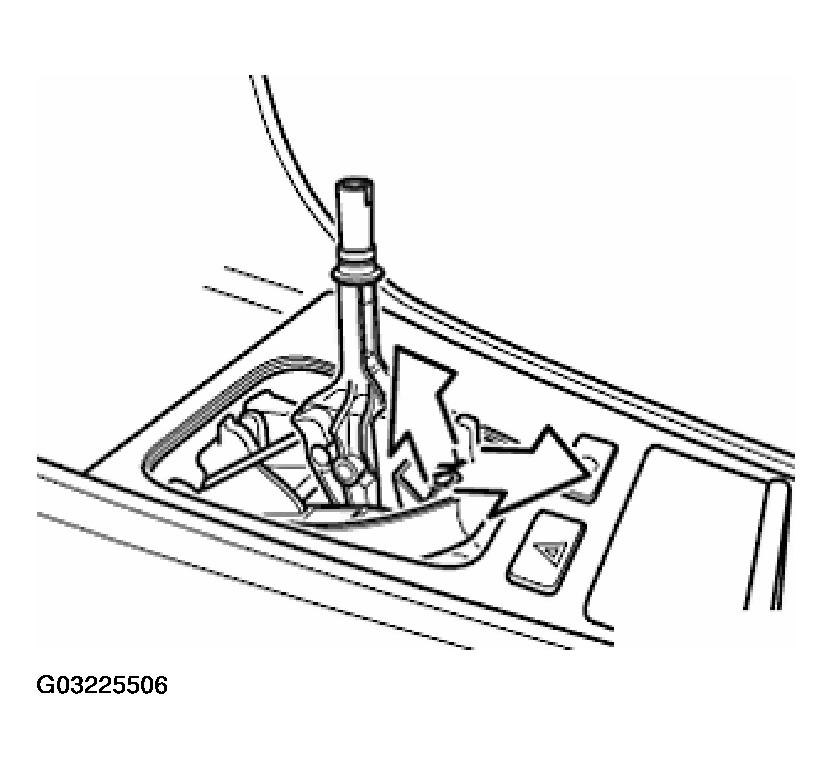

Lift out shift lever with mounting bracket and remove by pulling backwards.

Fig 3: Lifting Shift Lever With Mounting Bracket

Coat rubber lip with anti-friction coating, refer to BMW Parts Service.

Ensure that rubber lip makes contact with carpet on transmission tunnel.
