Adjusting interlock (without Steptronic):

Move selector lever (1) to "P" position (front stop of shifting gate).

Release screw (2). The cable (3) must remain easily movable axially in the holder (4).

Move ignition key to "zero" position and remove.

Press interlock lever (5) downwards as far as it will go.

Tighten down screw (2).

Tightening torque, refer to 25 16 5AZ 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .

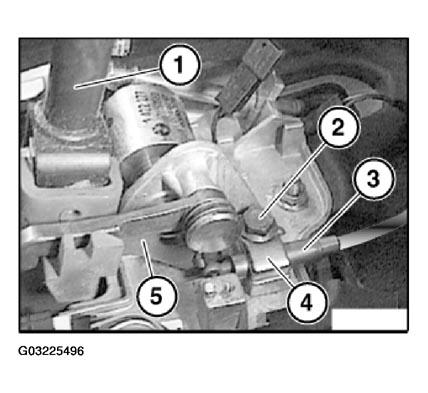

Fig 1: Adjusting Interlock (Without Steptronic)
G03225496
