00 11 500 Checking/topping up oil level in automatic transmission (A5S 310Z)
- Topping up transmission oil level after a repair:
Selector lever in setting "P".
The vehicle must be horizontal and secured to prevent it from rolling away.

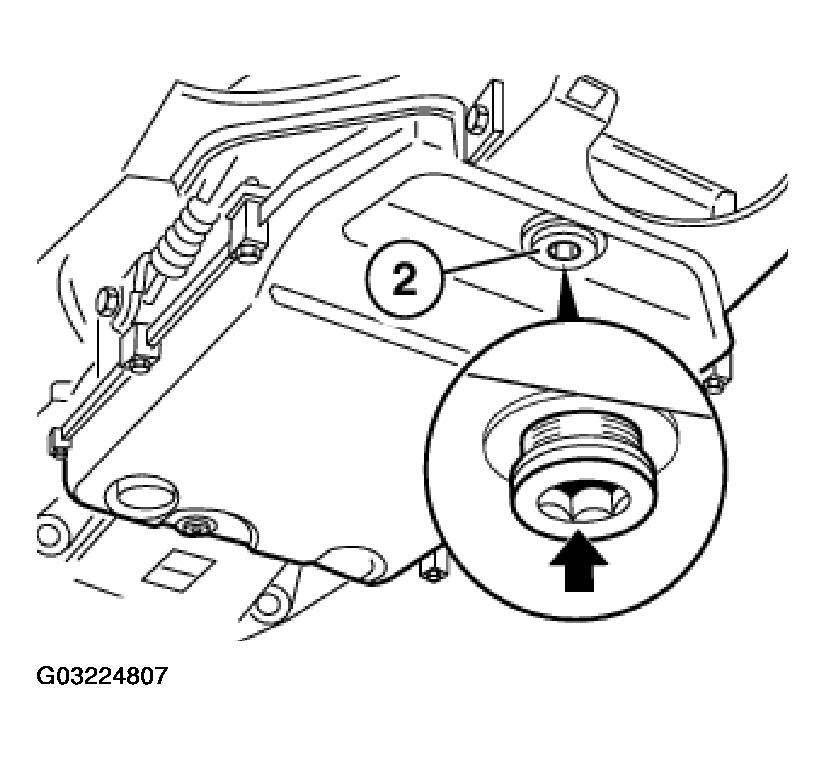

Unfasten filler screw (2).
Installation:
Replace sealing ring.
Tightening torque, refer to TORQUE SPECIFICATIONS .
Top up automatic transmission until oil emerges at filler/overflow bore.
Start engine.
Top up automatic transmission until oil emerges at filler/overflow bore.
Screw in filler screw (2).
Operate brake and change up and down all gears at idle speed.
Connect BMW Diagnosis and Information System (DIS) and/or BMW MoDiC to vehicle and perform oil level check in accordance with instructions.
- Checking oil level:
Connect BMW Diagnosis and Information System (DIS) and/or BMW MoDiC to vehicle and perform oil level check in accordance with instructions.
