17 11 530 Removing and installing cassette (condenser for air conditioner): Installation:

Replace sealing rings.

Fig 1: Replacing Sealing Rings

Draw off refrigerant from A/C system.

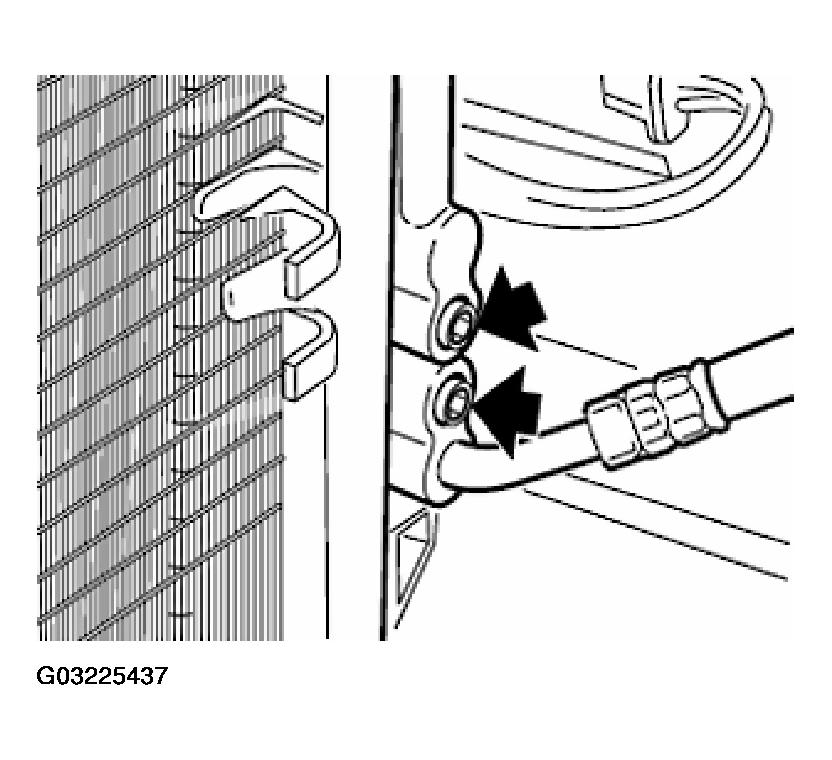

Remove lines from air conditioner.

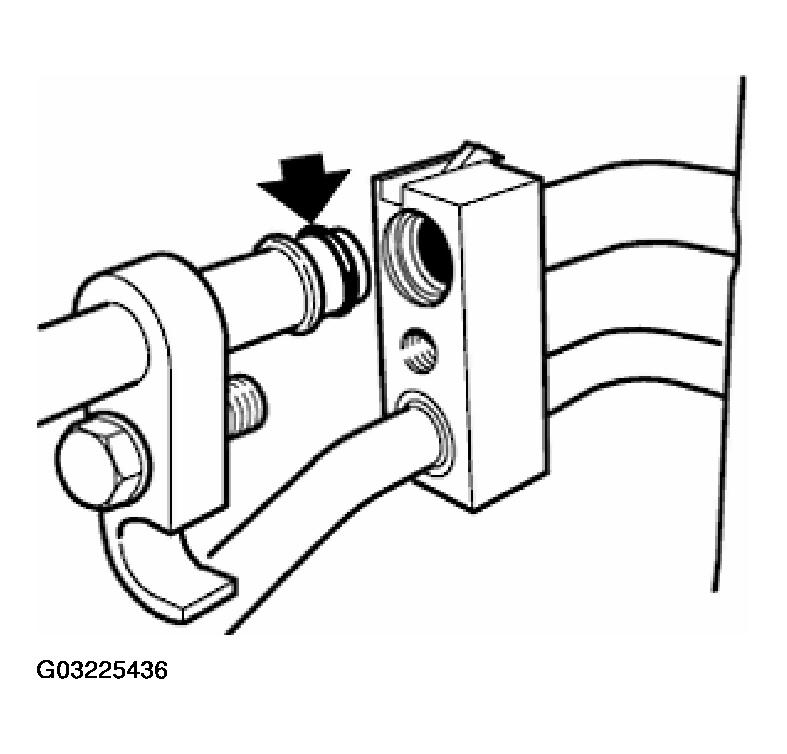

Replace sealing rings.

Fig 1: Identifying Sealing Rings

Evacuate and fill A/C system. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .

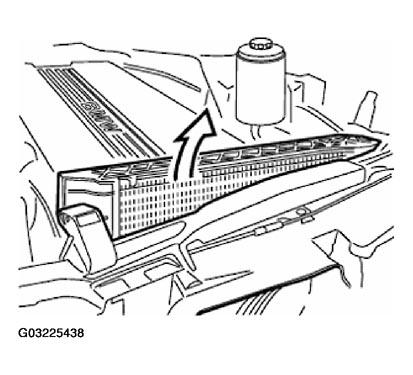

Tilt cassette backwards slightly and lift upwards to remove.

Fig 2: Removing Cassette

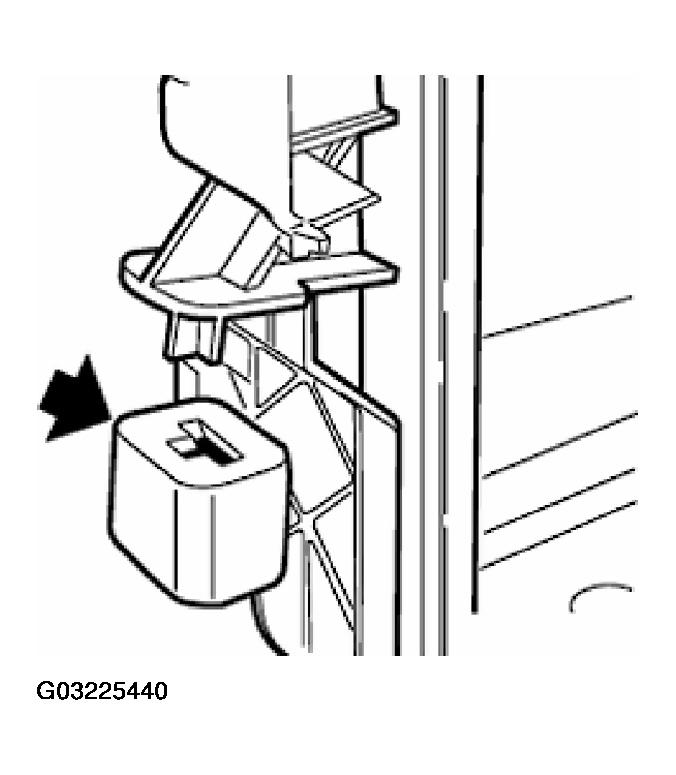

Note rubber mounts on front wall.

Fig 1: Identifying Rubber Mounts On Front Wall

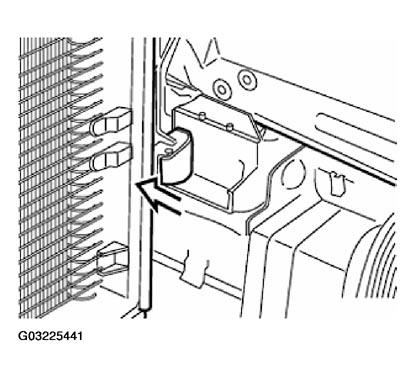

Check rubber mounts on left and right sides.

Fig 1: Checking Rubber Mounts

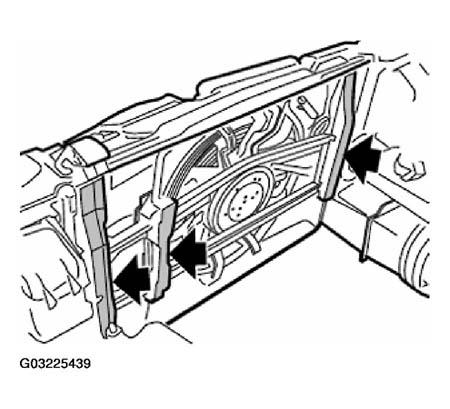

Install cassette in left and right retainers and push forwards as far as it will go.

Fig 1: Installing Cassette In Left And Right Retainers

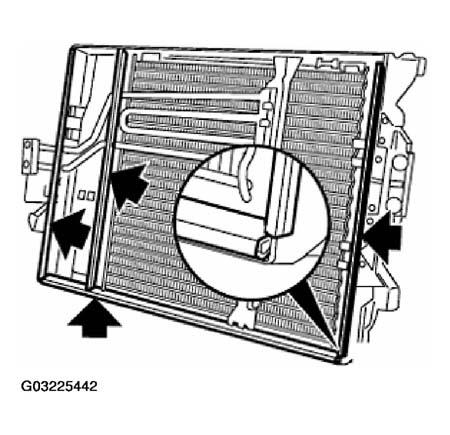

Check rubber profile seals.

Fig 1: Checking Rubber Profile Seals
