17 11 100 Removing and installing/replacing coolant expansion tank

WARNING: Danger of scalding! Open cap on coolant expansion tank only after engine has cooled down.

Drain coolant to below level of coolant expansion tank only.

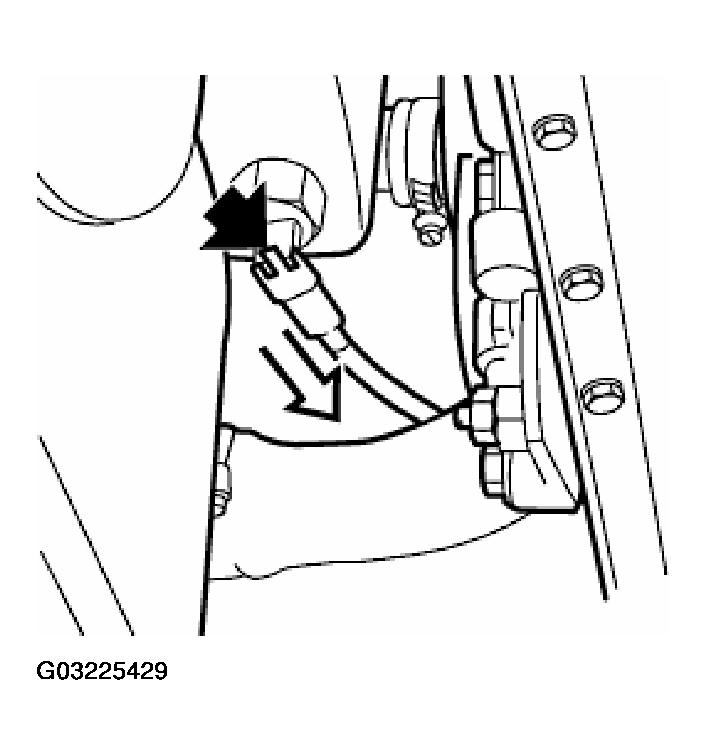

Disconnect plug from level sensor.

Fig 1: Disconnecting Plug From Level Sensor

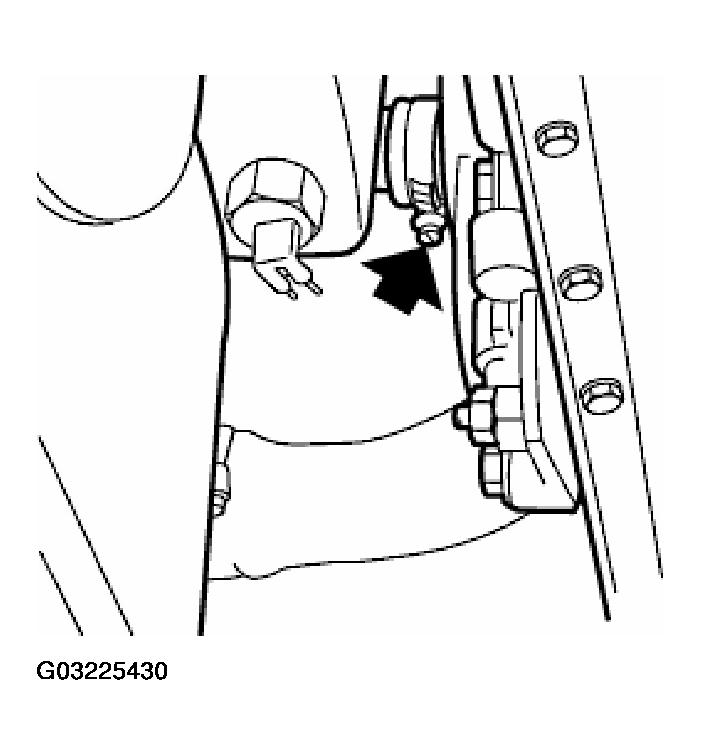

Release clamp and detach hose from coolant expansion tank.

Fig 2: Releasing Clamp And Detaching Hose From Coolant Expansion Tank

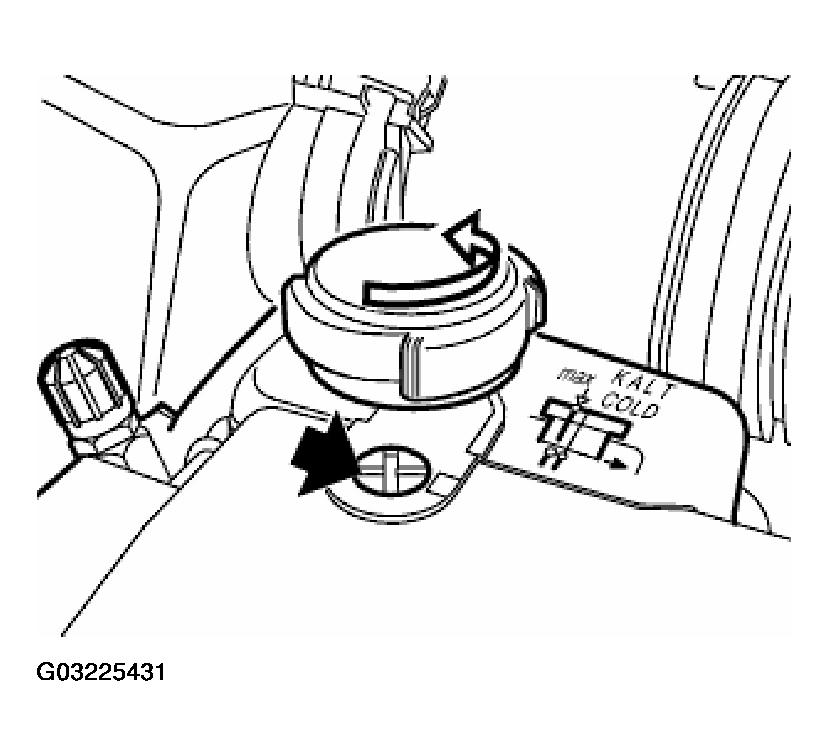

Open cap on coolant expansion tank.

Remove vent plug completely.

Fig 3: Opening Cap On Coolant Expansion Tank And Removing Vent Plug

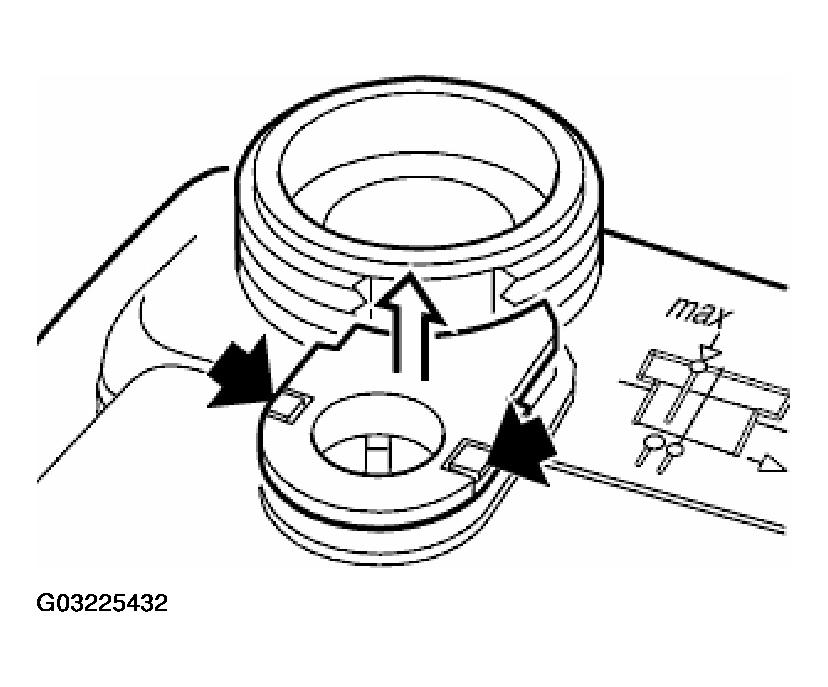

Unclip retaining cap.

Fig 4: Uncliping Retaining Cap

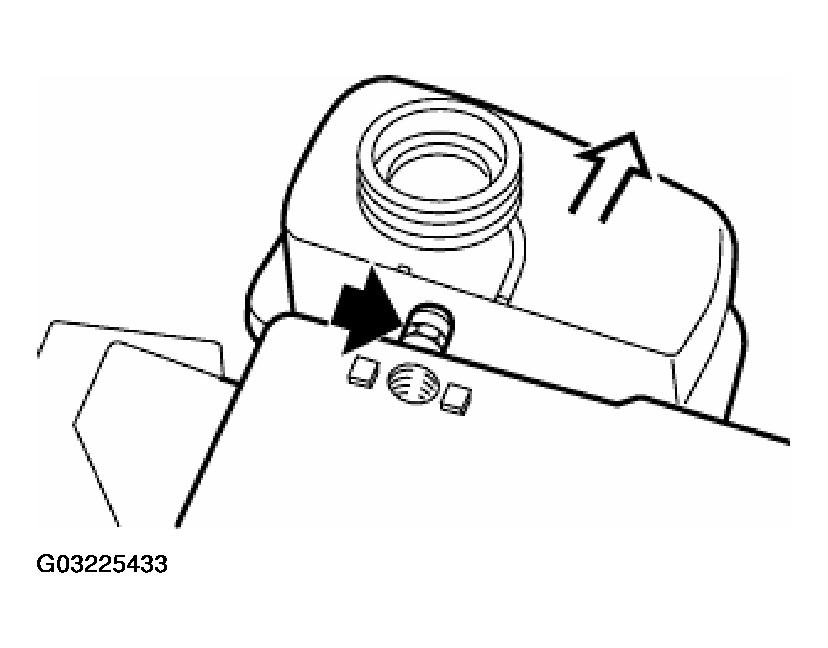

Pull expansion tank towards rear and detach vent hose.

Fig 5: Pulling Expansion Tank Towards Rear And Detaching Vent Hose

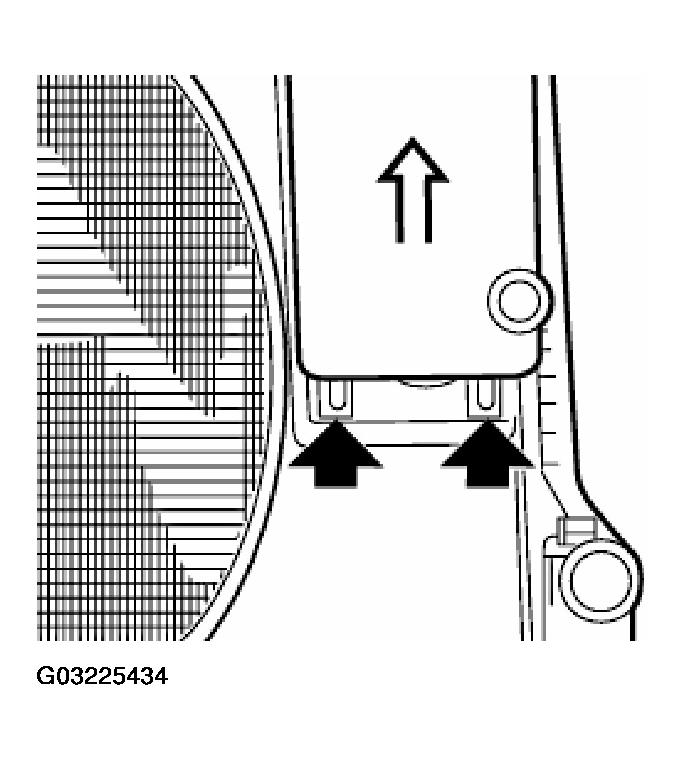

Lift coolant expansion tank out of lower retaining lugs.

Fig 6: Lifting Coolant Expansion Tank Out Of Lower Retaining

Installation:

The retaining lugs on the expansion tank must locate in the fan cowl.

Top up with coolant.
