17 11 000 Removing and installing radiator: Installation:

Follow instructions for working on cooling system, refer to 17 00 ... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM

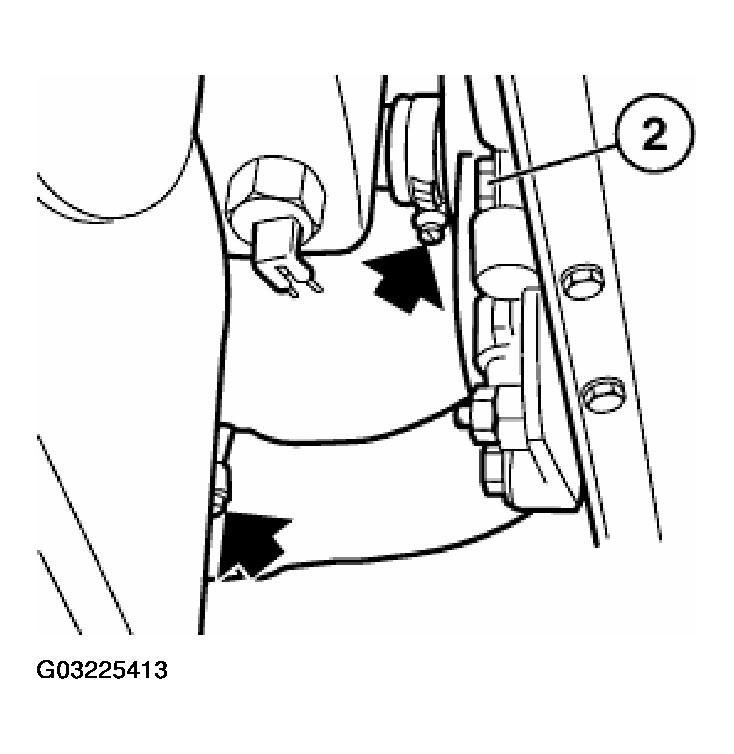

Remove lower coolant hose.

Fig 1: Removing Lower Coolant Hose

Slide back spring (2).

Water hose (3) must snap audibly into place.

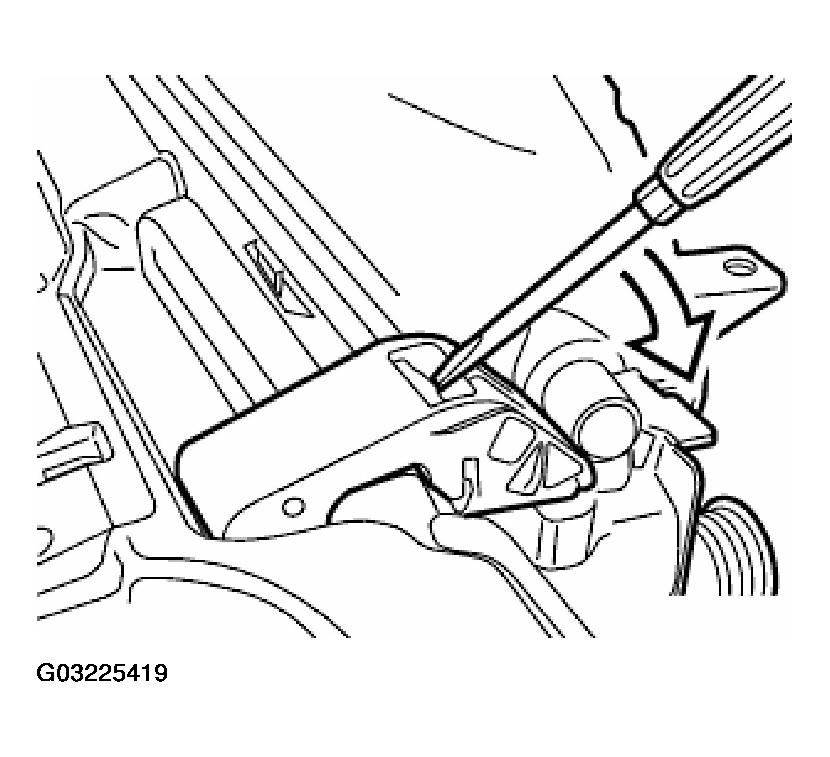

Unfasten radiator mounts on left and right by pressing in detent with screwdriver.

Fig 1: Unfastening Radiator Mounts

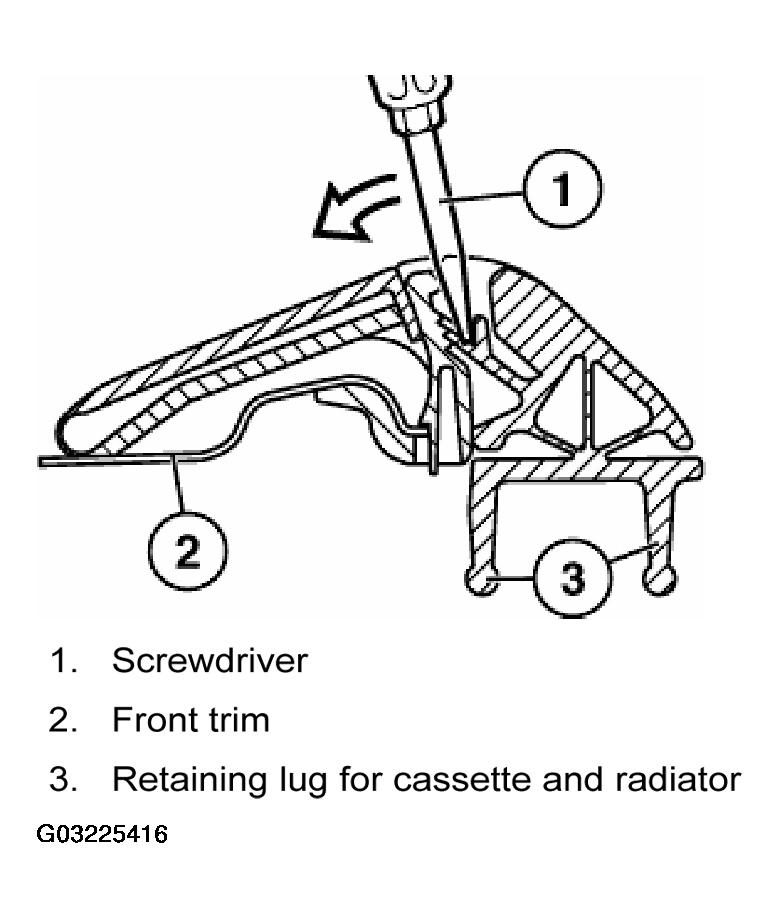

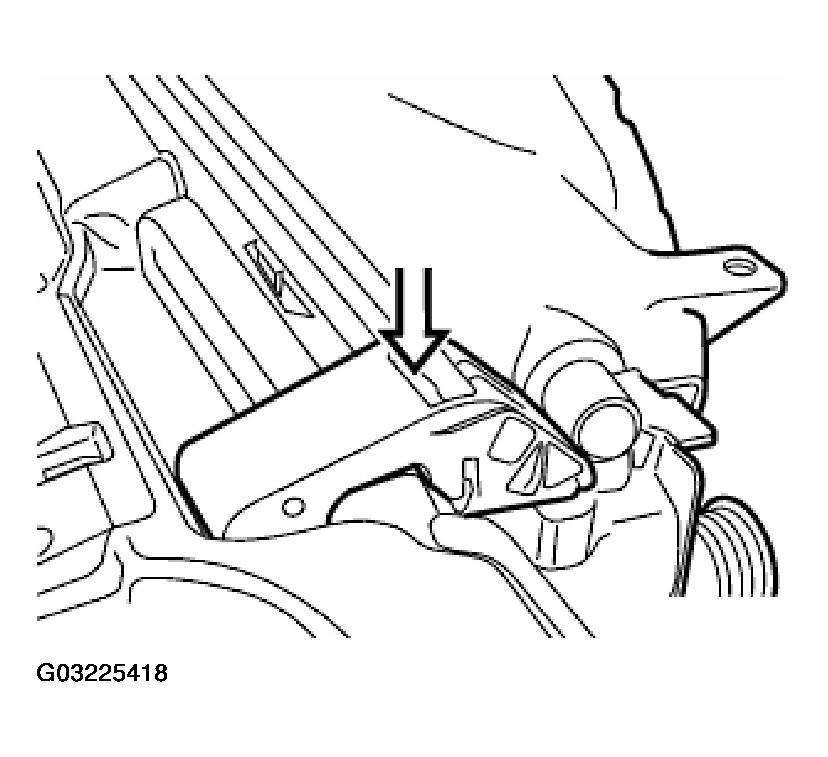

Sectional view through radiator mount:

Screwdriver
Front trim
Retaining lug for cassette and radiator

Fig 2: Identifying Radiator Mounts

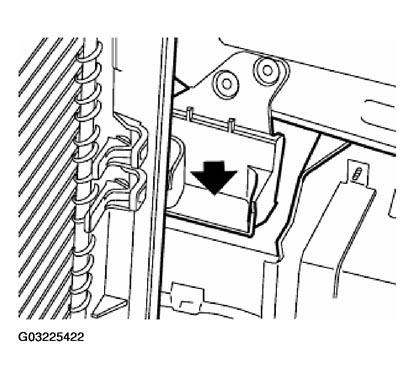

The cassette for automatic transmission, steering hydraulics and engine oil cooler and the A/C condenser are secured simultaneously with the retaining lugs.

Fig 1: Identifying Cassette For Automatic Transmission, Steering Hydraulics And Engine Oil Cooler And The A/C Condenser

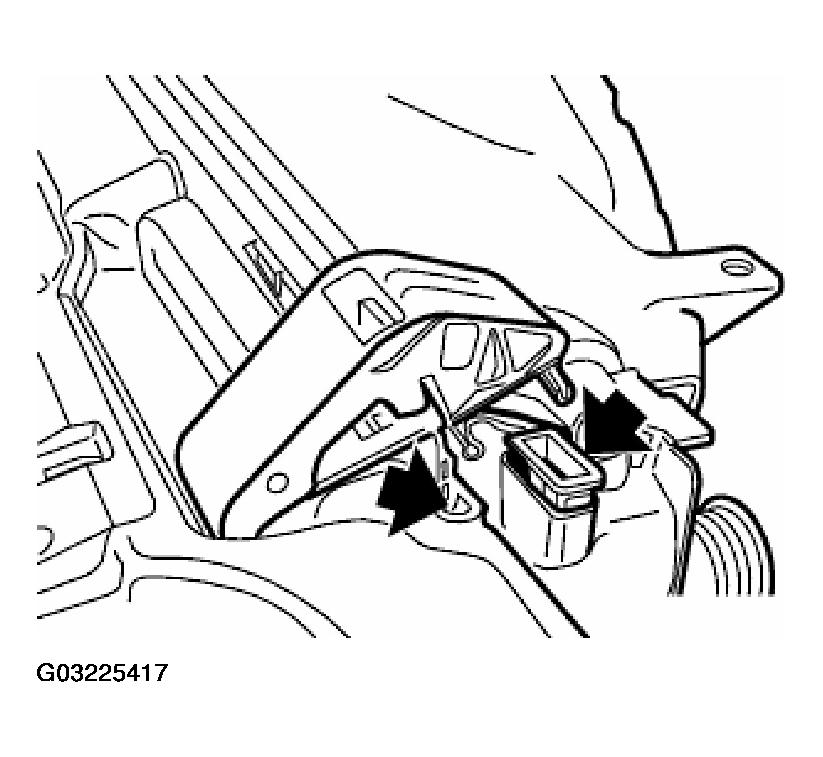

Attach retaining lugs to left and right sides of radiator and press down firmly.

Parts must engage audibly.

Fig 1: Identifying Retaining Lugs

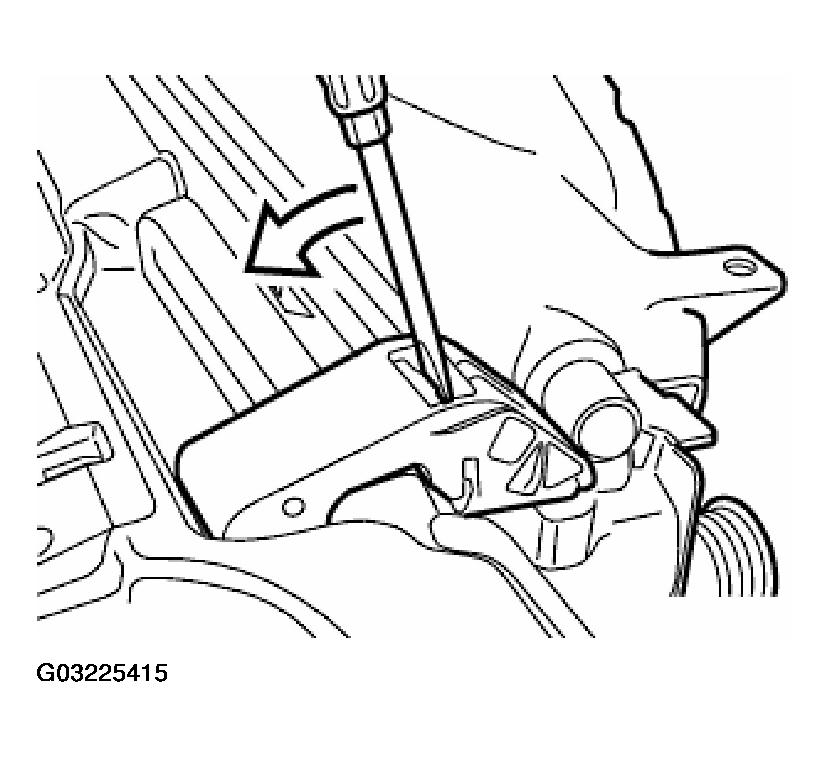

Place screwdriver under lug on radiator mount and tighten down.

Fig 1: Placing Screwdriver Under Lug On Radiator Mount

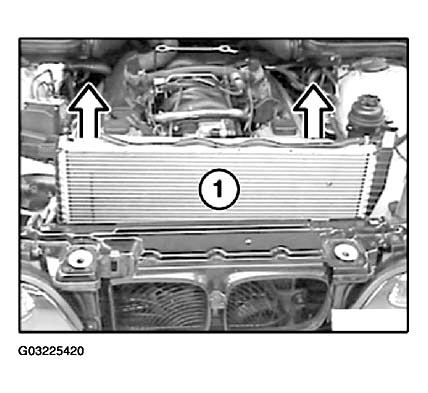

Pull out radiator (1) towards top.

Fig 2: Pulling Out Radiator (1) Towards Top

Place radiator on supports.

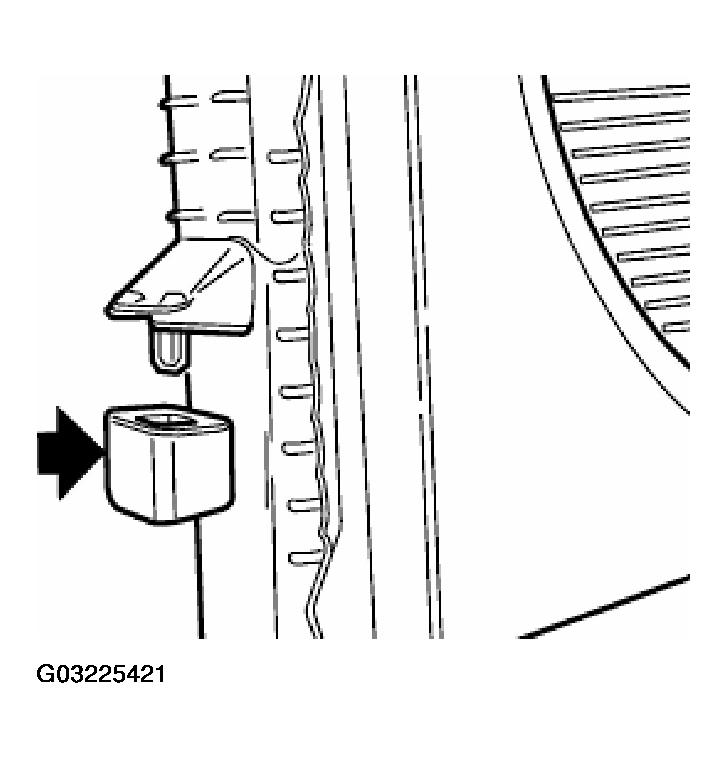

Note rubber mounts on left and right sides.

Fig 1: Identifying Rubber Mounts On Left And Right Sides

Install rubber mounts with radiator in left and right brackets.

Fig 1: Installing Rubber Mounts With Radiator

Top up coolant, refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

Vent cooling system and check for leaks, refer to 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATER LEAKS .
