Transparent expansion tank

Allow engine to cool down before checking coolant level. Coolant temperature must not exceed 30°C. If ambient temperature exceeds 30°C, allow engine to cool down at least to ambient temperature.

Check coolant level, top up coolant if necessary until fluid level is in line with marking on expansion tank.

NOTE: The tank mark indicates the fluid level at approx. 20°C.

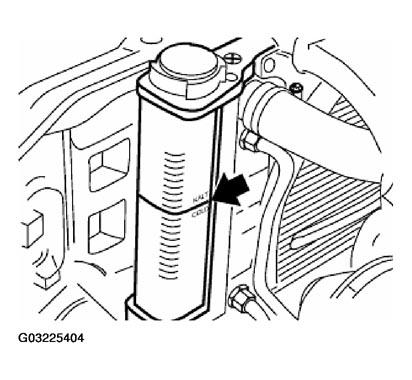

Fig 1: Checking Coolant Level (Transparent Expansion Tank)
G03225404
