26 11 160 Replacing constant-velocity joint for propeller shaft: Installation:

Replace retaining ring.

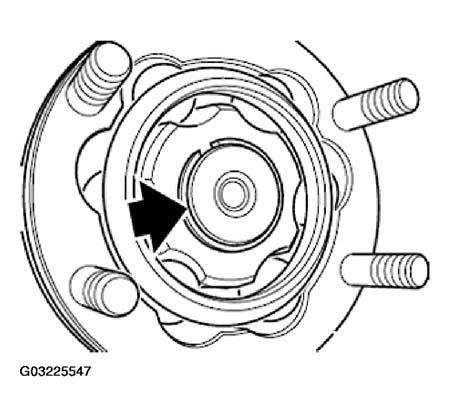

Fig 1: Locating Retaining Ring

Drive out knurled pin.

Install shims (1).

Fig 1: Installing Shims

Press gaiter off constant velocity joint.

Inject new grease into constant velocity joint from rubber gaiter and flange sides.

Grease, refer to BMW Parts Service.

Insert sealing washer (1) in constant velocity joint.

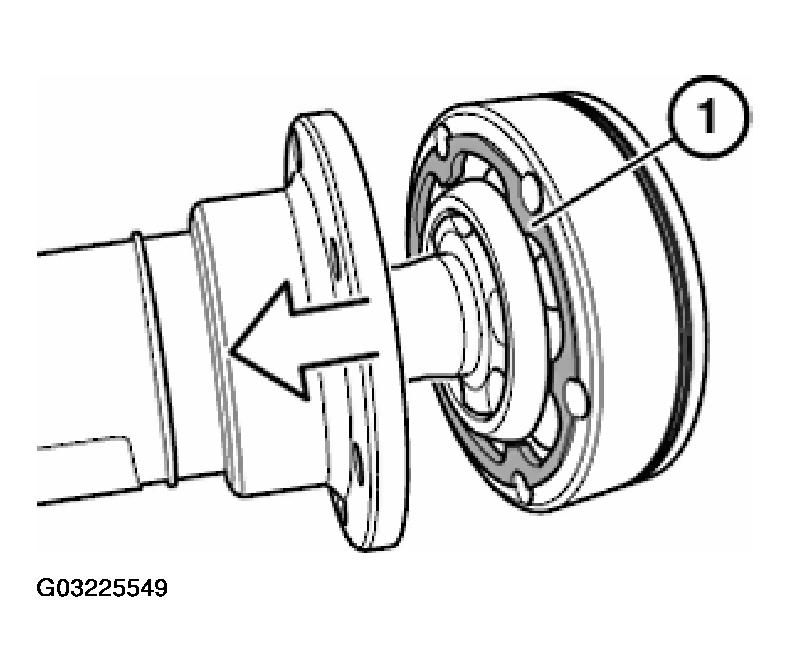

Fig 1: Inserting Sealing Washer In Constant Velocity Joint

Detach constant velocity joint with special tool 26 1 070 or 26 1 110.

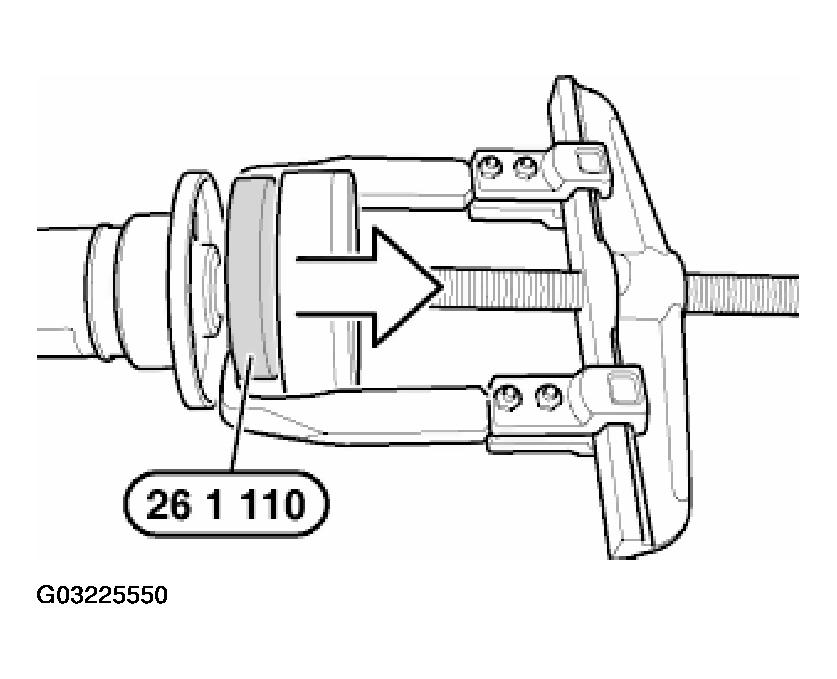

Fig 2: Detaching Constant Velocity Joint With Special Tool 26 1 070 Or 26 1 110

Drive on constant velocity joint with special tool 23 1 040 or 24 1 040 as far as it will go.

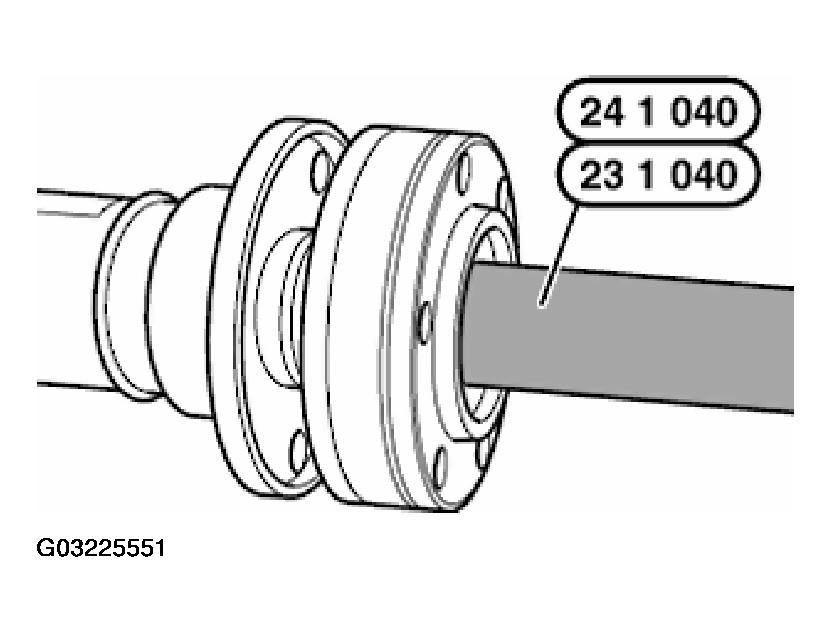

Fig 1: Driving On Constant Velocity Joint With Special Tool 23 1 040 Or 24 1 040

Shoulder (1) for sealing washer must point to gaiter.

Toothing must be free from grease.

Thread locking: apply Loctite 648.

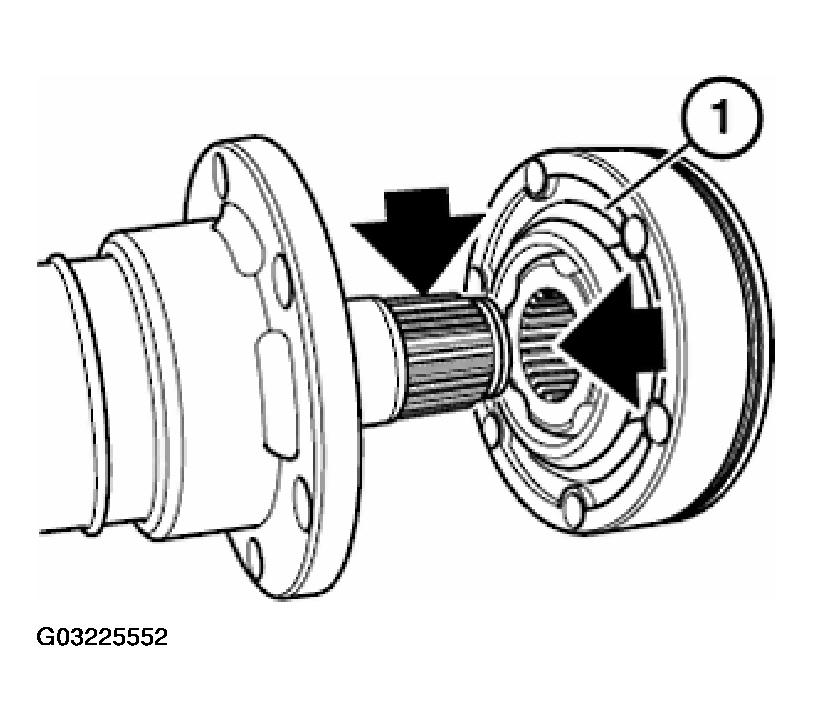

Fig 1: Identifying Sealing Washer Shoulder Position
