26 11 051 Replacing joint disk for propeller shaft: Notes

Remove propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT

Unfasten screws and remove joint disk.

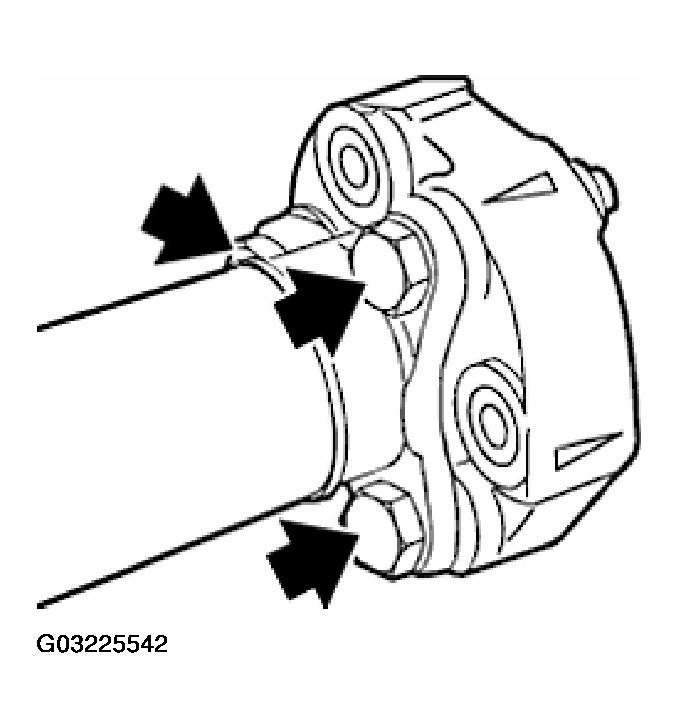

Fig 1: Loosening Screws And Removing Joint Disk
G03225542
