Removal of "flexible lock" (left side only):

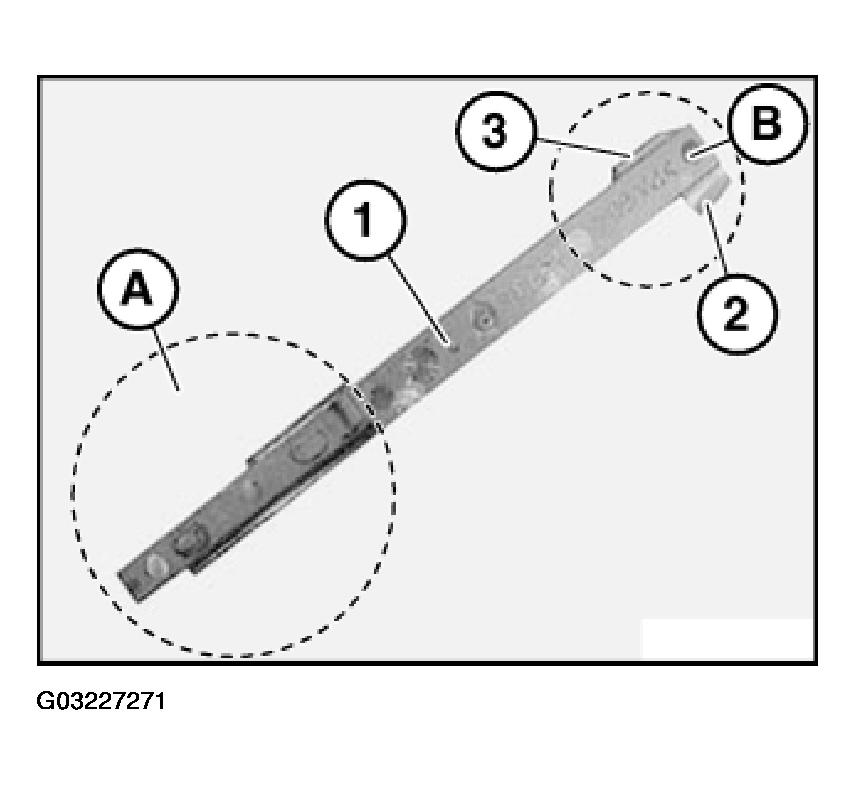

NOTE: The flexible lock (1) is divided into guide halves (A) and (B). Guide half (A) can be lifted out in every position, guide half (B) with outer guide (2) and inner guide (3) can only be lifted out in the installation aperture.

Fig 1: Identifying Flexible Lock Position

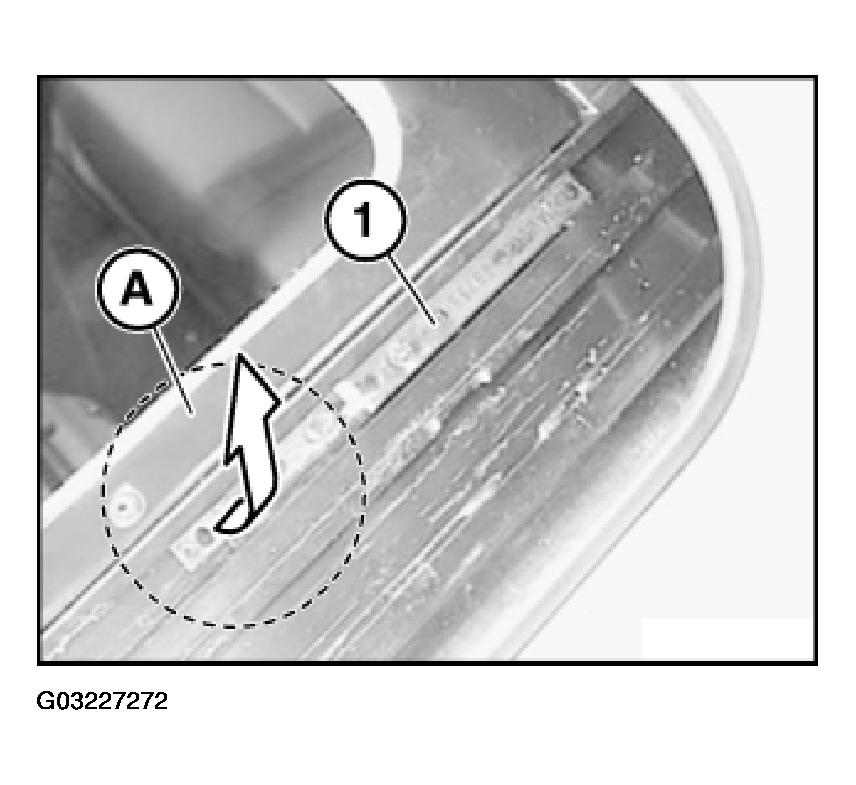

Lift out guide in area (A) of flexible lock (1).

Fig 2: Lifting Out Guide A In Area Of Flexible Lock

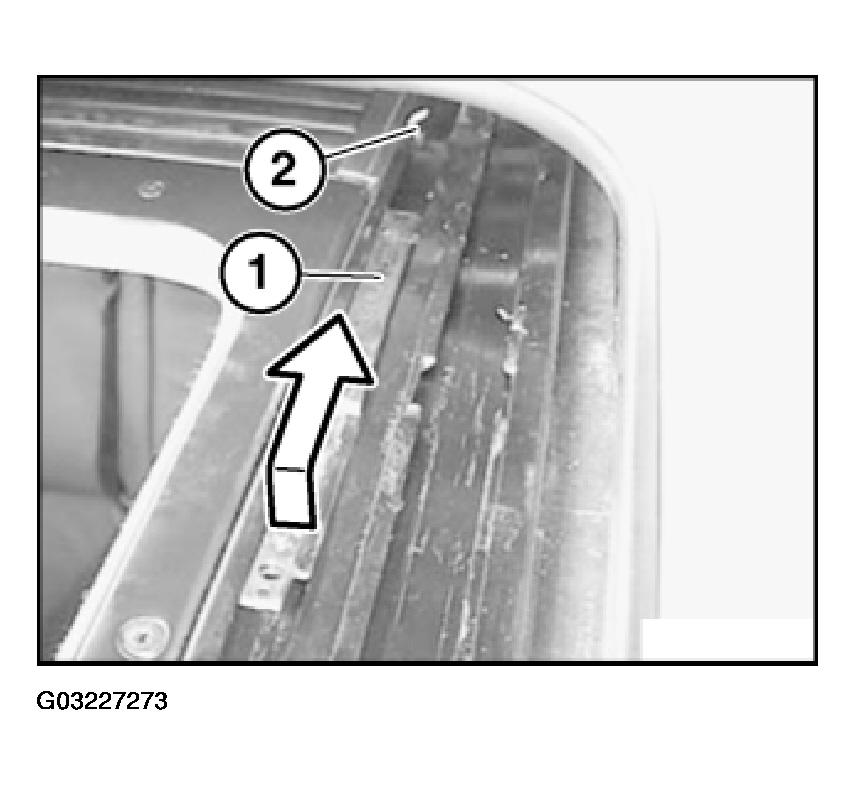

Press flexible lock (1) upwards and simultaneously slide downwards into installation aperture (2) (clear resistance).

Fig 3: Pressing Flexible Lock Upwards

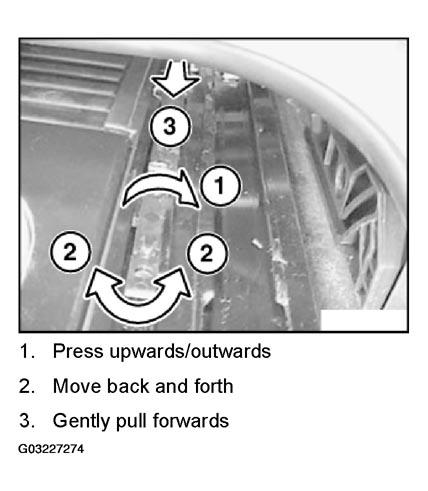

NOTE: The following work steps on the flexible lock must be carried out at the same time.

Fig 4: Removing Flexible Lock
