54 12 115 Removing and installing glass sliding/tilting sunroof lid: Removal:

Slowly slide roof-lining frame towards rear up to dimension (A).

DIMENSIONS

A	E38	80 mm
	E39, E53	70 mm

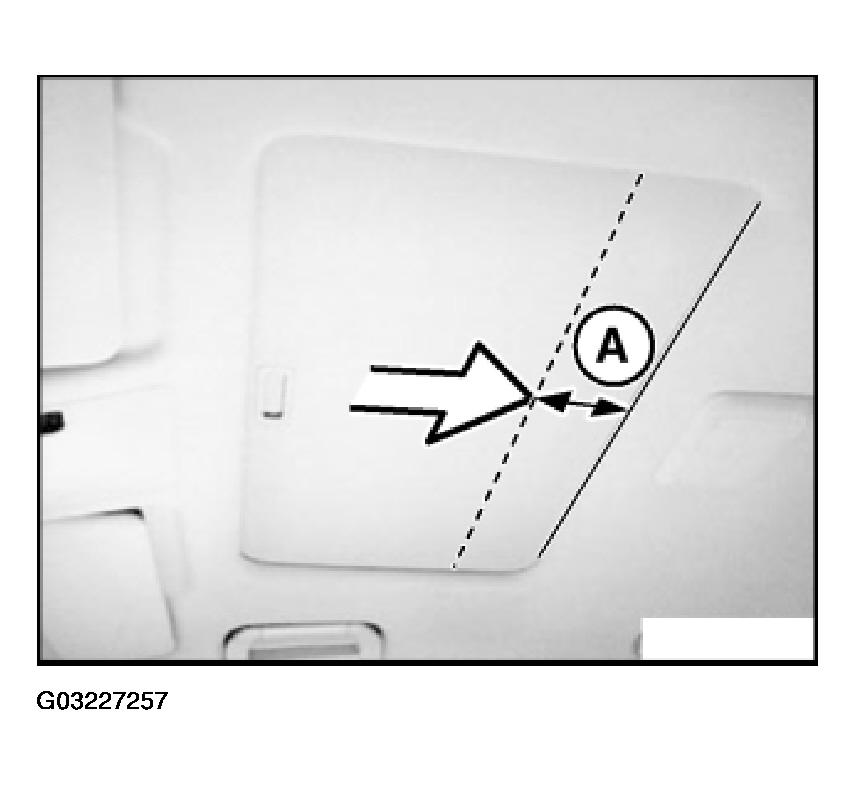

Fig 1: Sliding Roof-Lining Frame Towards Rear Up To Dimension A

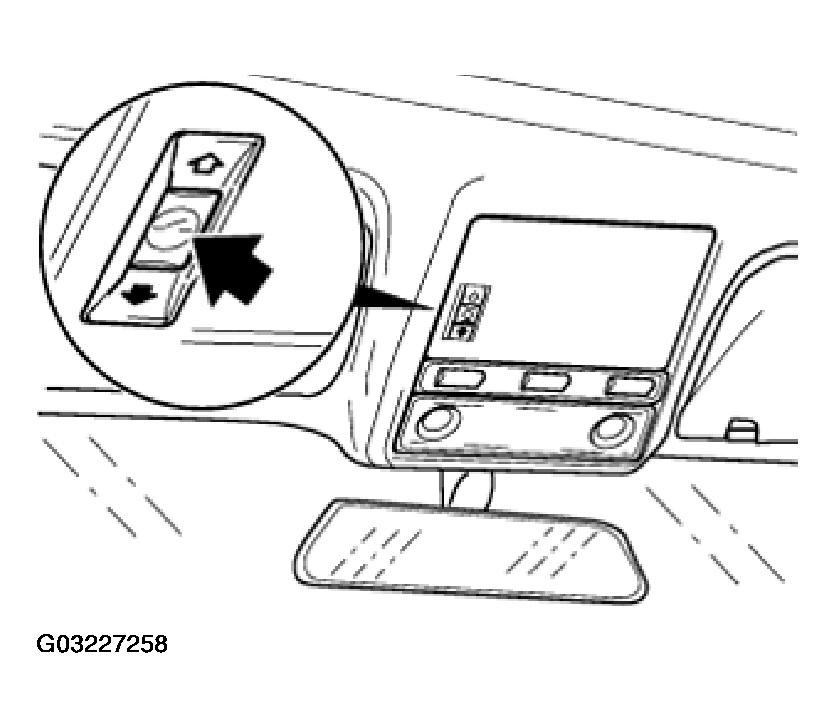

Fig 2: Pressing Switch

Press switch in direction of "raise position" (fan setting) until lid is raised to max. setting.

NOTE: Grasp the bellows by hand only at the first fold (1) (risk of damage).

Detach bellows starting from center (A) towards front and rear (B) from glass slide/tilt sunroof lid (2).

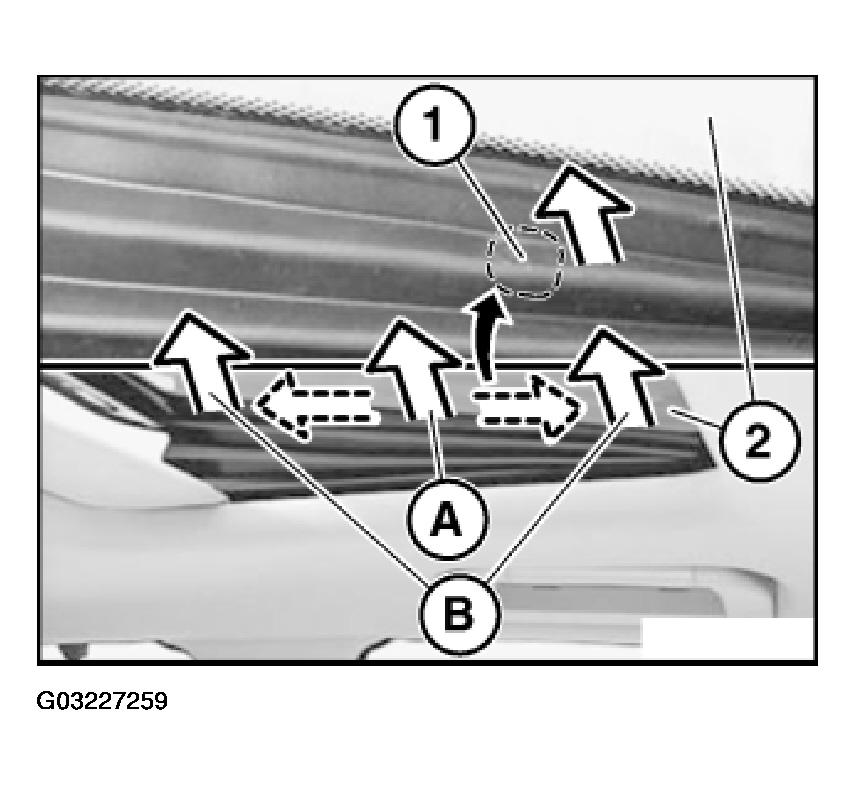

Fig 3: Detaching Bellows Starting From Center

Release screws (1) and (2) with special tool 00 2 130.

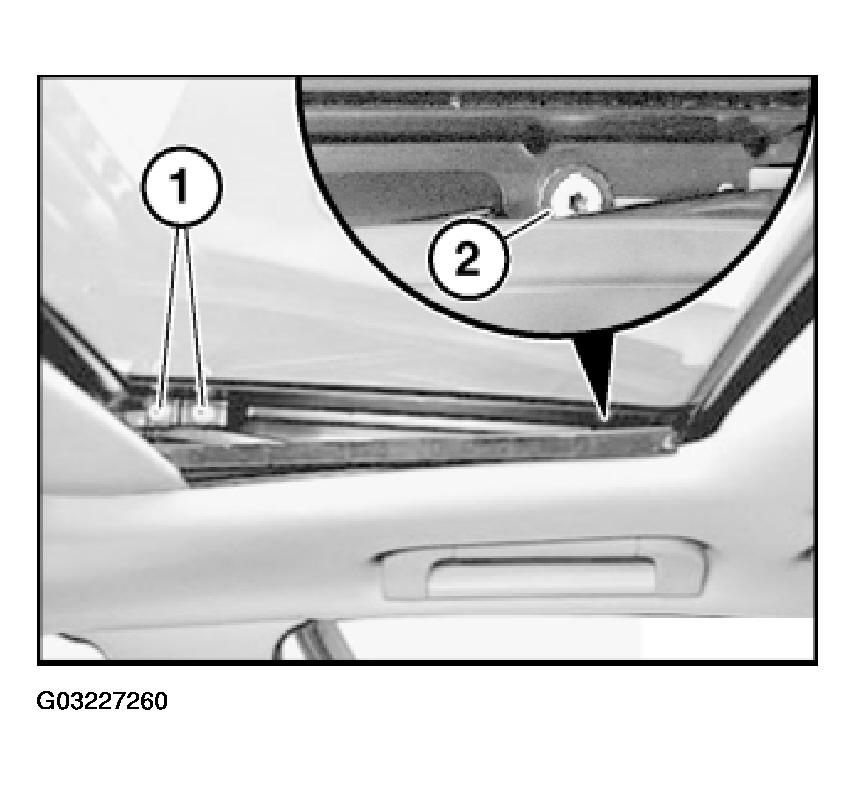

Fig 4: Releasing Screws (1) And (2) With Special Tool 00 2 130
