Learning characteristic curve:
E38 From 9/98; Replacement Of Drive Unit

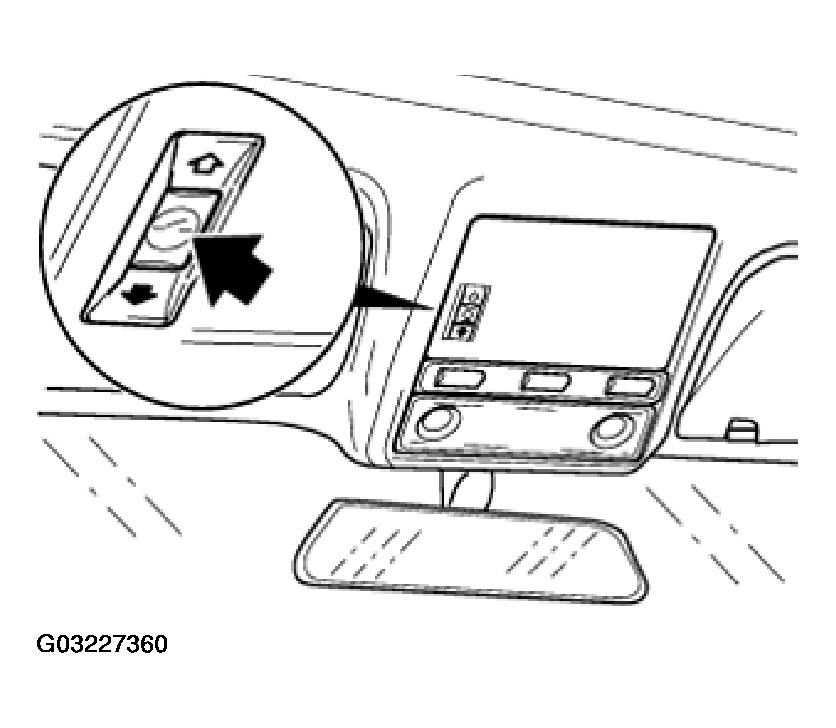

The curve is learned manually in the following steps:
- Release switch after normalization for max. 5 seconds.
- Then hold down the switch in the raising position direction until such time that the slide/tilt sunroof has returned to the closed position after a complete opening movement.
- This concludes learning of the curve. The switch can now be released.
NOTE:
Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
E38 Up To 9/98; Initial Equipment And Replacement Of Drive Unit
E38 From 9/98; Initial Equipment Of Drive Unit
The curve is determined by means of coding.
