52 25 560 Removing and installing / replacing valve housing on lumbar support for rear seat backrest (normal/ electric): Notes

(Rear seat removed).

Unfasten nut. Remove hoses (1 ... 2) and remaining units from valve housing.

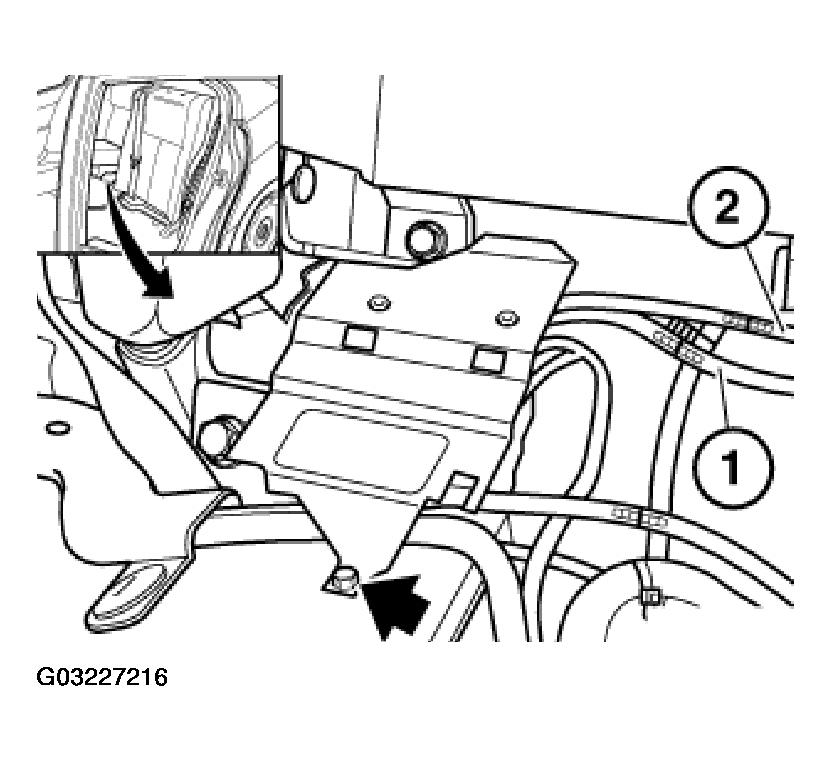

Fig 1: Removing Hoses From Valve Housing
