52 26 400 Replacing seat cover for rear seat (through-loading system): Notes

Remove rear seat.

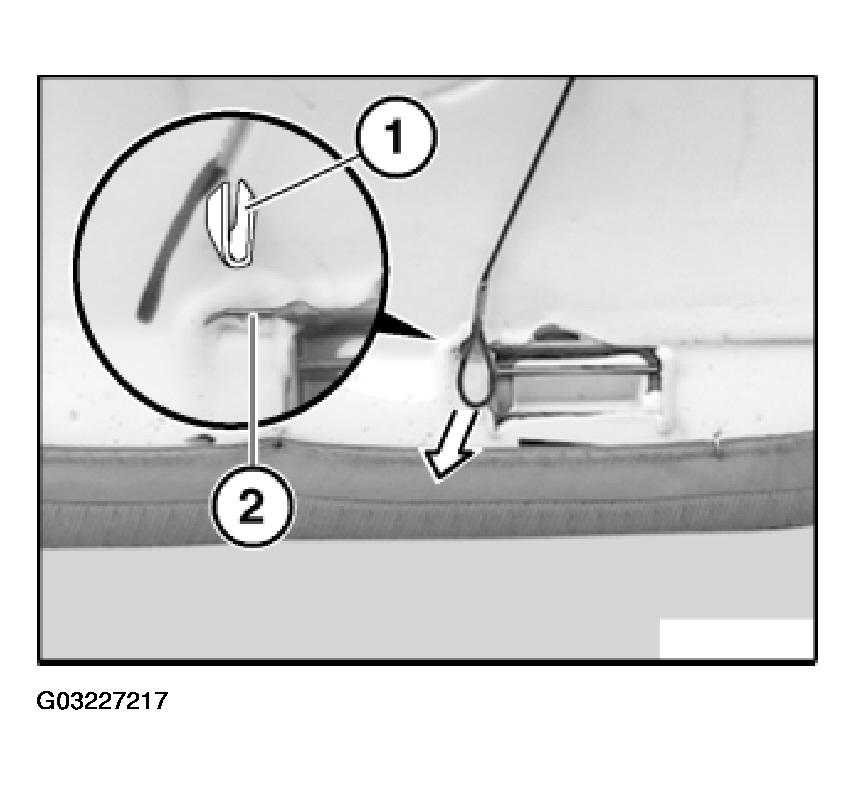

Feed tightening strap (1) out of wire (2).

Fig 1: Feeding Tightening Strap Out Of Wire
G03227217

Note position of clips.

Cut through or bend open all clips.

If possible, feed cover out of wire loop.

Carefully pull off cover and in so doing cut through or bend open clips of trim wires.

Remove all remnants of clips from cover and support.
