52 24 005 Removing and installing / replacing rear seat (normal): Notes
Rear seat with seat heating and/or electrically adjustable headrests:
CAUTION:
If necessary, disconnect connector connection prior to removal (risk of damage).
Rear seat with seat heating and/or electrically adjustable headrests:

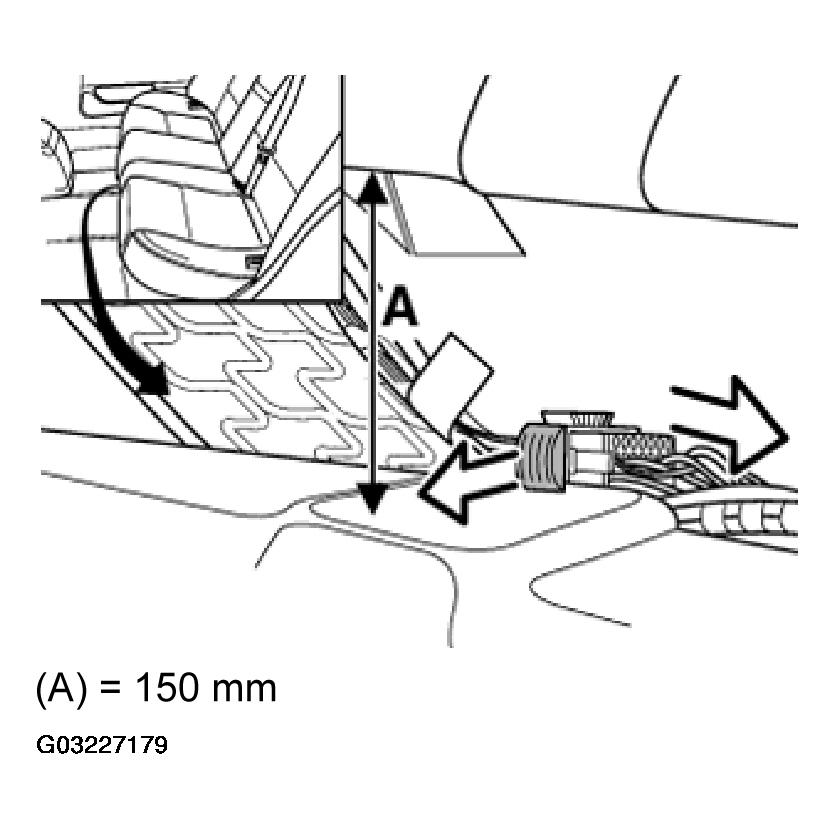

If necessary, unclip rear seat to maximum setting (dimension A), unlock connector and disconnect.
(A) = 150 mm.
