Replacing backrest cover:

Remove trim threads (1) from backrest cover. Cut new backrest cover to size and insert trim threads.

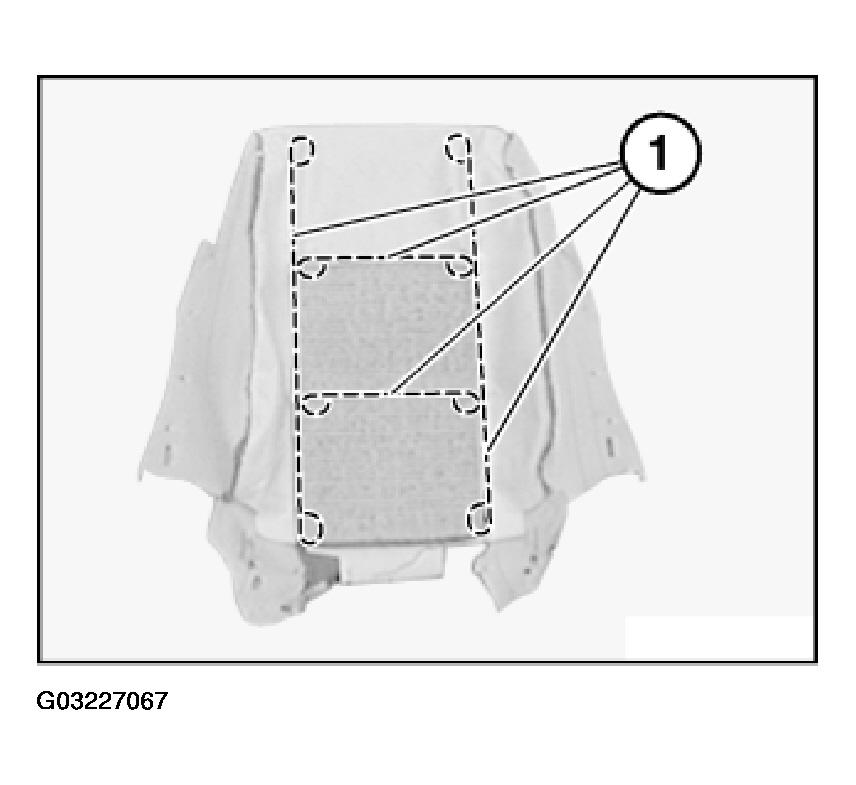

Fig 1: Removing Trim Threads From Backrest Cover

G03227067
