Only replace:

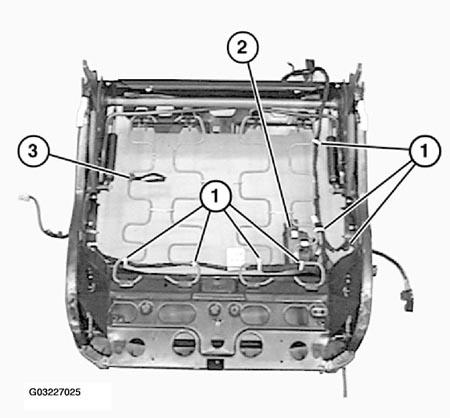

Fig 1: Removing Seat Cover With Support

G03227025

Unfasten cable tie (1), unclip connector (2) and remove wiring harness.

Remove rubber ring (3).
