52 13 020 Removing and installing / replacing seat frame on left/right front seat (normal/ manual): Installation:

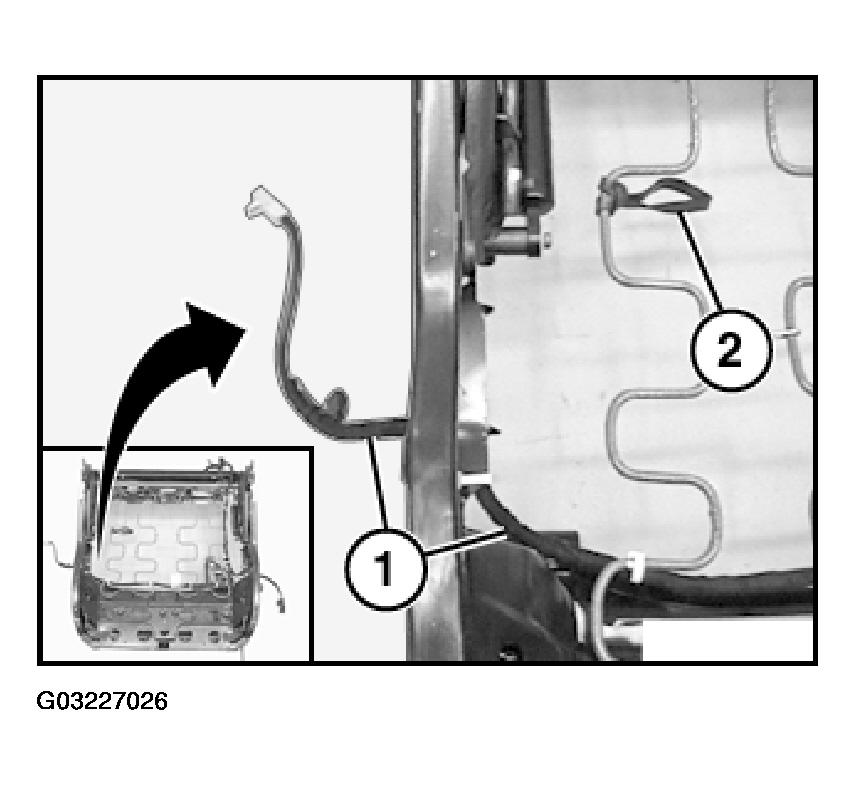

Note routing of line (1) for seatbelt tensioner.

Secure rubber ring (2).

Fig 1: Routing Of Line For Seatbelt Tensioner

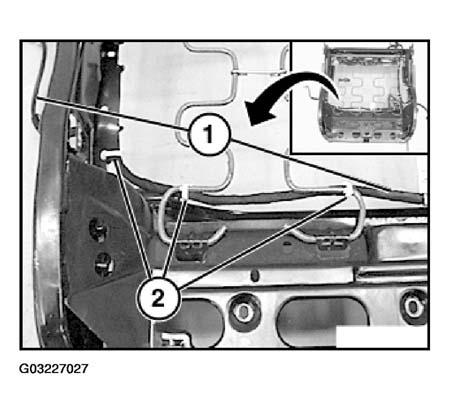

Secure line (1) for seatbelt tensioner with cable tie (2).

Fig 1: Securing Line For Seatbelt Tensioner With Cable Tie

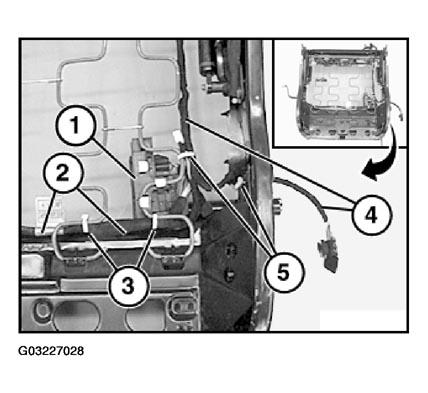

Unclip connector (1) and secure line (2) with cable tie (3).

Version with seat heating / lumbar support:

Secure line (4) with cable tie (5).

Fig 1: Securing Line With Cable Tie (Version With Seat Heating/Lumbar Support)

Version with seat heating:

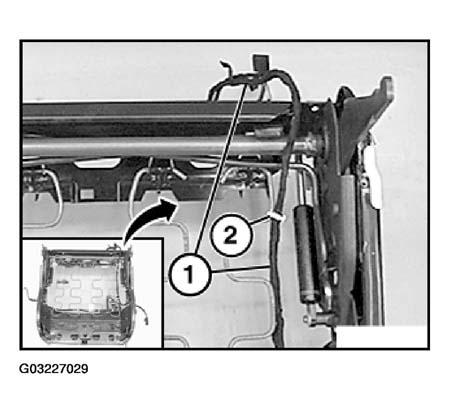

Secure line (1) with cable tie (2).

Fig 1: Securing Line With Cable Tie (Version With Seat Heating)
