52 13 010 Removing and installing / replacing both seat rails on left or right front seat (normal / manual): Notes

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)

Remove seatbelt tensioner.

Remove Bowden cable for longitudinal adjustment, refer to 52 13 014 REPLACING BOWDEN CABLE FOR LONGITUDINAL ADJUSTMENT ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL)  .

Unfasten clips from rubber belt (1).

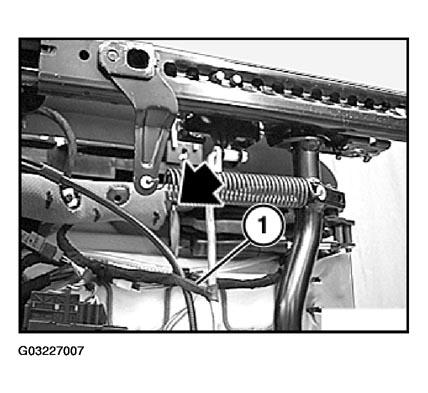

Fig 1: Removing Clips From Rubber Belt
G03227007
