Replacement of sensor mat (only passenger seat):

Remove sensor mat (1) for passenger seat allocation identification, ensuring that no large areas of foam at damaged marked points (2) (malfunction of passenger seat allocation identification). Guide connector through the bore (3).

Folds as illustrated in diagram are not permitted!

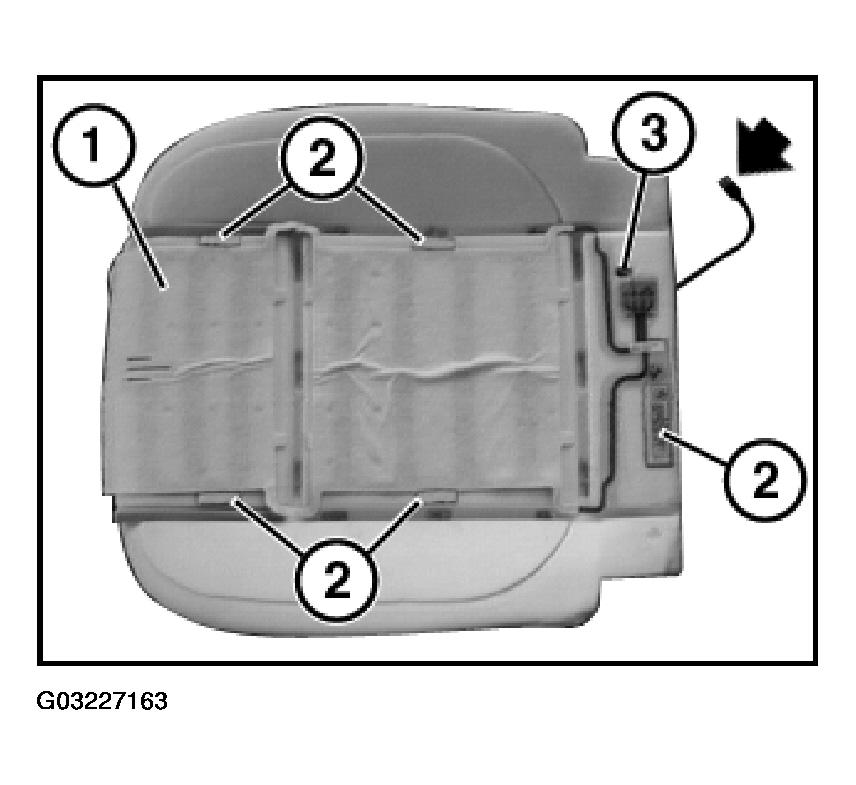

Fig 1: Removing Sensor Mat For Passenger Seat
