52 17 200 Removing and installing/replacing top rear panel on front seat backrest (luxury seat): Notes

NOTE: This is also applicable to L7 driver's seat with video system in rear compartment.

Move back-rest adjustment as far forward as possible.

NOTE: If the back-rest adjustment unit is defective and in rear position:

Pull both bottom corners of rear panel (1) (one after the other where applicable) downwards and backwards (springs disconnected at bottom).

Pull rear panel upwards/backwards (2) to remove.

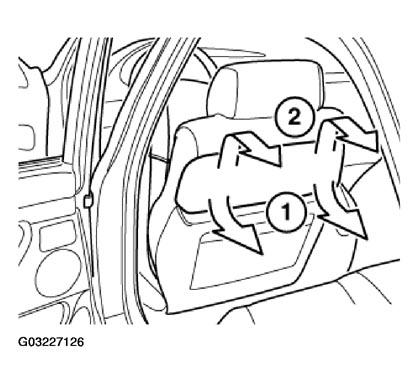

Fig 1: Pulling Both Bottom Corners Of Rear Panel
