52 17 025 Removing and installing/replacing drive for active seat, left or right: Notes

The active seat has diagnostic capabilities.

The system voltage must be > 11.6 volts.

If necessary, connect DIS Tester or MoDiC III and reset fault memory.

Check function.

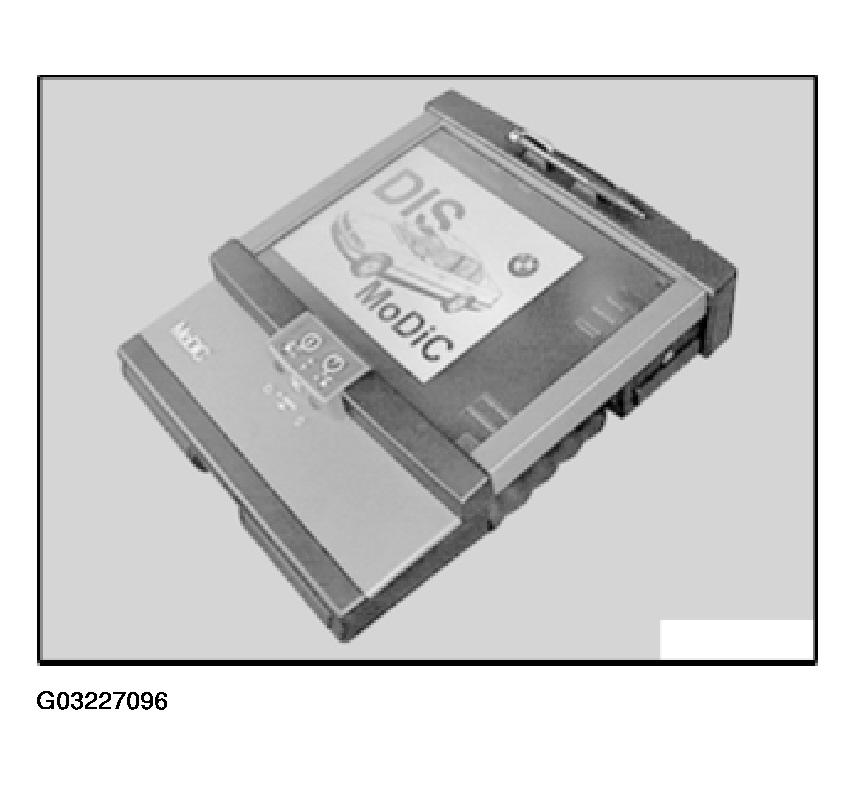

Fig 1: Identifying DIS Tester Or MoDiC III And Reset Fault Memory

Move backrest forward to maximum extent.

Move front seat back/upwards until screws (1) are accessible.

Release screws (1) on front seat.

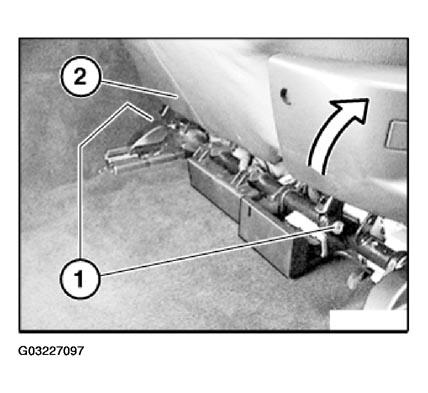

Fig 2: Releasing Screws On Front Seat
