63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: Follow instructions for handling light bulbs (exterior lights).

Unhook fog lamp with a screwdriver through upper opening and remove in direction of arrow.

Disconnect plug connection underneath.

Disconnect spring wire clip and remove light bulb.

Installation:

Note type of bulb. Refer to FOG LIGHTS, AUXILIARY .

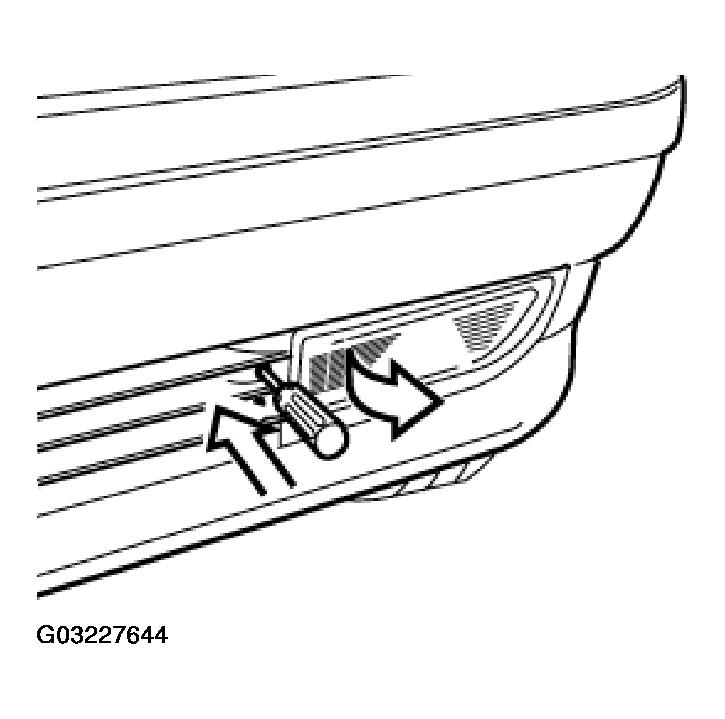

Fig 1: Disconnecting Spring Wire Clip
G03227644
