63 10 014 Adjusting foglights
NOTE:
Comply with test preconditions. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT
.
Adjustment dimension (e) for foglights is 20 cm.

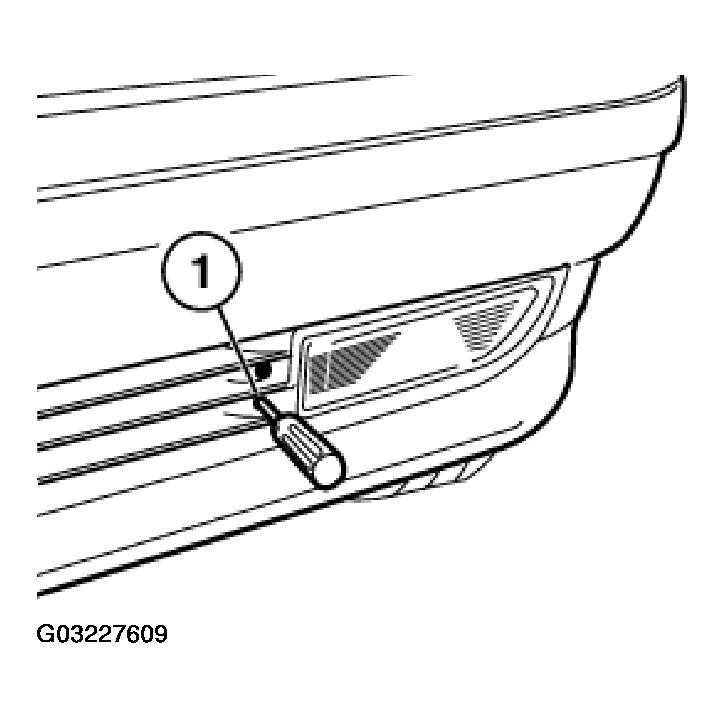

Foglight height adjustment at adjusting screw (1) at lower opening of air inlet grill.
