65 52 013 Removing and installing complete on-board monitor (widescreen)

Lower panel for on-board monitor (control panel).

NOTE: Panel for on-board monitor (control panel) returns to its initial position after 15 seconds.

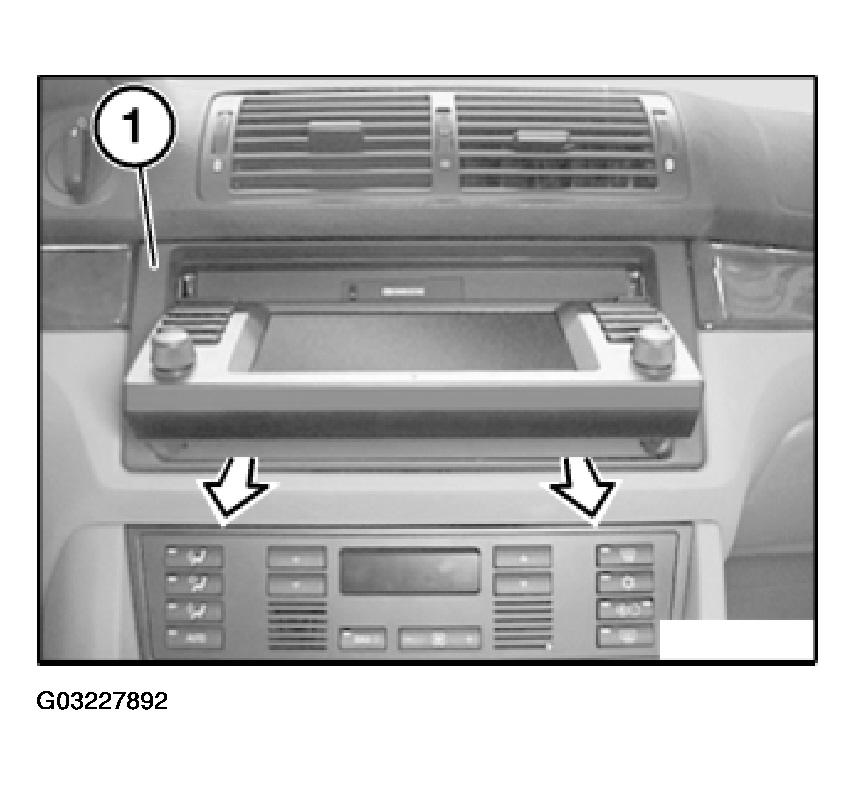

Detach frame for on-board monitor (1) in direction of arrow.

Fig 1: Detaching Frame For On-Board Monitor In Direction Of Arrow

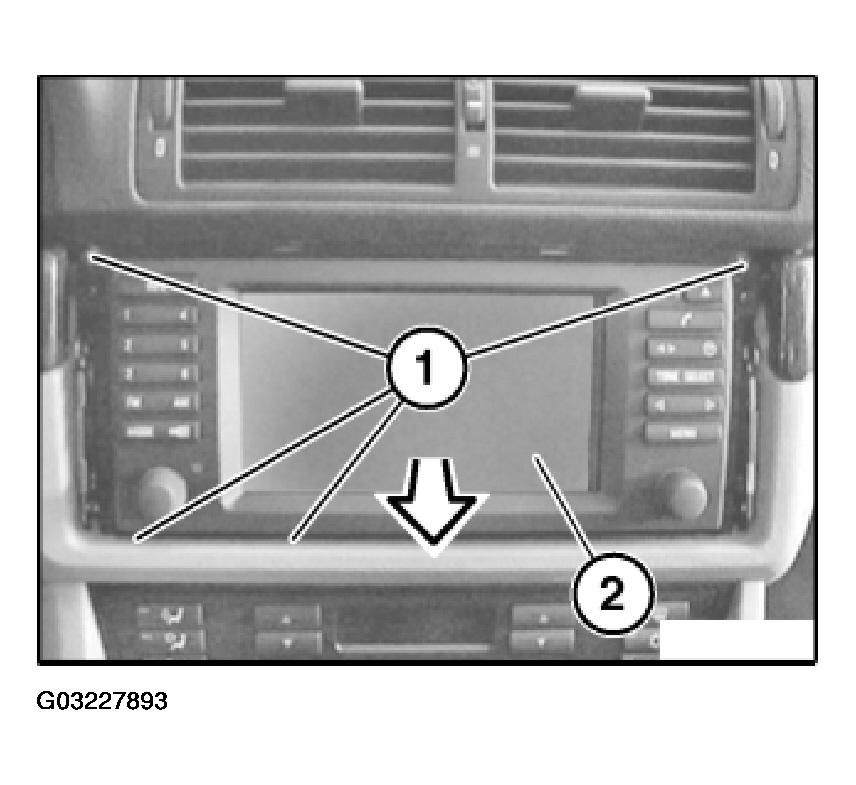

Release screws (1).

Pull out complete on-board monitor (2) in direction of arrow.

Fig 2: Pulling Out Complete On-Board Monitor In Direction Of Arrow

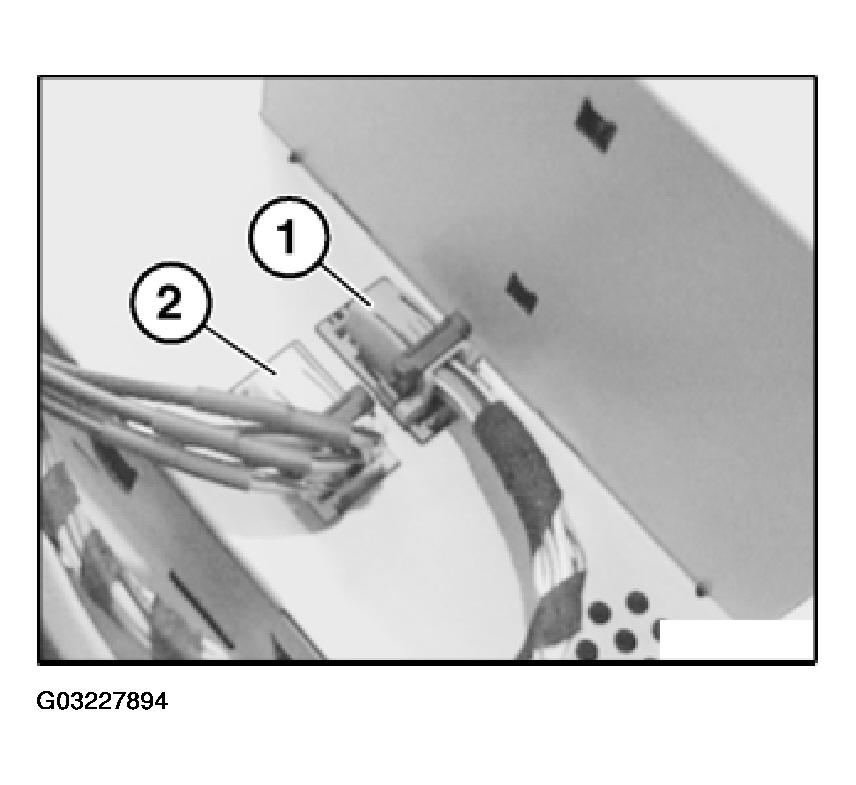

Unlock plug connections (1) and (2) and disconnect.

Fig 3: Unlocking Plug Connections (1) And (2) And Disconnecting

Remove complete on-board monitor.
