65 11 055 Removing and installing/replacing radio receiver (with board monitor): Installation:

Use the correct screw length. Screws are 12 mm long and have washers of (10 mm "bore"). All other screws are 14 mm long and have washers of (15 mm "bore").

Pull off connectors. Release screw and detach receiver from bracket.

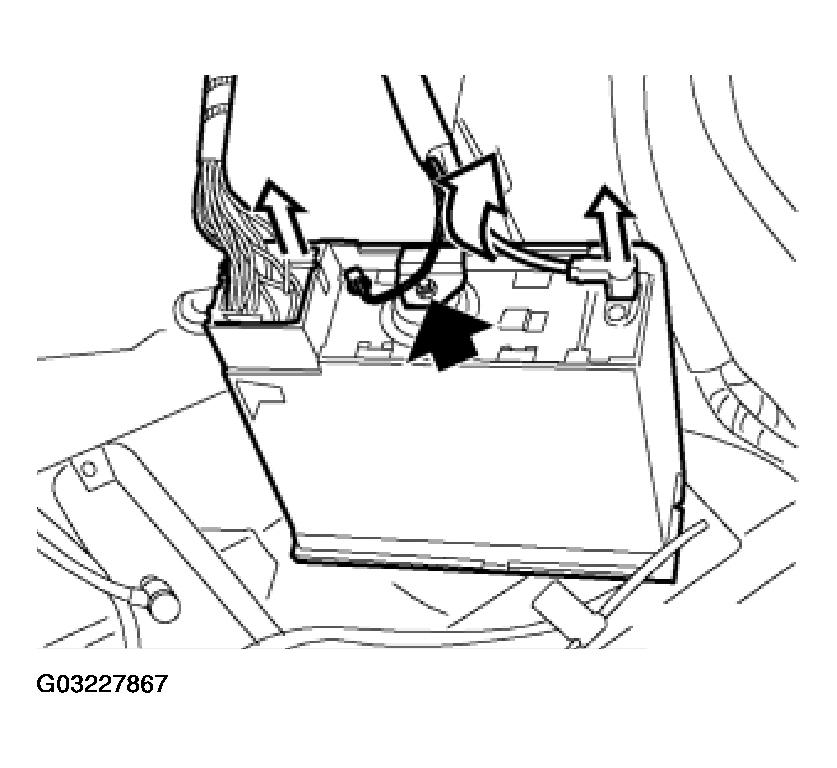

Fig 1: Pulling Off Connectors And Releasing Screw And Detaching Receiver From Bracket
