66 31 005 Removing and installing/replacing ACC sensor

Necessary preliminary tasks:

Release screws (1) and remove air duct.

Press electric leads out of mountings.

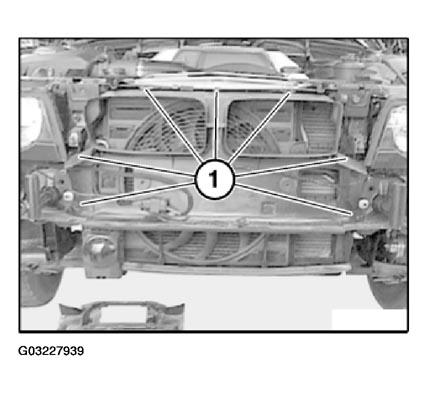

Fig 1: Removing Air Duct

Release screws (1) and disconnect plug connection (2) under ACC sensor.

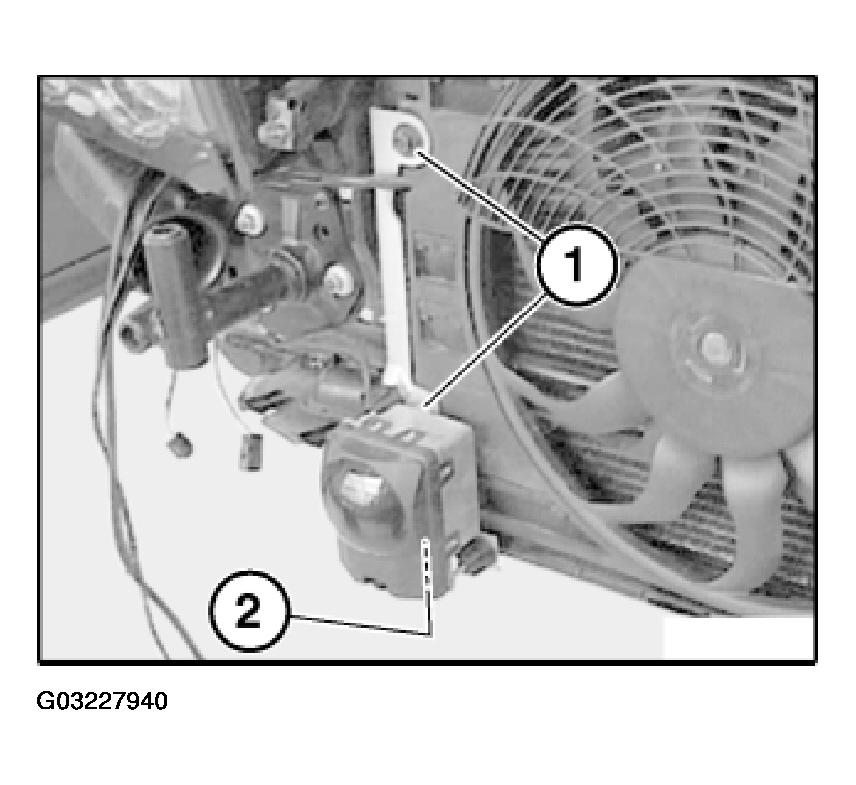

Fig 2: Disconnecting Plug Connection Under ACC Sensor

NOTE: Following work steps must be carried out: During removal and installation:

Initialize ACC sensor; to do so, work through test module "ACC initialization" (service functions).

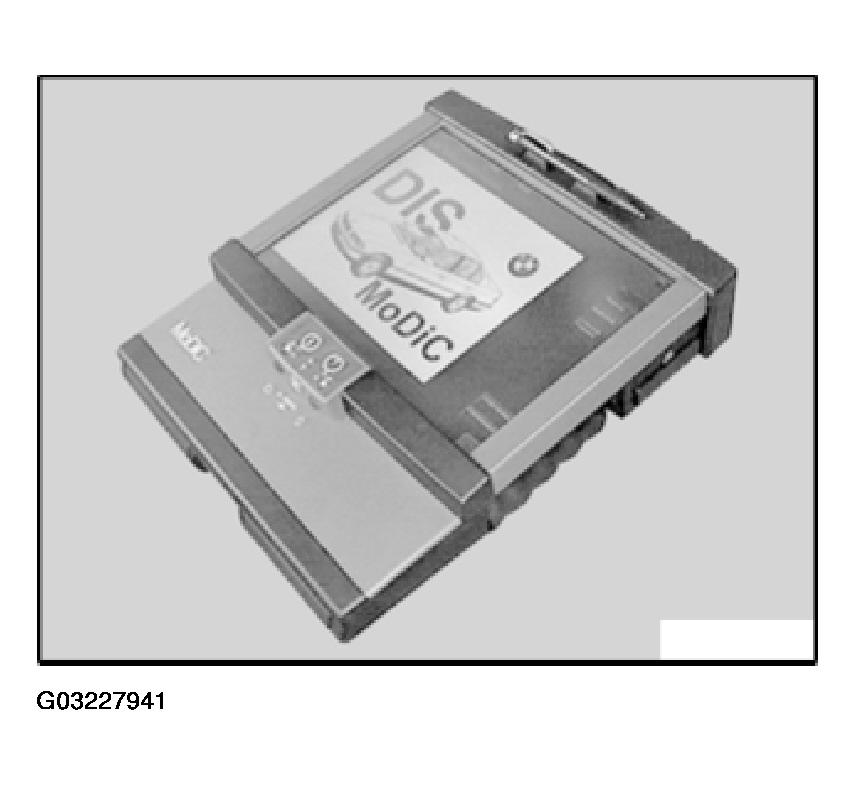

Carry out ACC sensor adjustment with MoDiC or DIS.

Additionally during replacement:
