Oil Pump

The duocentric oil pump with oil pressure regulator for the M52 TU engine is integrated into the oil deflector in the sump.

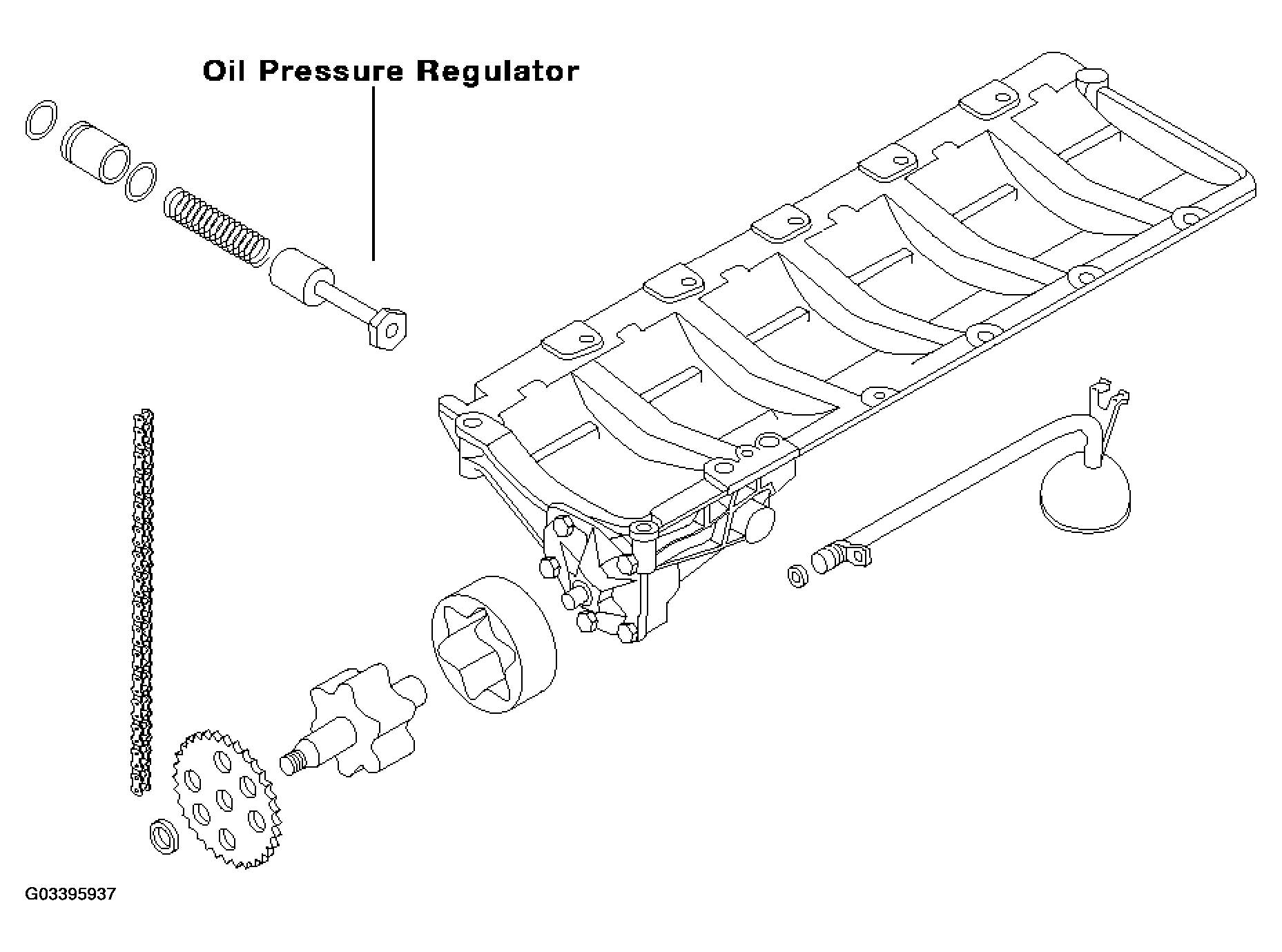

Fig 1: Exploded View Of Oil Pressure Regulator And Oil Pump
G03395937Courtesy of BMW OF NORTH AMERICA, INC.
