Cylinder Head

The cylinder head has been redesigned in the area of the cooling passages. The coolant circulation through the head has been optimized, allowing the head to operate at cooler temperatures.

The front of the cylinder head has been redesigned for the double VANOS system.

The air intake ports have been redesigned in conjunction with the redesigned intake manifold.

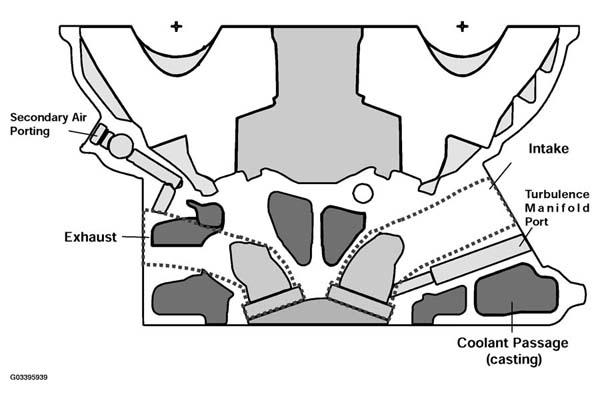

Fig 1: Sectional View Of Cylinder Head
G03395939Courtesy of BMW OF NORTH AMERICA, INC.
