323Ci 2D Convertible, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Engine Mechanical
>>
Cooling System (Mechanical)
>>
Specifications & Drive Belt Routing
>>
Drive Belt Routing
>>
Vehicles With Two Poly-V Belts
>>
Drive Belt Routing (M52, M54 & S52)
Drive Belt Routing (M52, M54 & S52)

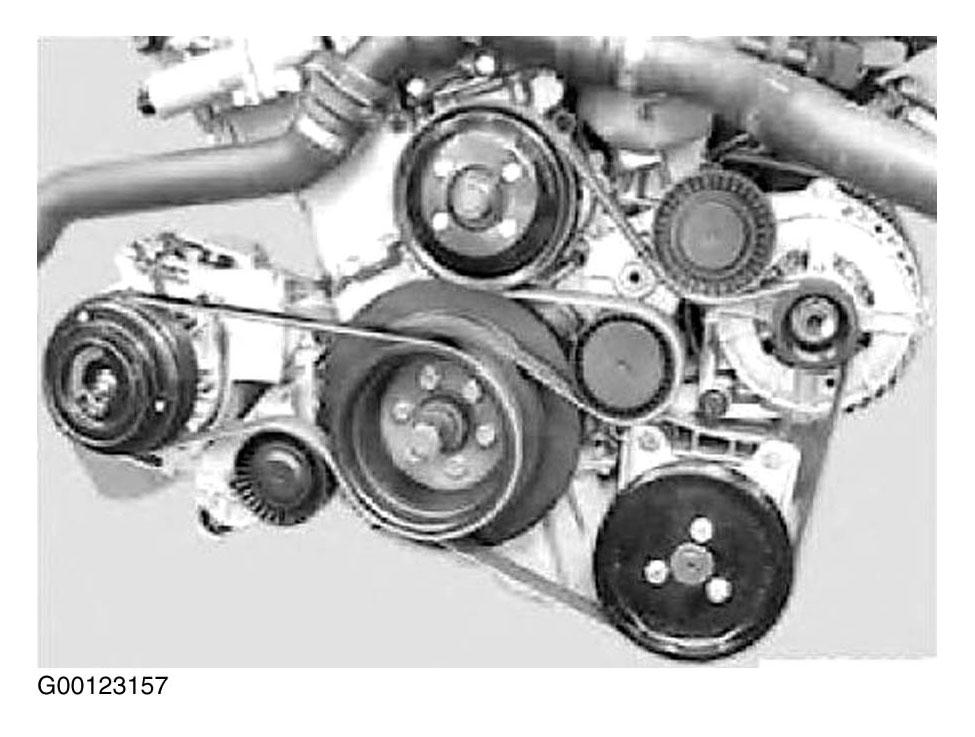

Fig 1: Alternator Drive Belt Routing Without Auxiliary Tensioning Roller (M52, M54 & S52)
Courtesy of BMW OF NORTH AMERICA, INC.

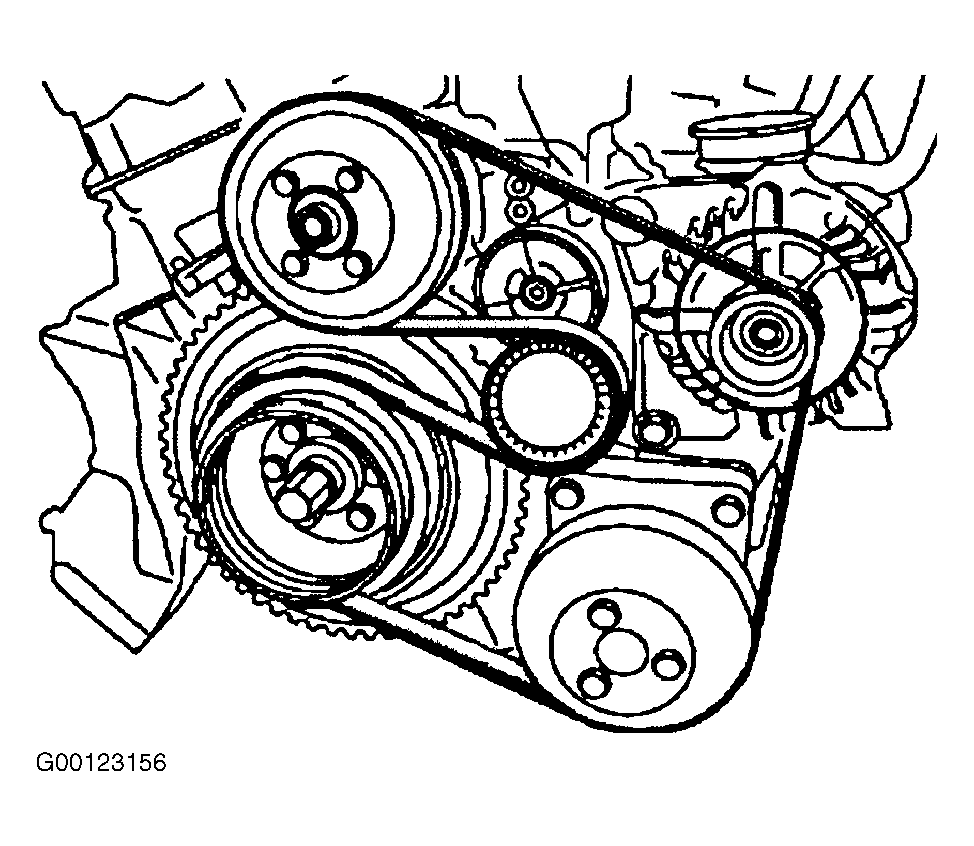

Fig 2: Alternator Drive Belt Routing With Auxiliary Tensioning Roller (M52, M54 & S52)
Courtesy of BMW OF NORTH AMERICA, INC.

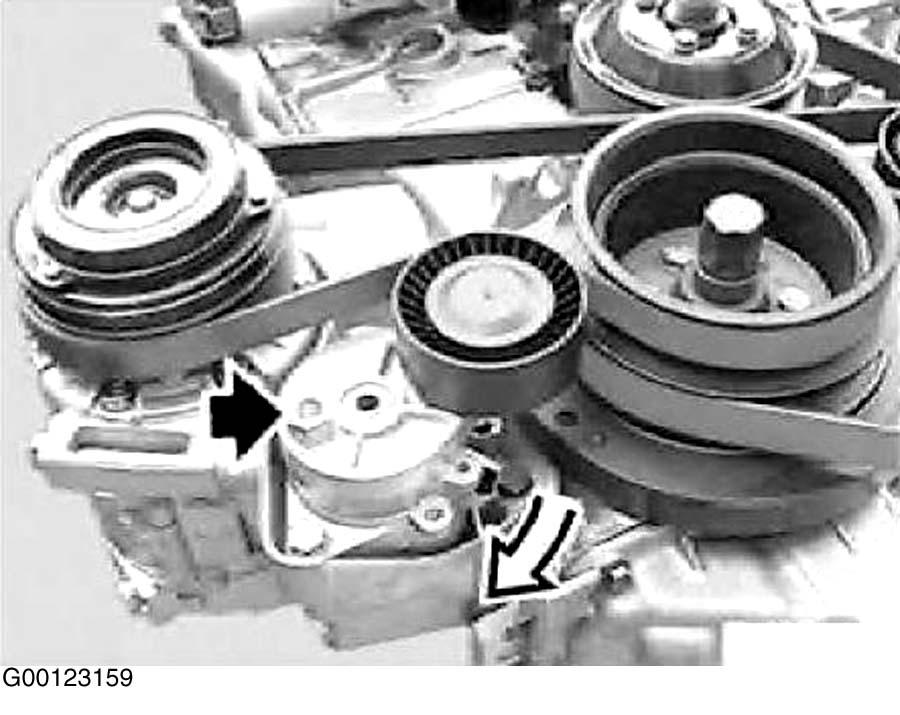

Fig 3: A/C Compressor Drive Belt Routing With Hydraulic Tension Jack (M52, M54 & S52)
Courtesy of BMW OF NORTH AMERICA, INC.

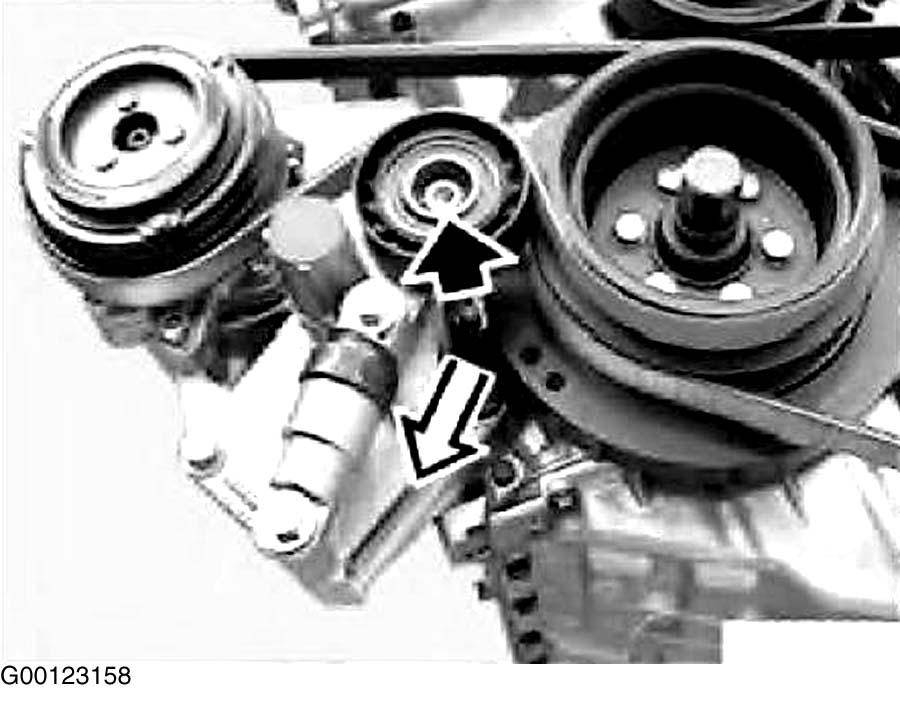

Fig 4: A/C Compressor Drive Belt Routing With Mechanical Tension Jack (M52, M54 & S52)
Courtesy of BMW OF NORTH AMERICA, INC.
