Electronics Carrier

The electronics carrier is located behind the glove box and contains various control modules and relay. Depending upon equipment levels and options, the carrier will contain different modules.

There are some modules and relays which will be present regardless of equipment, these include the General Module, fuel pump relay, horn relay, foglight relay and the blower relay for IHKA.

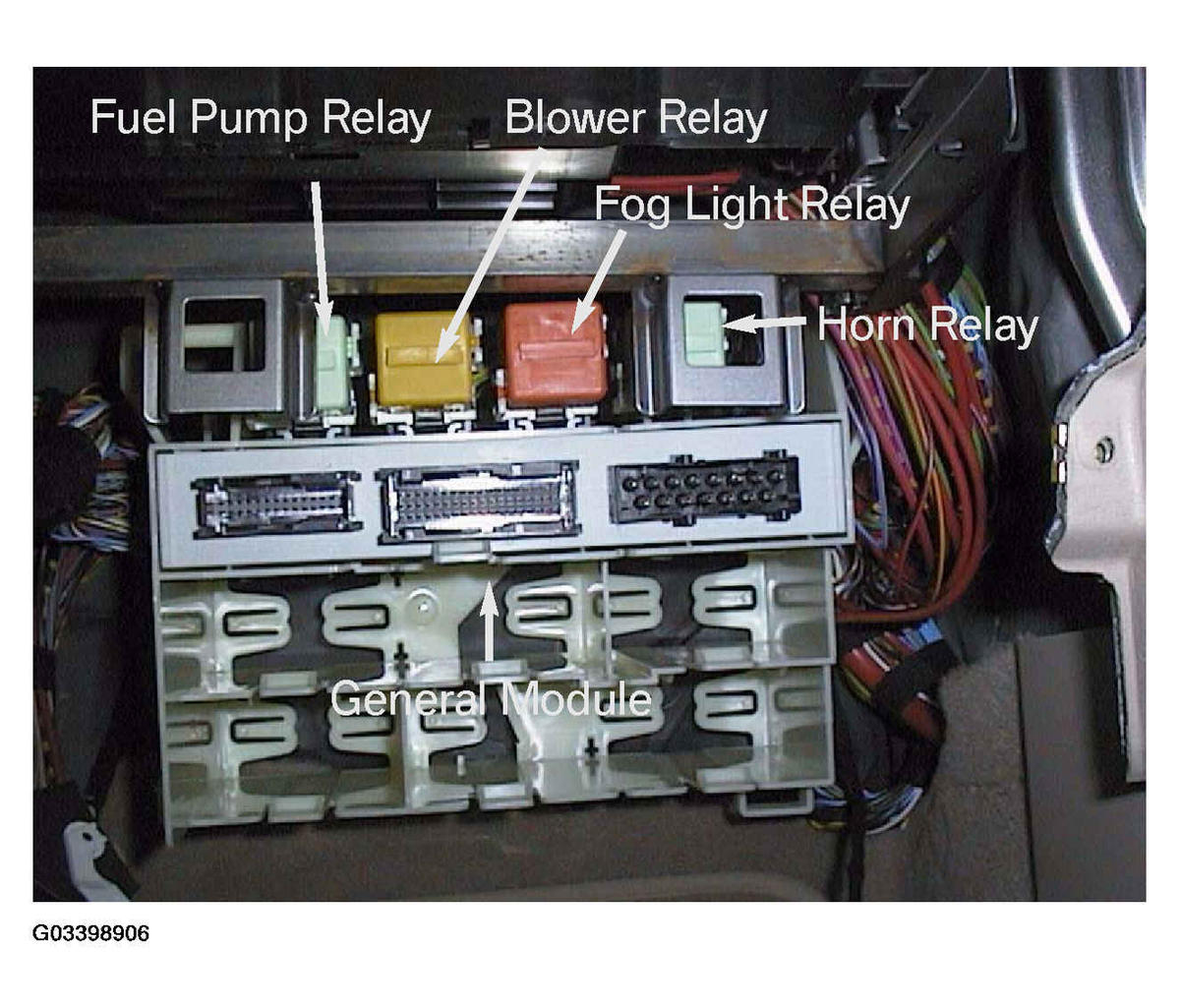

Fig 1: Identifying Electronics Carrier
G03398906Courtesy of BMW OF NORTH AMERICA, INC.
