Fuses Behind Glove Box

To locate fuses behind glove box, see Fig 1. Fuses behind glove box are:

• F102 - 80 Amp - DME Motor Electronics
• F104 - 100 Amp - Preheat Relay
• F105 - 50 Amp - Ignition Switch
• F106 - 50 Amp - Ignition Switch, Light Switching Center Control Unit
• F107 - 50 Amp - Light Switching Center Control Unit, Trailer Module

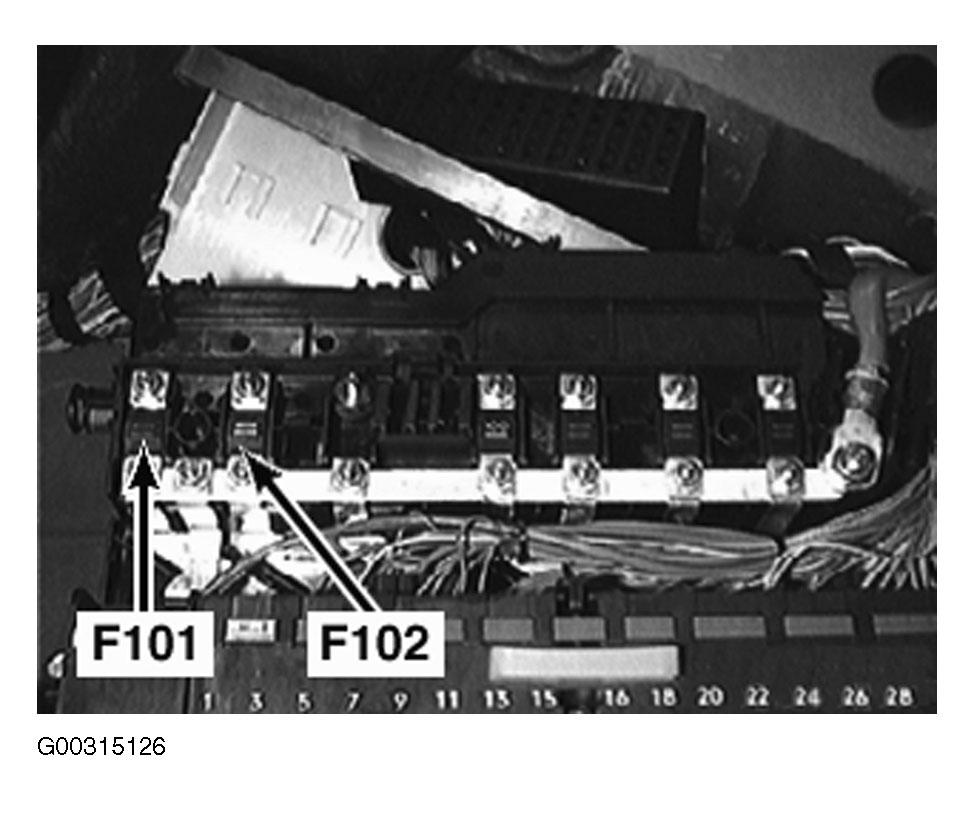

Fig 1: Locating Fuses Behind Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.
