Storage Compartment Cover Lock Hall Sensors

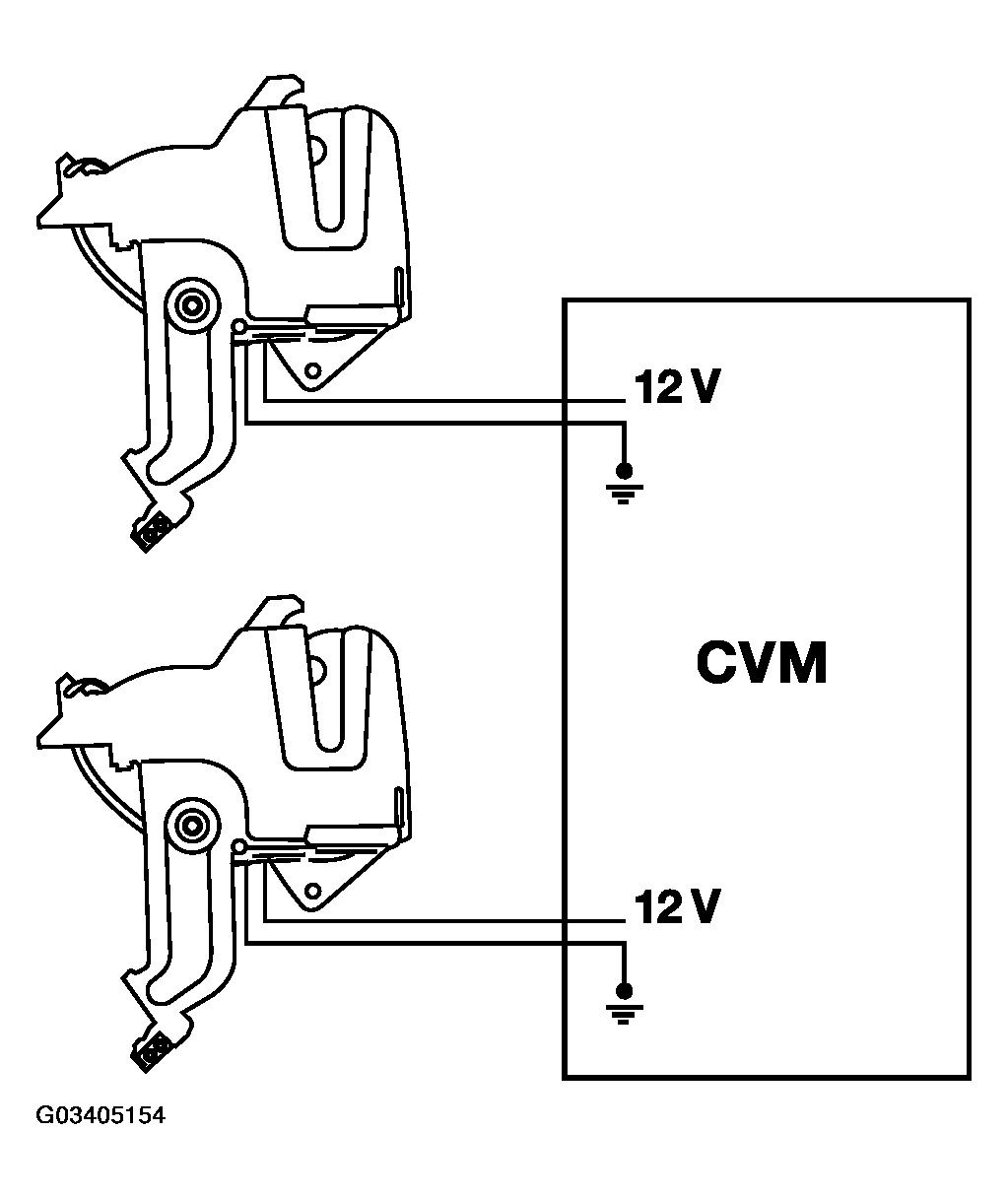

There are two storage compartment cover lock hall sensor switches, one mounted on each storage cover lock. The switches receive power and ground from the CVM. Each switch input provides a high signal when the cover is unlocked and the cover is raised by the hydraulic cylinders far enough to clear the latches.
When the storage cover is completely lowered by the hydraulic cylinders, the hall sensors send a signal to the CVM. The CVM then signals the GM to relock the storage cover.
