Cowl Lock and Tension Point Hall Sensors

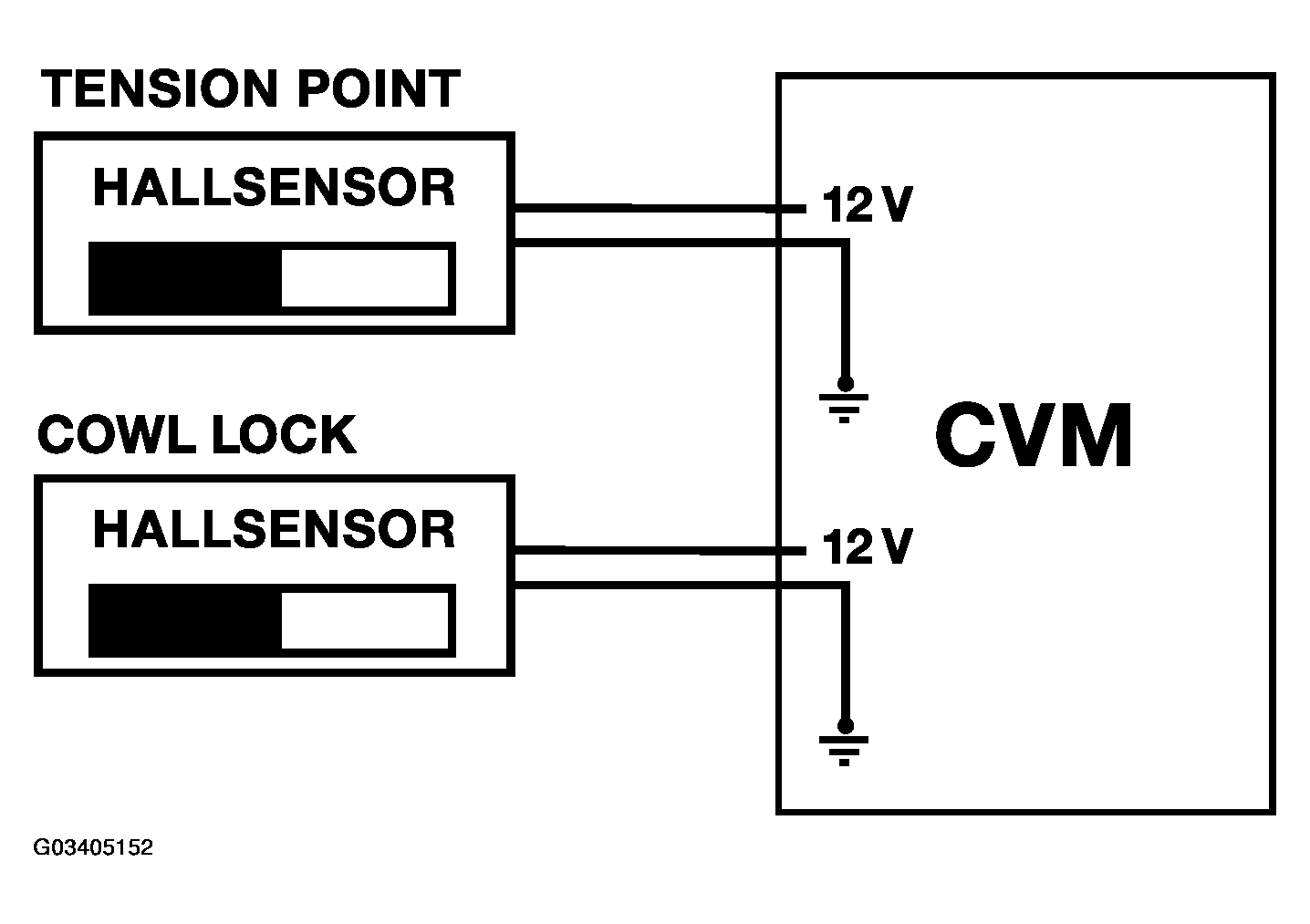

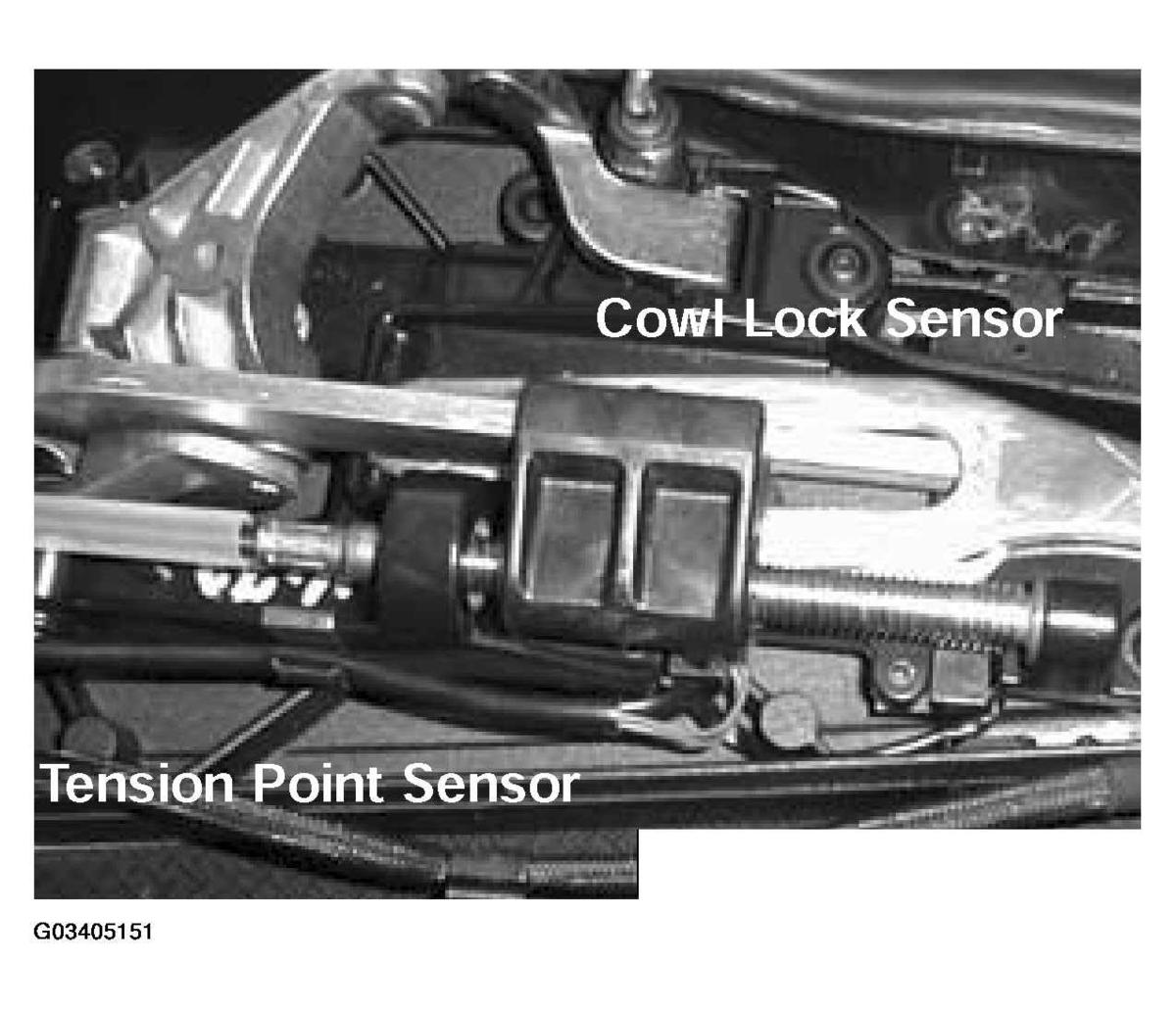

Two hall sensor switches are installed on the left side top lock drive assembly. Both sensors receive power and ground from the CVM. One switch is the soft top locked to the windshield frame input (cowl lock). The second switch is the top frame raised past the tension point input. As the slide assembly on the worm gear moves, it covers and uncovers the hall sensors to cause the high/low switching to take place.
The cowl switch input provides a low signal when the top frame is unlocked from the windshield (LED in the soft top switch will start to flash).
The tension point switch input provides a high signal when the top frame is raised past the tension point.
