Removal & Installation (5-Series Wagon)

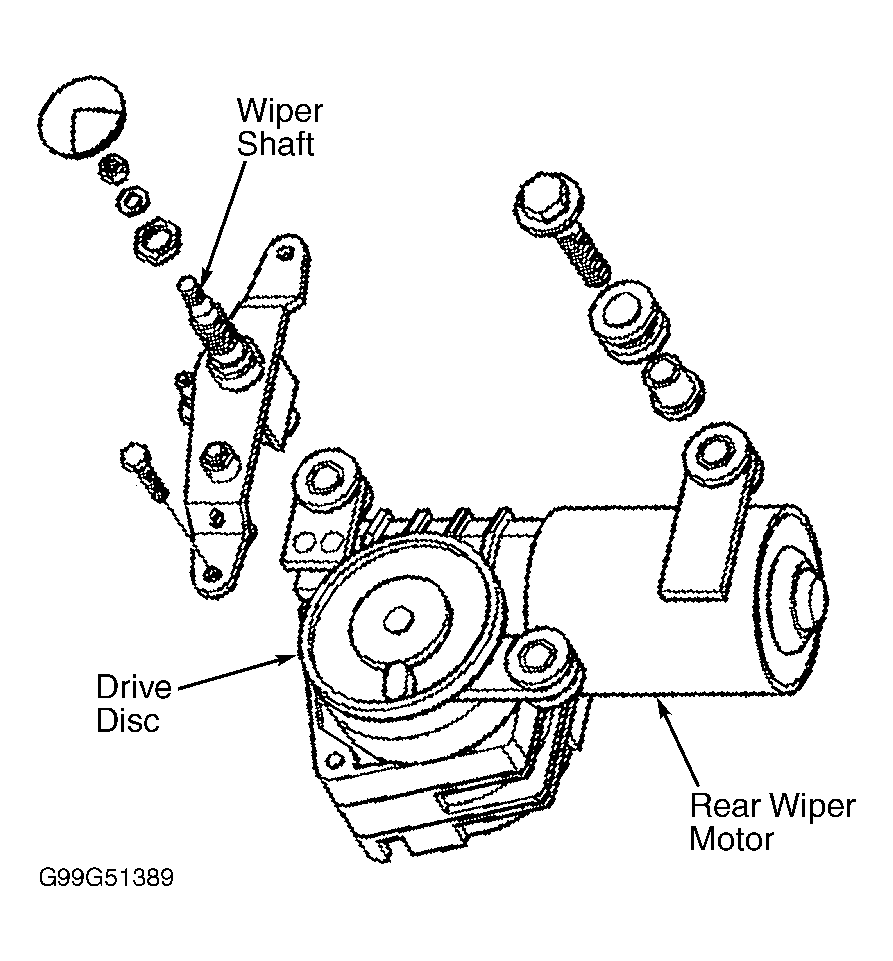

Remove tailgate trim panel. Disconnect rear wiper motor electrical connectors. Cut cable ties attaching wiring harness to wiper motor. Remove 3 attaching screws and remove rear wiper motor from vehicle. To install, reverse removal procedure. Align center of wiper motor drive disk with center of wiper shaft axis. See Fig 1 .
