Removal & Installation (3-Series, 5-Series & 7-Series)

Remove lower steering column cover. Unlock connector from ignition starter switch. See Fig 1Disconnect connector. Remove protective paint. Remove headless screws. See Fig 2. Remove ignition switch. To install, reverse removal procedure. Secure headless screws with locking compound.

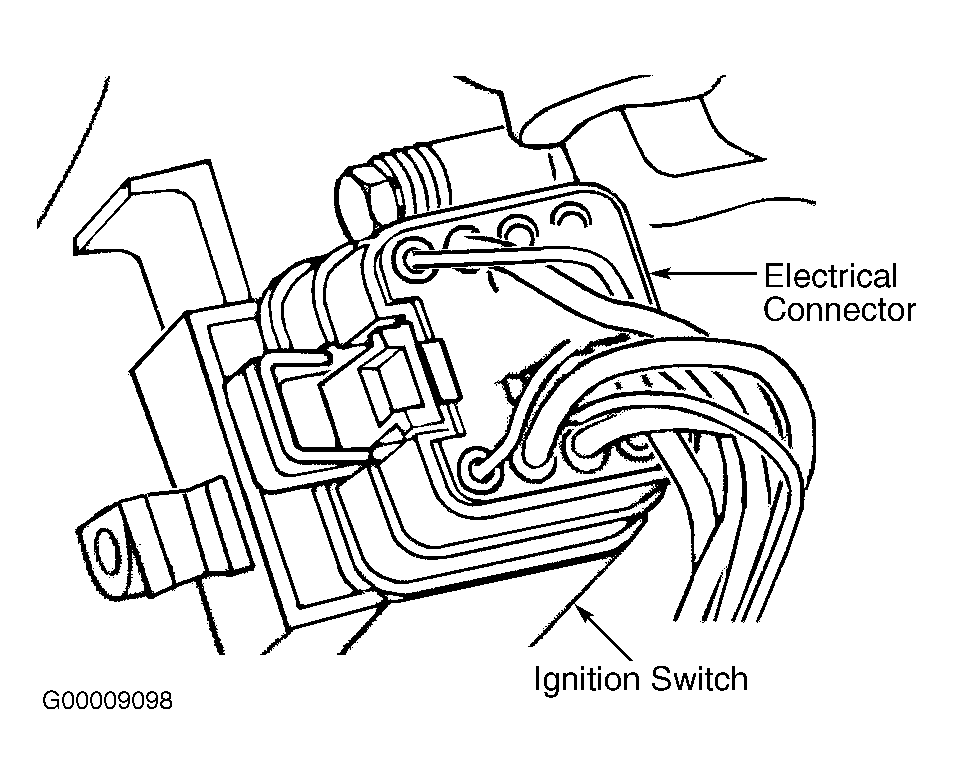

Fig 1: Removing Ignition Switch Electrical Connector

Courtesy of BMW OF NORTH AMERICA, INC.

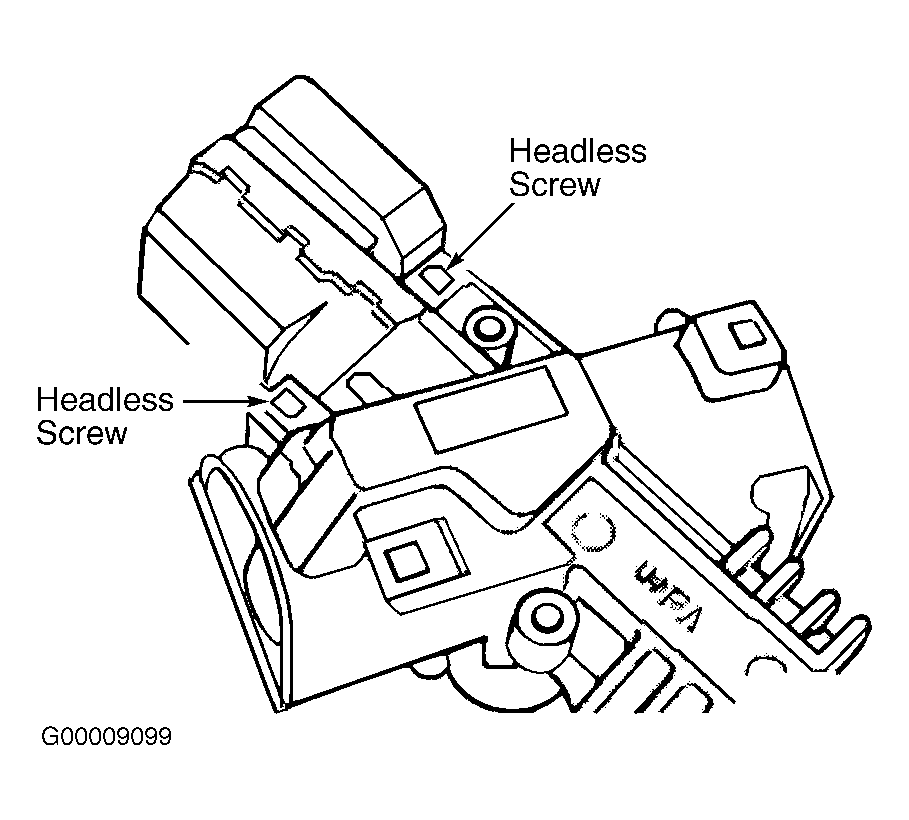

Fig 2: Removing Ignition Switch Headless Screws

Courtesy of BMW OF NORTH AMERICA, INC.
