62 11 210 Replacing instrument cluster electronics

1. Remove instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER

Unfasten locking unit, fold over retaining bracket and remove connector.

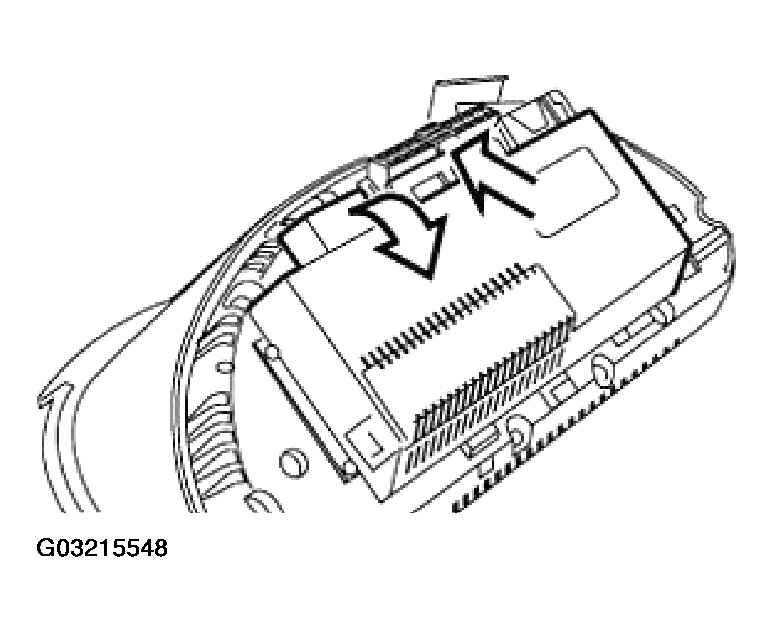

Fig 1: Unfastening Locking Unit Fold Over Retaining Bracket & Removing Connector

Unfasten locking unit, slide electronics module sideways and lift out.

Installation:

1. Encode electronic unit once again after replacement, refer to Diagnosis Encoding

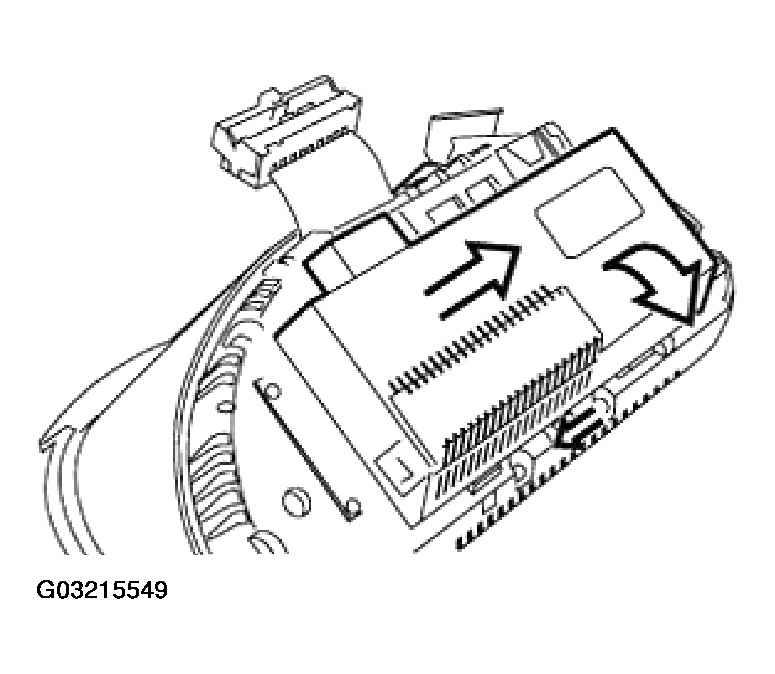

   Fig 2: Unfastening Locking Unit Slide Electronics Module Sideways & Lifting Out
