84 11 530 Removing and installing/replacing interface for D-Network car phone

Remove eject box (mobile phone).

Remove interface (1) in direction of arrow.

Installation:

Snap lug (2) into opening (3).

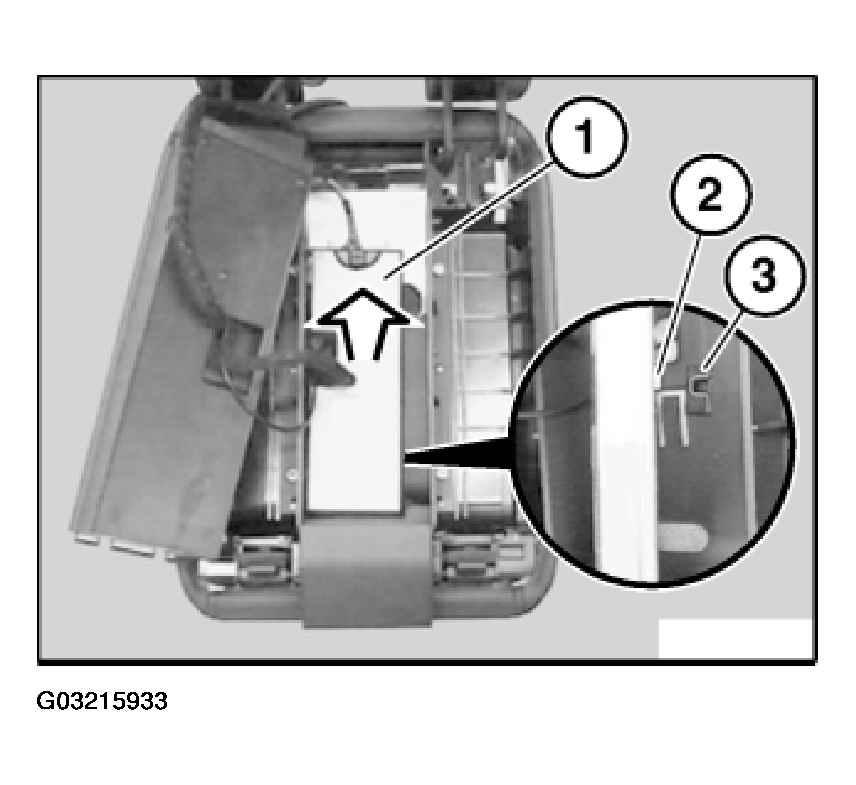

Fig 1: Removing Interface
G03215933
