84 11 510 Removing and installing / replacing eject box

Fold up left and right armrests.

If necessary, remove telephone handset.

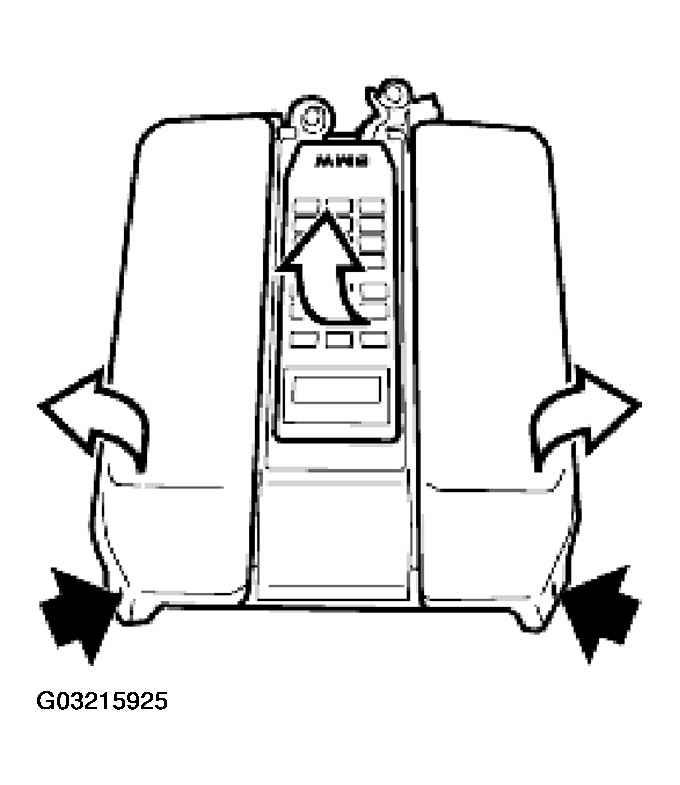

Fig 1: Removing Telephone Handset

Move center consoles (1) on left and right slightly in direction of arrow, lever out at rear in direction of arrow and remove.

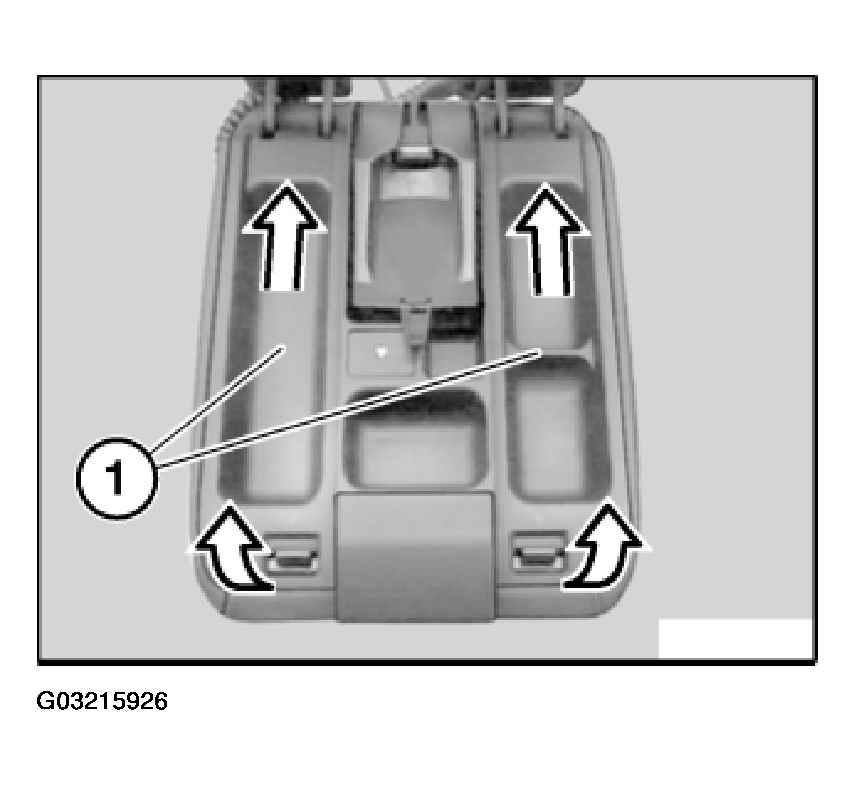

Fig 2: Moving Center Consoles

Car phone, fixed mounting:

Press together clips and remove plug.

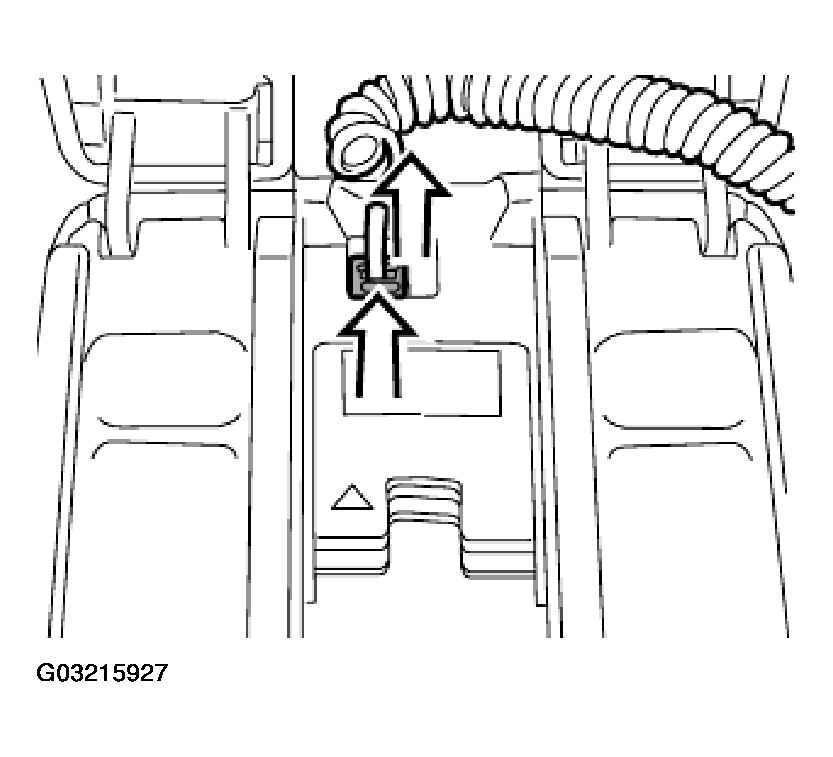

Fig 3: Removing Plug

Unfasten screws and lever out eject box.

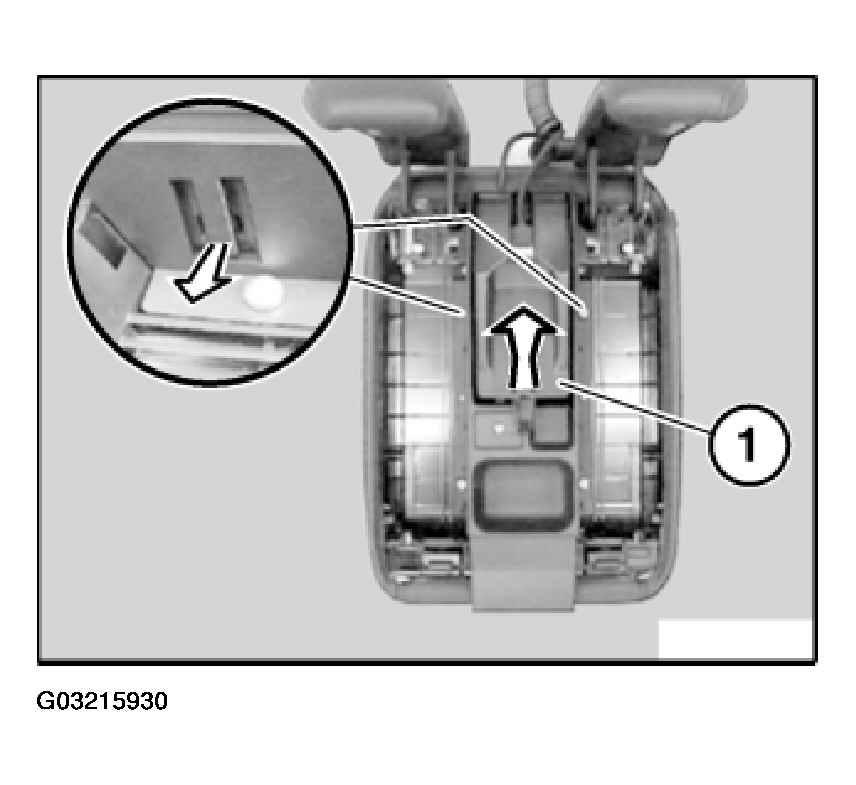

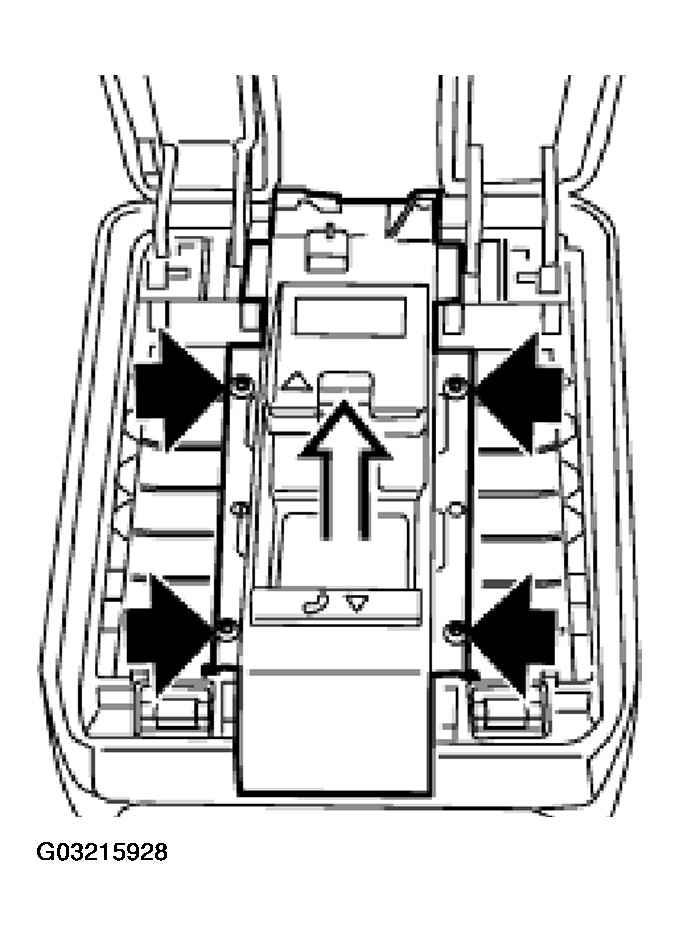

Fig 4: Removing Eject Box

Mobile phone:

Cut through cable ties (1).

Unlock plug housing (2) and unclip.

Unclip plug connection (3) and disconnect.

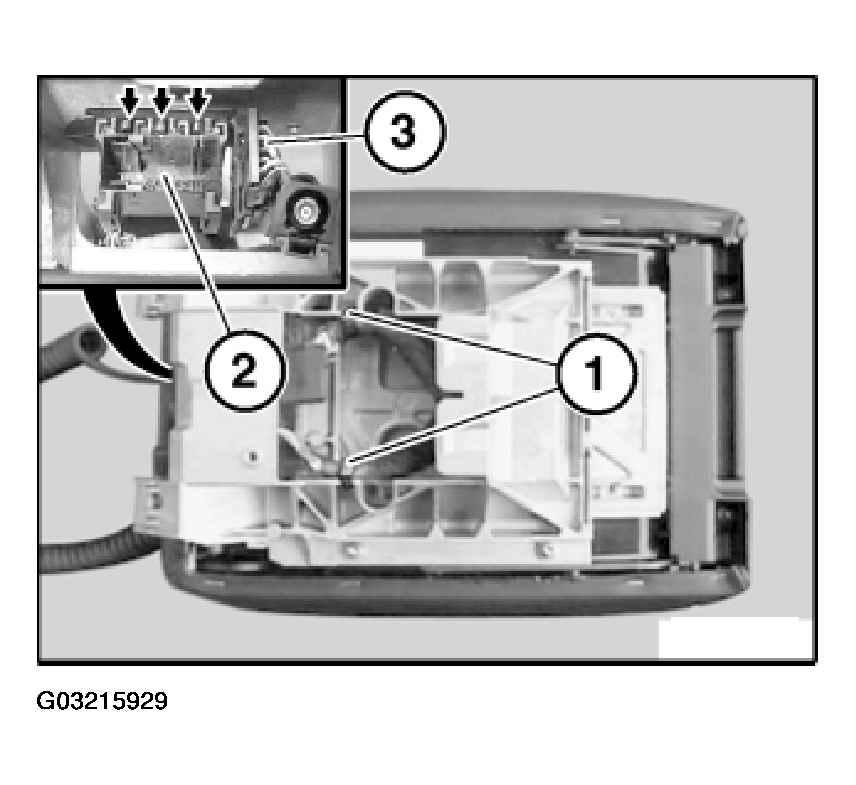

Fig 5: Unlocking Plug Housing

Unlock eject box (1) and remove in direction of arrow.

Fig 6: Removing Eject Box

Disconnect plug connection (1).

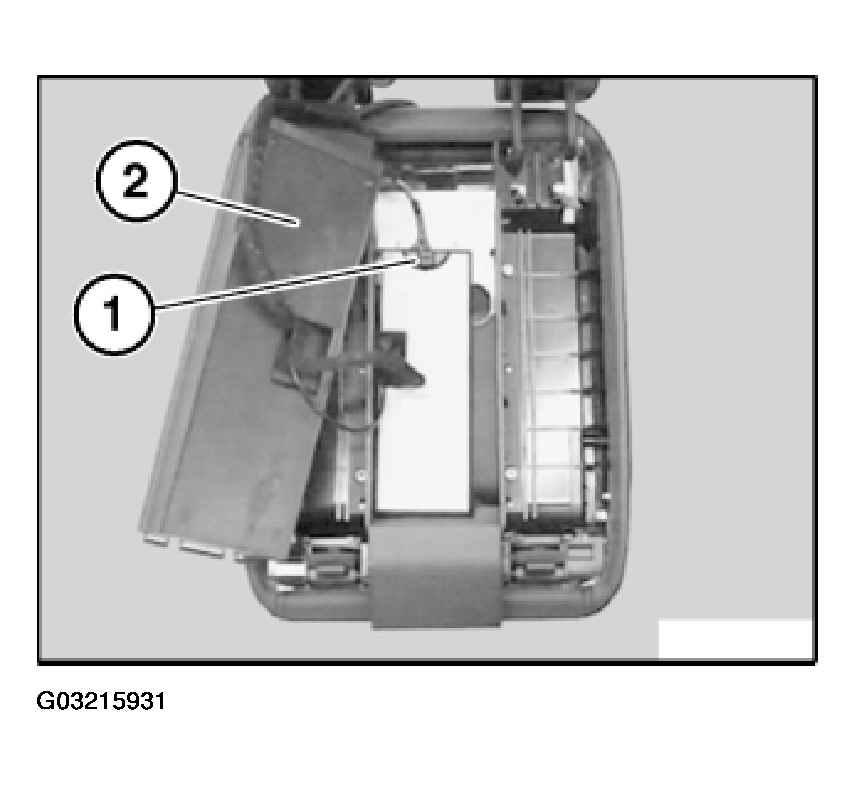

Remove eject box (2).

Fig 7: Disconnecting Plug Connection
