84 21 530 Removing and installing/replacing hands-free charging electronics
Disconnect antenna plug and plug connection on line compensator.

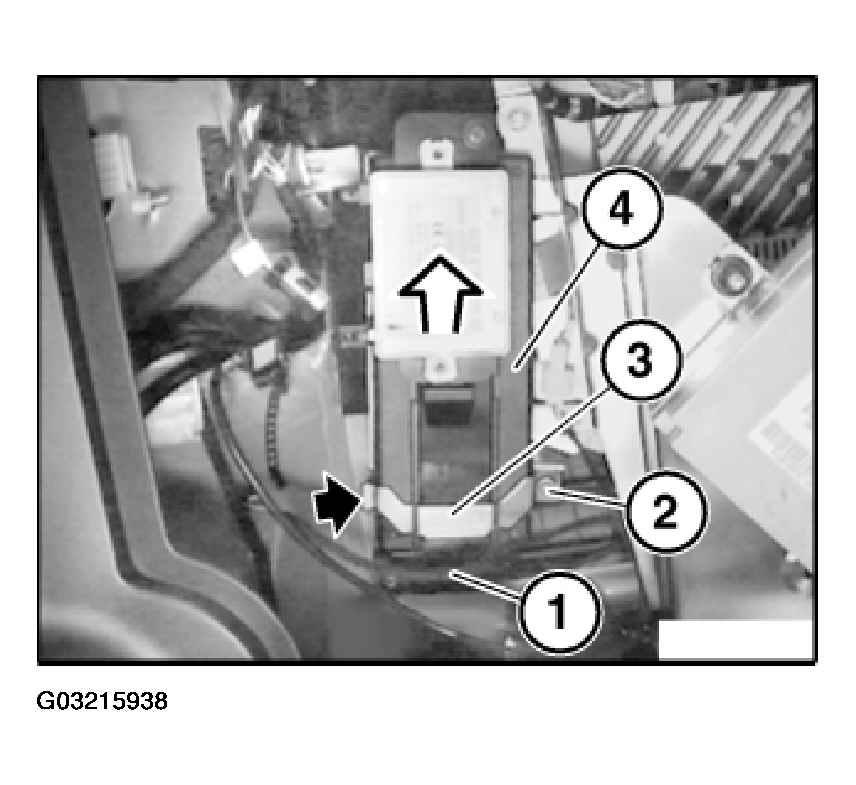

Disconnect plug connection (1).
Unscrew bolt (2).
Withdraw mounting bracket (3) from guide and remove.
Installation:
Ensure mounting bracket (3) is correctly seated.
Remove hands-free charging electronics (4) in direction of arrow.
Replacement:

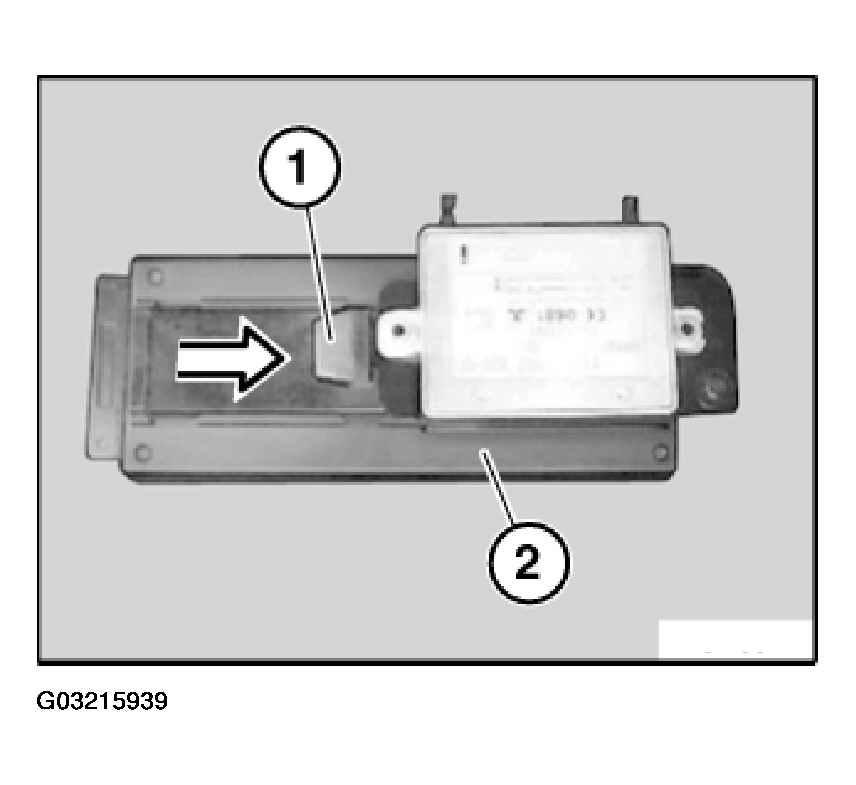

Detach holder (1) from hands-free charging electronics (2).
