84 21 520 Removing and installing/replacing line compensator (cellular phone)

Remove flap in luggage compartment trim panel on left.

Unfasten antenna plug (1) and disconnect.

Disconnect plug connection (2).

Release nut (3) slightly.

Release nut (4).

Remove line compensator (5).

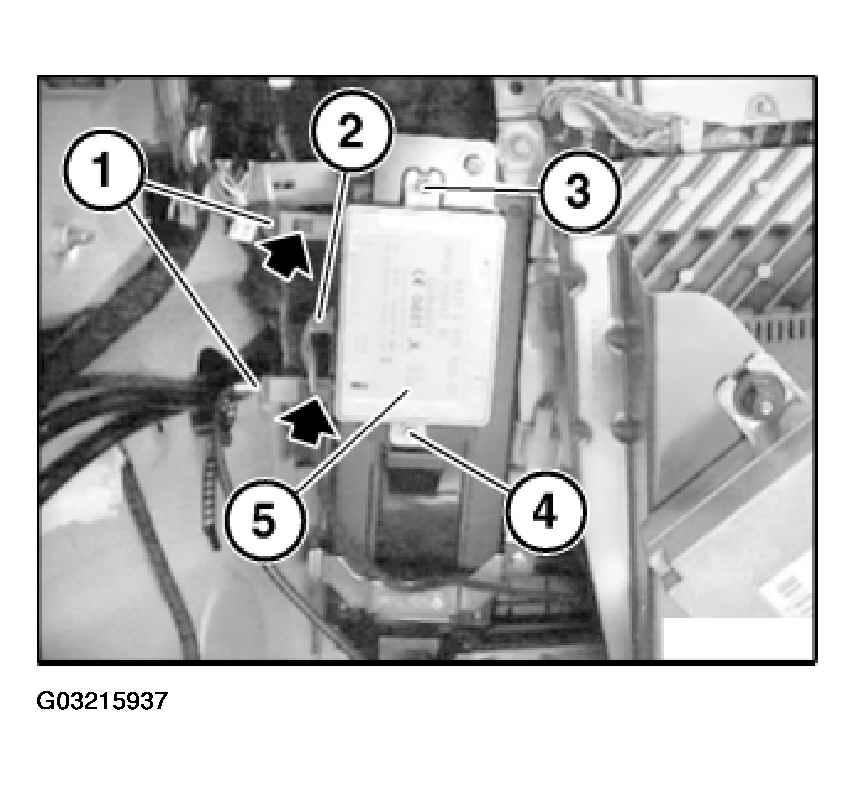

Fig 1: Removing Line Compensator
G03215937
